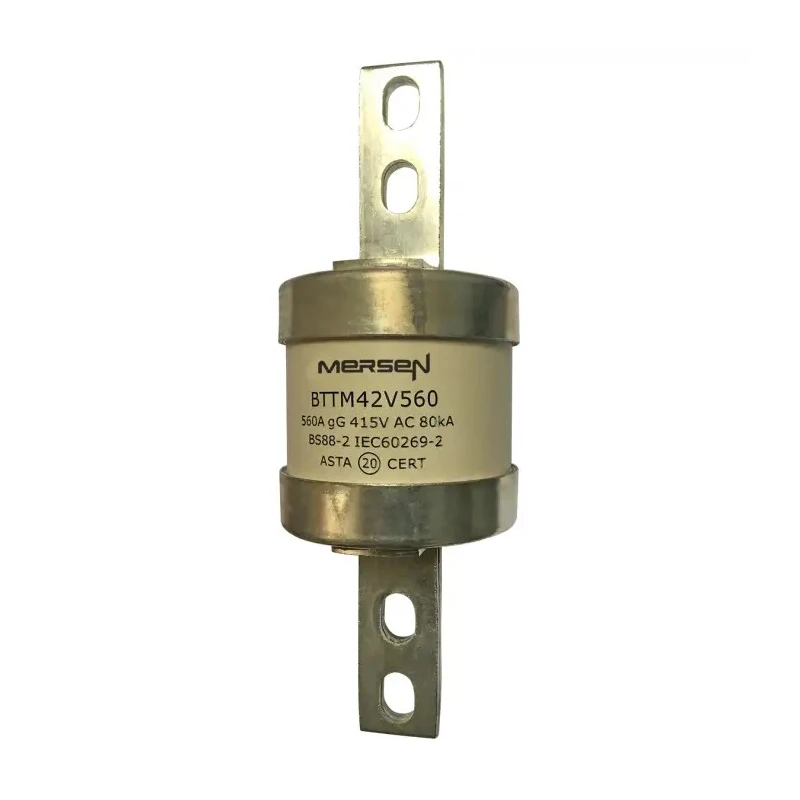

Mersen 560A Bolted Tag Fuse C2 415V AC High-Speed Central Bolted Tag Fuse-links L226330 / BTTM42V560

Name: Mersen 560A Bolted Tag Fuse C2 415V AC High-Speed Central Bolted Tag Fuse-links L226330 / BTTM42V560
Brand: Mersen
SKU: 153601



Category Tag Fuse Brand Mersen Condition New

Specifications

Country of Origin	India
Voltage	415V ac
Diameter	74.4mm
Brand	Mersen
Height	83mm
Length	83mm
Model	L226330 / BTTM42V560
Width	74.4mm
Overall Length	212mm
Current Rating	560A
Series	Central Bolted Tag Fuse-links gG 415VAC/240VDC
Standards/Approvals	RoHS, CE, REACH, EN 60269-2
Fuse Size	C2
Fixing Centres	133 mm
Tag Width	26mm
Tag Orientation	Centred

Key Features

This fuse features a 560A current rating for heavy-duty electrical protection.
Designed as high-speed fuse with F type fuse speed to safeguard circuits effectively.
Fuse size is C2, optimized for specific fuse holders or busbar mounting.
It includes fixing centres at 133 mm ensuring secure bolted installation.
Tag width measures 26 mm with a centred tag orientation for operational convenience.
Dimensionally, it has a length of 83 mm and an overall length of 212 mm accommodating industry needs.
Provides reliable protection without high rupture capacity, suitable for controlled fuse interruptions.
Manufactured to meet RoHS, CE, REACH, EN 60269-2 standards for safety and compliance.

Product Description

Mersen L226330 / BTTM42V560 bolted tag fuse is a high-quality electrical component designed for use at 415V AC with a robust current rating of 560A. This fuse serves as a crucial device for general-purpose protection (gG type) as well as motor protection (gM type), ensuring excellent current limitation against all overloads across a wide variety of industrial and commercial electrical applications.

The fuse is constructed as a high-speed fuse with an F fuse speed rating to provide rapid response in fault conditions, preventing damage to downstream equipment. It features a C2 fuse size and a central bolted tag design which allows it to be securely fastened either in fuse holders or directly onto busbars and fuse interrupter disconnectors. The fixing centres at 133 mm ensure compatibility with standard mounting accessories.

Dimensions include a length of 83 mm for the fuse body and an overall length of 212 mm, with a height and width of 83 mm and a diameter of 74.4 mm, making it suitable for various electrical panel designs. The tag width of 26 mm and a centred tag orientation facilitate easy installation and connection. This model does not have a high rupture capacity, making it a controlled and reliable fuse for safety.

Manufactured in India, this fuse complies with international standards such as RoHS, CE, REACH, and EN 60269-2, guaranteeing environmental and safety regulations adherence. This fuse is ideal for industrial, commercial, manufacturing, and electrical panel protection applications.

It ensures operational safety and circuit integrity in systems requiring 560A current protection at 415V AC. Its central bolted tag design supports direct mounting on busbars or fuse holders, enhancing installation flexibility.

Compliance with multiple safety standards assures reliability and quality in heavy electrical equipment protection. Compact physical dimensions enable integration into standard electrical infrastructure layouts. Explore the full range of Mersen Tag Fuses and related electrical protection devices at EnvMart for your industrial and commercial needs.
