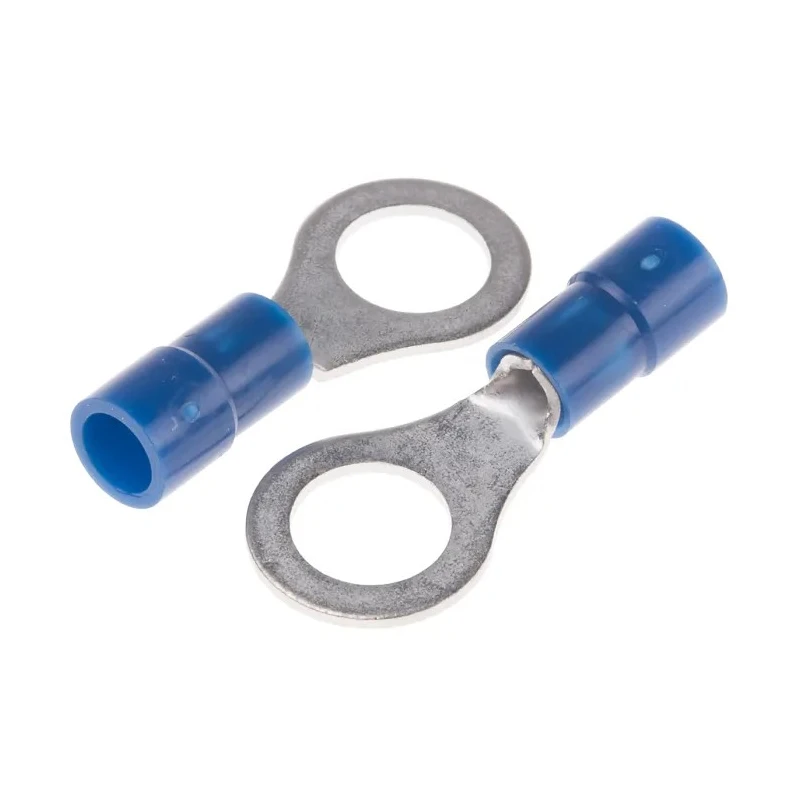

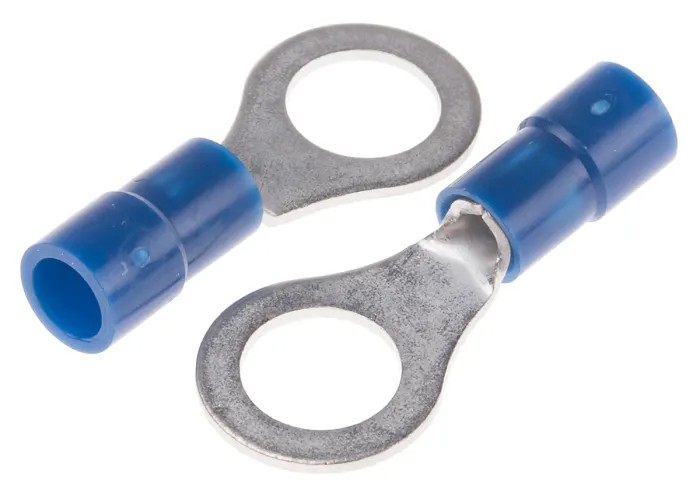

RS PRO Insulated Ring Terminal M7 Stud Size 16 AWG 14 AWG Wire Size Blue 613-9340

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Insulated Ring Terminal M7 Stud Size 16 AWG 14 AWG Wire Size Blue 613-9340

Name: RS PRO Insulated Ring Terminal M7 Stud Size 16 AWG 14 AWG Wire Size Blue 613-9340
Brand: RS PRO
SKU: 198757
Price: 0.19 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Blue
THICKNESS	0.8mm
Model	613-9340
Insulation	Insulated
Overall Length	27.8mm
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	105°C
Insulation Material	Polyvinyl Chloride
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard
Contact Plating	Tin
Minimum Wire Size mm²	1.5mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	12mm
Inner Ring Diameter	7.4mm
Stud Size	M7
Standards/Approvals RoHS, ANSI/ESD S20.20	2021 Electrostatic Control Standard
Blue M7 ring terminal,1.5-2.5sq.mm wireBrand	NEUTRAL

Key Features

Copper body provides high electrical conductivity and easy crimping.
Tin plating ensures corrosion resistance and enhanced durability.
Vinyl insulation offers electrical protection and terminal safety.
Colour-coded blue insulation aids quick terminal size identification.
Expanded insulation entry facilitates easy wire insertion.
Suitable for industrial, automotive, and communication equipment wiring.
Operates under temperature range from -40°C to 105°C.

Product Description

RS PRO 613-9340 insulated ring terminal is engineered for reliable and secure electrical connections, featuring an M7 stud suitable for wire sizes ranging from 16 AWG to 14 AWG. Constructed with a high-conductivity copper body and tin plating, this terminal delivers excellent electrical performance and corrosion resistance. The terminal includes a robust blue vinyl insulation that provides electrical safety and aids in quick size identification.

With an inner ring diameter of 7.4 mm and outer diameter of 12 mm, and overall length of 27.8 mm with a thickness of 0.8 mm, this ring terminal is designed for durability under demanding conditions. It complies with RoHS and ANSI/ESD S20.20:2021 Electrostatic Control Standard, supporting applications requiring electrostatic discharge control.

Typical applications include wiring for industrial control systems, automotive electrical connections, communication devices, power supply units, and domestic appliances. The extended insulation entry allows easier wire insertion ensuring strong mechanical and electrical bonds when crimped correctly.

Operating reliably in temperatures from -40°C to 105°C, this ring terminal ensures a safe and efficient electrical connection. Colour-coded vinyl insulation also serves for quick and easy identification, complying with industry colour standards.

Copper body material for high conductivity and easy crimping. Tin plating for resistance to corrosion, added strength and excellent conductivity. Vinyl insulation for electrical insulation and terminal protection. Colour coded insulation for easy identification of terminal size.

Expanded insulation entry for easy wire insertion. Compliant with RoHS and ANSI/ESD S20.20 for electrostatic control. Suitable for industrial, automotive, and communication equipment. Operating temperature range from -40°C to 105°C for reliability.

This RS PRO insulated Ring Terminal is manufactured in Taiwan, Province of China, and is new condition. It is suitable for professionals and industries requiring robust wire termination solutions. Explore related products in the Wire Terminals & Splices category on EnvMart.
