Burkert Proportional Solenoid Valve 2 Port NC 24V DC Stainless Steel 12.7 mm 239091
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 4 bar |
| Model | 239091 |
| Series | 2875 |
| Number Of Ports | 2 |
| Minimum Operating Temperature | 55°C |
| Orifice Diameter | 6mm |
| Supply Voltage | 24V dc |
| Standards/Approvals | ATEX, UL 429, IECEX |
| Inlet Port Size | 12.7 mm |
| Default Valve Position | NC |
| Inlet Port Gender | Female |
| Maximum Opening Time | 25ms |
| Flow Factor Kv | 0.8m³/h |
Key Features
- The valve offers a stainless steel body and female inlet and outlet ports sized 12.7 mm.
- Maximum operating pressure is 4 bar with temperature range from -55°C to +55°C.
- The 2875 Series valve uses PWM technology for smooth 0-100% flow adjustment.
- It features rapid response time of 25 ms and a flow factor Kv of 0.8 m³/h.
- Suitable for liquid and neutral gas applications requiring high accuracy control.
- Designed with IP65 protection and low hysteresis below 5% for consistent repeatability.
- Complies with ATEX, UL 429, and IECEX standards, but has no hazardous area certification.
- Ideal for industrial, laboratory, HVAC, and manufacturing fluid control systems.
Product Description
Burkert 239091 Proportional Solenoid Valve is a 2 port normally closed valve operating at 24V DC, with a robust stainless steel body and female inlet/outlet ports each sized 12.7 mm. This valve belongs to the 2875 Series, featuring direct acting operation and a globe valve principle for precise fluid control.
The valve enables continuous modulation of flow through pulse width modulation (PWM), allowing adjustment from 0 to 100 percent flow. This makes it especially suitable for demanding applications requiring fine control of liquids and neutral gases.
Operating efficiently at pressures up to 4 bar and temperatures ranging from -55°C to +55°C, the valve provides fast response times of 25 milliseconds and is continuously rated at 100% duty cycle with a power consumption of only 16 W. Its flow factor Kv is 0.8 m³/h, ensuring effective throughput.
The valve features an elastomeric seat that ensures tight sealing with less than 0.5% full scale repeatability and hysteresis less than 5%, providing superior accuracy and reliability. Protection rating to IP65 safeguards the valve against dust and water ingress.
Certified with ATEX, UL 429, and IECEX standards, it is suitable for use in varied industrial environments, although it lacks specific hazardous area certification. Its construction from stainless steel offers durability and compatibility with various fluids.
Common use cases include industrial process control, laboratory fluid handling, HVAC flow regulation, water treatment, and manufacturing systems requiring precise proportional flow control.

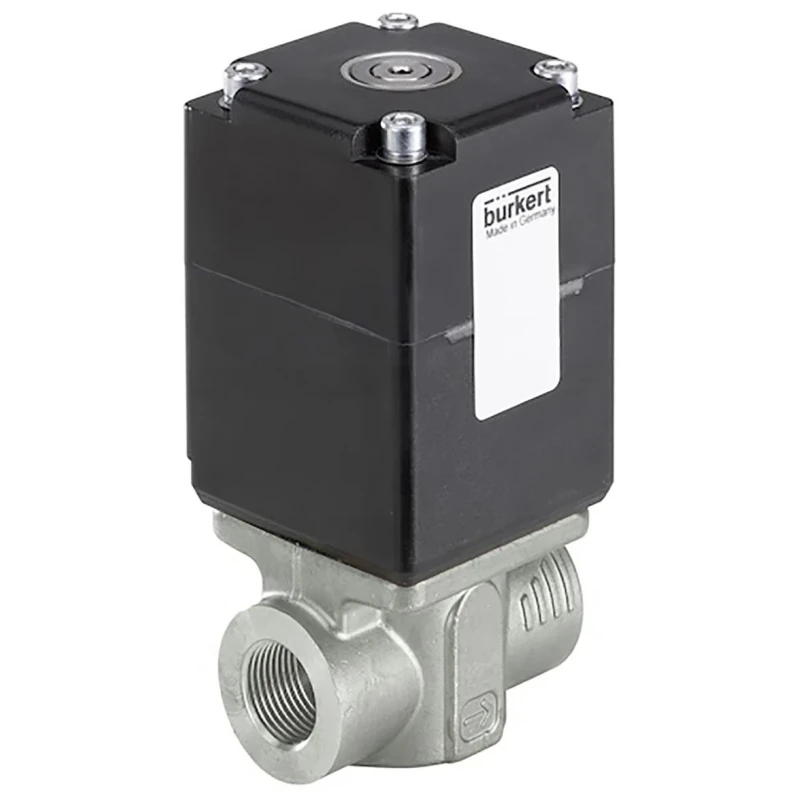

The product image depicts the compact valve with clear markings, consistent with the specifications provided. The valve has 2 ports with female inlet and outlet of 12.7 mm diameter. Operating voltage is 24V DC with normally closed default valve position.
Max operating pressure is 4 bar and temperature range is -55°C to +55°C. Flow factor Kv is 0.8 m³/h with a maximum opening time of 25 milliseconds. Stainless steel body ensures long service life and compatibility. Standards met include ATEX, UL 429, and IECEX.
The valve is designed for liquid and neutral gas applications requiring precise modulated flow. Explore more Solenoid Valves and fluid control solutions at EnvMart for your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 4 bar.
This model operates within a temperature range of -55°C to +55°C.
It features female inlet and outlet ports, each sized 12.7 mm.
The flow factor Kv for this valve is 0.8 m³/h.
The valve has a rapid response time of 25 milliseconds.
The supply voltage required for this valve is 24V DC.
It complies with ATEX, UL 429, and IECEX standards.
It is suitable for liquid and neutral gas applications requiring high accuracy control, including industrial process control and HVAC systems.
The default valve position for this model is normally closed (NC).
The valve is constructed from stainless steel, ensuring compatibility with various fluids.
The maximum opening time for this valve is 25 milliseconds.
The orifice diameter of this valve is 6 mm.
