Glenair MWDM 51 Way Straight Through Hole Micro-D Female D-Sub Connector with Jack Screw MWDM2L-51S-6E5-18B

Glenair MWDM2L-51S-6E5-18B is a robust 51 way straight through hole Micro-D female D-Sub connector featuring gold plated TwistPin contacts, capable of handling up to 3A current and operating at voltages up to 600V. The connector's housing is manufactured from Liquid Crystal Polymer providing high strength and resistance to temperatures from -55°C to 150°C, making it suitable for harsh environments.

The jack screw mounting hardware ensures secure assembly and vibration resistance in industrial and defense applications. Its nickel contact material combined with a high density 0.05 inch contact pitch optimizes electrical integrity and mechanical reliability.

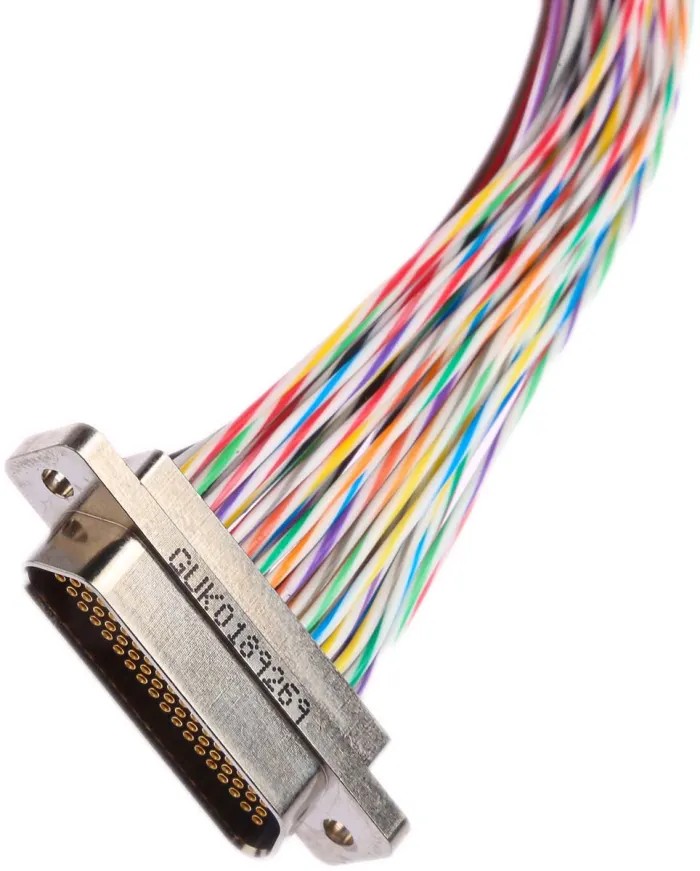

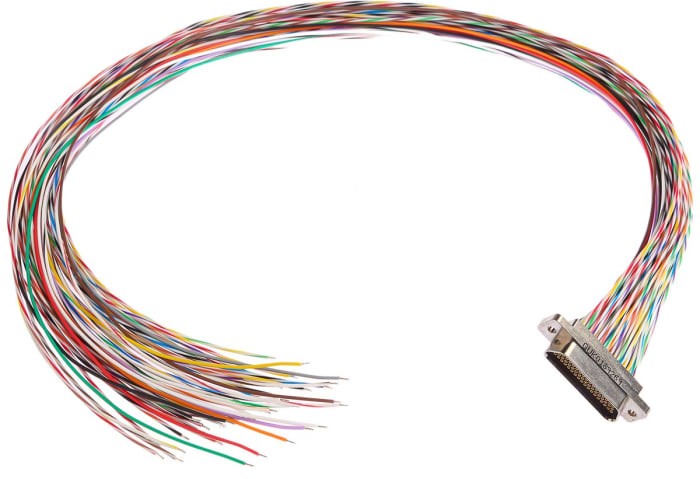

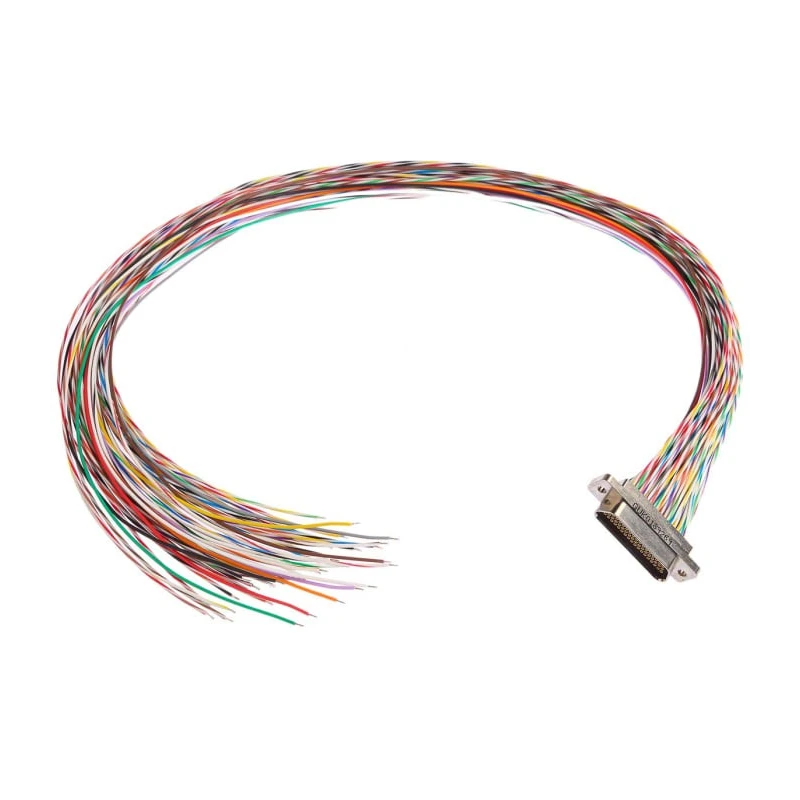

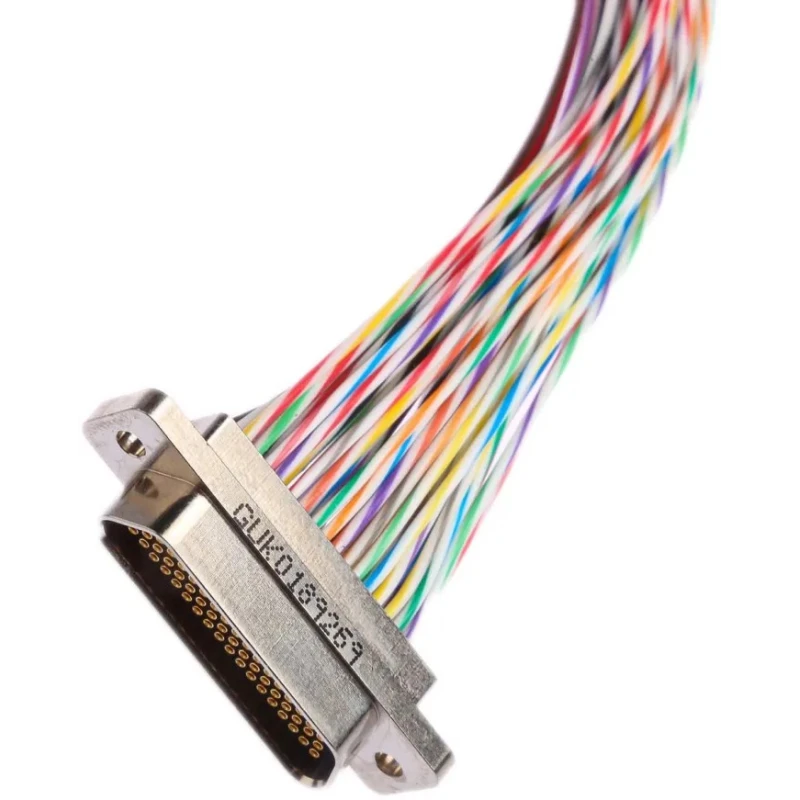

These connectors include 450mm color-coded pre-wired pigtail terminations, easing installation and integration into complex electronic systems.

MWDM series connectors serve commercial off-the-shelf (COTS) needs while maintaining military specifications, perfect for aerospace, land and sea military, telecommunications, and high-performance industrial contexts.

Straight orientation with through-hole mount. Gold plated TwistPin contacts ensure low resistance and reliable connections. Housing made from high-performance Liquid Crystal Polymer. Jack screw mounting for secure fixture.

600V operation voltage accommodated. Operating temperature range from -55°C to 150°C. 51 contact positions with nickel contact material.

This Glenair connector from the MWDM series combines reliability, durability, and high electrical performance in a compact, rugged form factor. It is an excellent choice for demanding electronic component designs requiring secure, stable connections. Browse more D-Sub Connector products on EnvMart for suitable complements and accessories.
