Glenair MWDL 9 Way Straight Through Hole Micro-D Female D-Sub Connector with Jack Screw MWDL9S-6E5-18B

The Glenair MWDL9S-6E5-18B is a 9 way straight through hole Micro-D female D-Sub Connector engineered to provide exceptional mechanical and electrical performance in extreme environments. Constructed with a high performance liquid crystal polymer housing and equipped with gold plated twist pin contacts, this connector offers outstanding reliability and signal integrity in demanding commercial, military aerospace, land, sea, industrial, and telecommunication applications.

Designed according to MIL-C-83513 standards, the connector supports a 3 Amp current rating and operates at voltages up to 600V. Its compact size features a high density .050 inch contact pitch which optimizes space on PCBs. The robust plastic shell is terminated with a plug or socket and incorporates jack screw mounting hardware to ensure secure mechanical fastening during operation and vibration conditions.

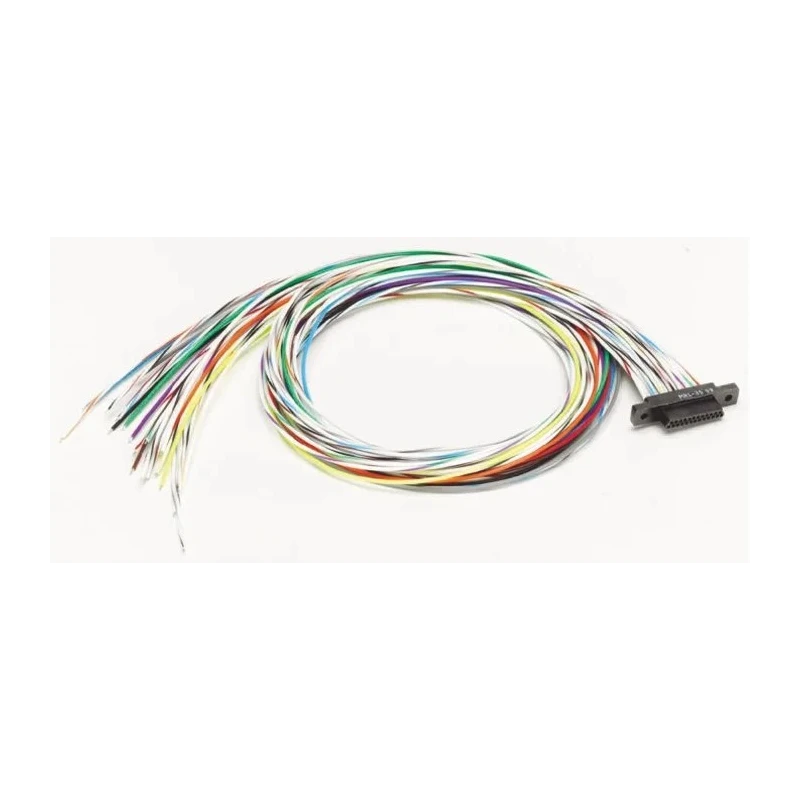

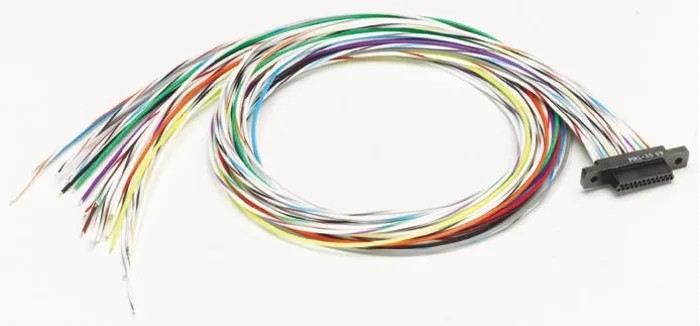

The product is compliant with RoHS and is built to withstand a wide operating temperature range from -55°C to 150°C, enhancing its usability in harsh conditions. It is supplied with 450 mm (18 inches) of color coded wiring for convenient and error-free installation. Manufactured in the United Kingdom, the MWDL series connectors continue Glenair's tradition of combining durability and electrical integrity.

Rugged liquid crystal polymer housing for high mechanical strength. Gold plated twist pin contacts for reliable electrical connection. 3 Amp contact current rating at 600V. Straight orientation with through hole mount type.

Jack screw hardware for secure panel mounting. Operating temperature -55°C to 150°C ensures versatility. Meets MIL-C-83513 military and aerospace connector standards. High density contact pitch of 0.05 inch (1.27 mm). Includes 450 mm of color coded wiring for simplified assembly.

This connector is ideal for electronic systems requiring compact, durable, and high-performance connections in industrial, laboratory, aerospace, military, and telecommunication sectors. Browse EnvMart's extensive range of Glenair connectors for complementary products and engineered connectivity solutions.
