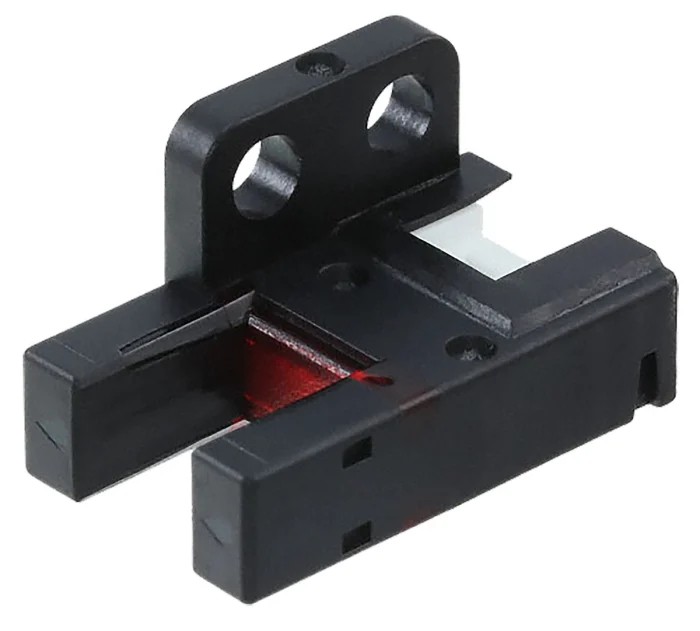

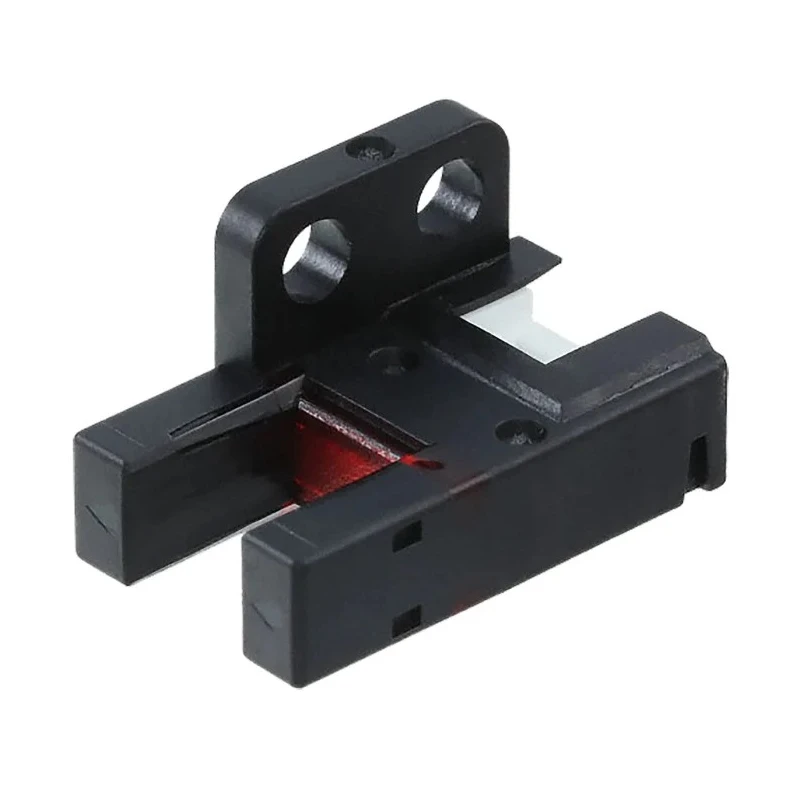

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range NPN Output IP40 PM-R65W
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-R65W |
| IP Rating | IP40 |
| Mount Type | Chassis Mount |
| Housing Material | Polycarbonate, Polybutylene Terephthalate |
| Output type | NPN |
| Series | PM-65 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | 4-Pin Connector |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- Features a compact U-shaped housing integrating emitter and receiver.
- Infrared light source allows accurate detection of opaque materials.
- 4-pin connector terminal for reliable connection.
- Reverse polarity and short circuit protections enhance durability.
- Operating temperature range from -25°C to 55°C suitable for diverse environments.
- Chassis mount type with robust polycarbonate and polybutylene terephthalate housing materials.
- Response time between 20 to 80 microseconds for fast sensing.
- Maximum DC voltage rating of 24 V and current up to 50 mA.
Product Description
Panasonic PM-R65W Through Beam Photoelectric Sensor Fork style sensor offers reliable and precise detection for automation and control applications. Operating at 24 V DC with NPN output, this sensor utilizes an infrared light source to detect opaque materials within a 6 mm detection range.
Constructed with durable polycarbonate and polybutylene terephthalate materials, the sensor housing is chassis mountable and has an IP40 ingress protection rating. It features reverse supply and output polarity protection along with output short circuit protection to ensure long service life in industrial environments.
The sensor supports operating temperatures between -25°C and 55°C and has a rapid response time ranging from 20 to 80 microseconds, making it suitable for fast-paced automation processes. Equipped with a 4-pin connector terminal, it allows for secure electrical connections.
Designed within the PM-65 series, this compact U-shaped sensor is manufactured in Japan and meets IEC standards. Its large operating indicator provides clear operational status visibility from multiple angles. Mounting is straightforward using M3 screws for a firm fit.
Compact U-shaped fork sensor integrating emitter and receiver. Infrared light source for accurate opaque material detection. 4-pin connector terminal ensures reliable wiring. Protections include reverse polarity and short circuit safeguards.
Operating temperature: -25°C to 55°C for versatile applications. Housing materials: polycarbonate and polybutylene terephthalate for durability. Response time between 20 and 80 microseconds enables quick sensing. Maximum voltage 24 V DC, current 50 mA.
IEC standard compliant, made in Japan. Chassis mount type with easy installation using M3 screws.
This Panasonic Photoelectric Sensor is ideal for industrial and automation uses including manufacturing, assembly lines, and material handling systems requiring precise object detection. Browse related automation and control components for comprehensive system design and integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 6 mm, allowing it to accurately detect opaque materials within that distance.
It features an NPN output type, which is suitable for various automation applications.
The maximum operating temperature for the PM-R65W is 55°C, making it suitable for diverse environments.
The response time of this sensor ranges from 20 to 80 microseconds, allowing for quick sensing in automation processes.
The housing is constructed from polycarbonate and polybutylene terephthalate, providing durability in industrial settings.
This model is designed for chassis mounting and can be installed using M3 screws for a secure fit.
The sensor has an IP40 ingress protection rating, indicating it is protected against solid objects larger than 1 mm.
The maximum DC voltage rating for the PM-R65W is 24 V, which is standard for many industrial applications.
It utilizes an infrared light source for the detection of opaque materials.
The operating temperature range for the PM-R65W is from -25°C to 55°C, suitable for various applications.
It is equipped with a 4-pin connector terminal, ensuring reliable electrical connections.
Yes, this sensor meets IEC standards, ensuring it adheres to international safety and performance criteria.
