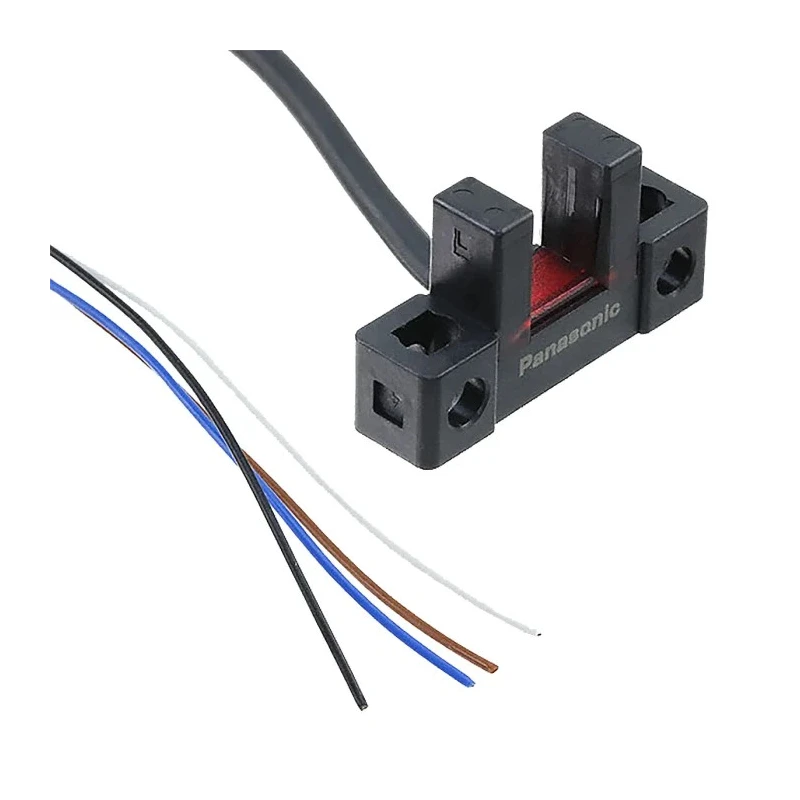

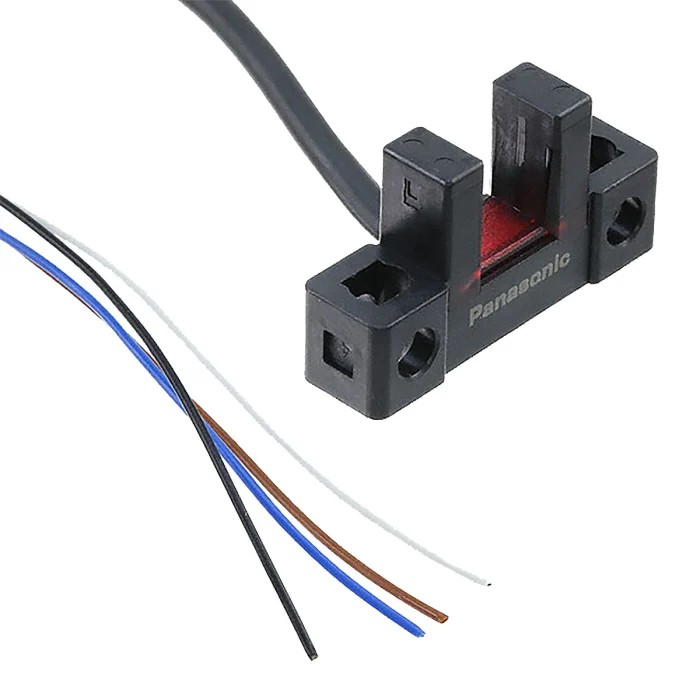

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range PNP Output IP64 Protection PM-L45-P-C3
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-L45-P-C3 |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | PNP |
| Series | PM-45 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- Fork-style sensor designed for precise through beam detection within 6 mm range.
- Equipped with PNP output type ensuring reliable signal integration.
- IP64 rated housing offers protection against dust ingress and water splashes.
- Operates with a maximum DC voltage of 24V dc suitable for control systems.
- Constructed from durable Polybutylene Terephthalate and Polycarbonate materials for robustness.
- Operating temperature range from -25°C to 55°C accommodates varied ambient environments.
- Includes reverse supply and output polarity protection for enhanced durability.
- Fast response time of 20 to 80 microseconds for rapid detection tasks.
Product Description
Panasonic PM-L45-P-C3 is a through beam photoelectric sensor designed in a compact fork style suitable for precise industrial sensing applications. This sensor provides a 6 mm detection range and is configured with PNP output, allowing seamless integration into automation and control systems.
The housing is made from high-quality Polybutylene Terephthalate and Polycarbonate, ensuring resistance to vibration and impact. The IP64 rating guarantees protection against dust particles and water splashes, making it well-suited for demanding environments.
Operating within a temperature range of -25°C to 55°C, this sensor performs reliably across various industrial scenarios including manufacturing, automation controls, packaging, and material handling.
This PM-45 series sensor protects itself against reverse supply polarity and output polarity, and includes short circuit protection to prevent damage during installation or operation. Mounting is straightforward with chassis mount support and M3 screw compatibility.
Infrared light source emission allows for accurate detection of opaque materials, optimizing performance in object presence detection and positioning applications. The quick response time of 20 to 80 microseconds supports fast process control and monitoring.
Fork-style sensor design. 6 mm detection range. PNP output type for signal integration. IP64 protection against dust and water. 24V DC maximum operating voltage. Durable Polybutylene Terephthalate and Polycarbonate housing.
Temperature range from -25 to 55 degrees Celsius. Protective features include reverse polarity and short circuit protection. Chassis mount with M3 screws for easy installation. Effective for opaque material detection.
This Panasonic Photoelectric Sensor is ideal for industrial applications requiring precise, reliable object detection under challenging conditions. Explore EnvMart's broad range of sensors and photoelectric devices for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a detection range of 6 mm, designed for precise through beam detection.
It features a PNP output type, which allows for reliable signal integration into control systems.
The sensor has an IP64 rating, providing protection against dust ingress and water splashes.
The maximum operating voltage for this unit is 24V DC, suitable for various control systems.
It is effective for detecting opaque materials, optimizing its performance in object presence detection applications.
This sensor has a fast response time ranging from 20 to 80 microseconds, supporting rapid detection tasks.
The operating temperature range is from -25°C to 55°C, accommodating various ambient environments.
The housing is constructed from Polybutylene Terephthalate and Polycarbonate, ensuring robustness.
It features a chassis mount design compatible with M3 screws for straightforward installation.
It includes reverse supply and output polarity protection, as well as short circuit protection to prevent damage during operation.
The sensor uses an infrared light source for accurate detection of objects.
This model complies with IEC standards, ensuring it meets industry requirements.
