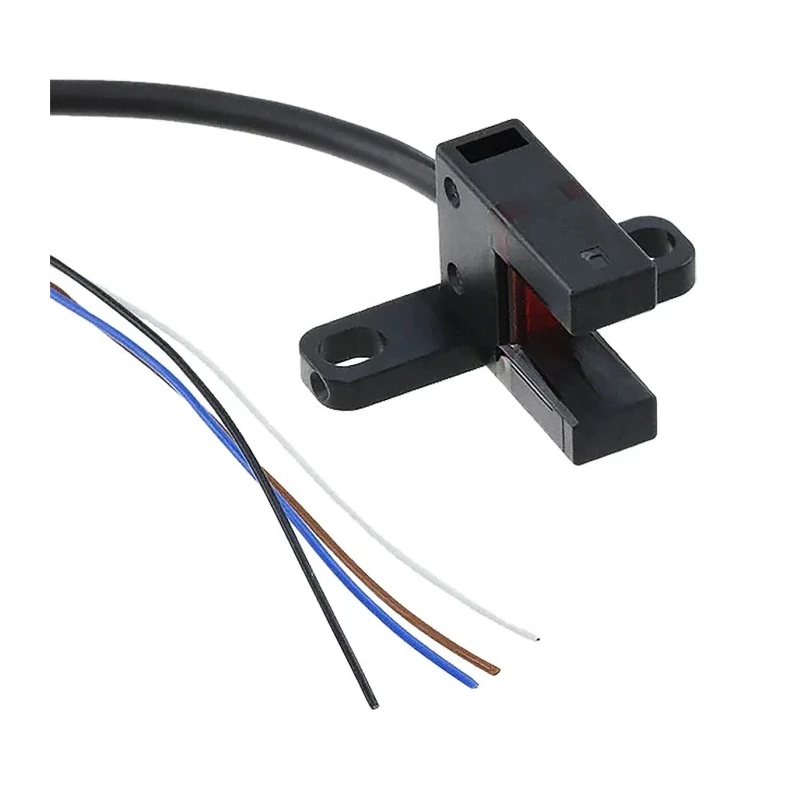

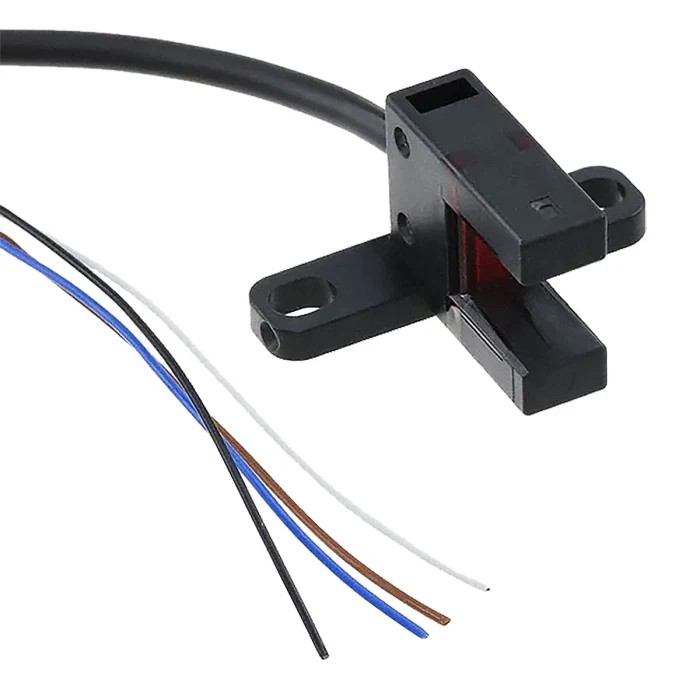

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range PNP Output IP64 PM-T45-P
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-T45-P |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polycarbonate, Polybutylene Terephthalate |
| Output type | PNP |
| Series | PM-45 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- Compact U-shaped fork style sensor with through beam detection type.
- PNP output type with cable terminal for easy integration.
- Maximum DC voltage rating of 24V DC ensuring low voltage operation.
- Durable polycarbonate and polybutylene terephthalate housing for robust industrial use.
- IP64 rated for protection against dust ingress and water splashes.
- Operating temperature range from -25°C to 55°C for varied environments.
- Detection range of 6 mm suitable for precise object detection.
- Response time between 20 and 80 microseconds for fast switching.
Product Description
Panasonic PM-T45-P is a through beam photoelectric sensor designed in a compact U-shaped fork style for industrial automation and control applications. This sensor features a 6 mm detection range with PNP output and an IP64 ingress protection rating, suitable for harsh environments.
The sensor uses infrared light as its light source and operates with a maximum DC voltage of 24V, while providing a maximum current of 50 mA. Its robust polycarbonate and polybutylene terephthalate housing offers excellent durability and resistance to vibrations and impacts, making it ideal for manufacturing, laboratory, automation, and HVAC systems.
Designed with easy mounting in mind, the chassis mount PM-T45-P attaches securely using M3 screws. It includes protective features such as reverse supply polarity protection, reverse output polarity protection, and output short circuit protection to ensure reliable operation.
The sensor works within an operating temperature range of -25°C to 55°C and complies with IEC standards. Its fast response time between 20 to 80 microseconds enables high-speed detection suitable for various industrial processes.
Applications include object detection, position sensing, assembly line automation, and other industrial and commercial uses requiring precise, reliable sensing with a compact form factor.
Compact U-shaped fork style sensor with through beam detection type. PNP output type with cable terminal for easy integration. Maximum DC voltage rating of 24V DC ensuring low voltage operation. Durable polycarbonate and polybutylene terephthalate housing for robust industrial use.
IP64 rated for protection against dust ingress and water splashes. Operating temperature range from -25°C to 55°C for varied environments. Detection range of 6 mm suitable for precise object detection. Response time between 20 and 80 microseconds for fast switching.
Features reverse supply and output polarity protection plus output short circuit protection. Chassis mount type design with easy mounting using M3 screws. Explore more Photoelectric Sensors and industrial automation components at EnvMart to suit your manufacturing or laboratory control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 6 mm, suitable for precise object detection.
This model features a PNP output type, allowing for easy integration with various systems.
The maximum DC voltage rating for the PM-T45-P is 24V DC, ensuring low voltage operation.
The response time of this unit ranges between 20 to 80 microseconds, enabling fast switching.
This sensor has an IP64 rating, providing protection against dust ingress and water splashes.
The PM-T45-P sensor is designed to detect opaque materials.
The operating temperature range is from -25°C to 55°C, making it suitable for varied environments.
This model features a chassis mount design and can be securely attached using M3 screws.
The housing is made from polycarbonate and polybutylene terephthalate, providing durability for industrial use.
This sensor uses infrared light as its light source for detection.
It includes reverse supply polarity protection, reverse output polarity protection, and output short circuit protection to ensure reliable operation.
This sensor complies with IEC standards, ensuring it meets industry requirements.
