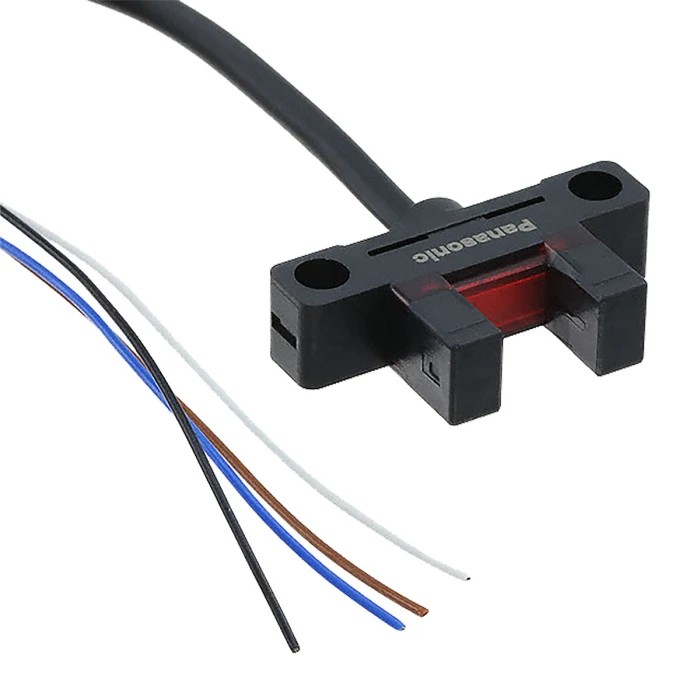

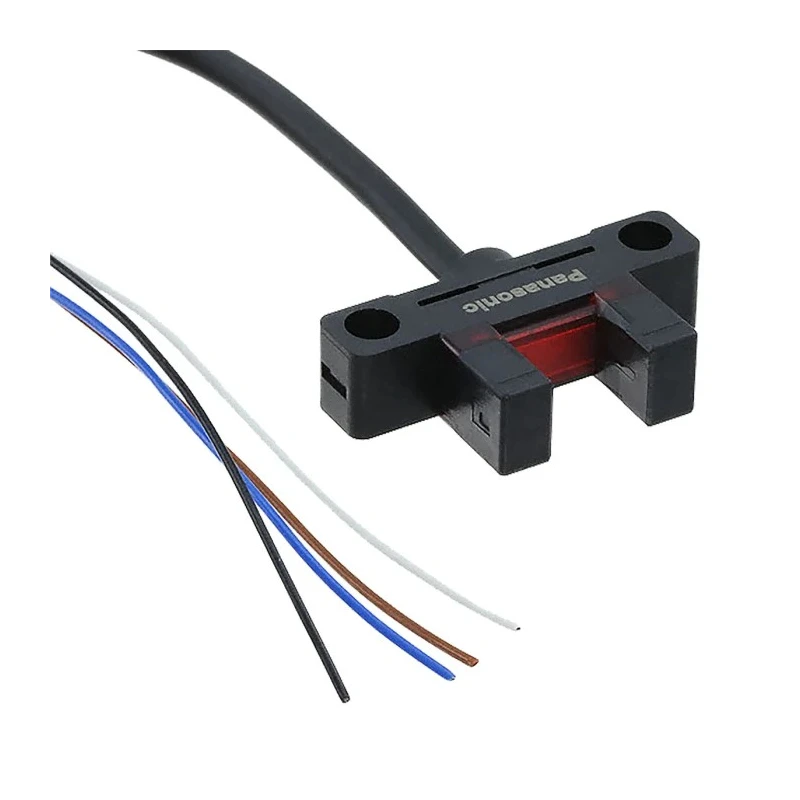

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range NPN Output IP64 PM-K25

Panasonic PM-K25 Through Beam Photoelectric Sensor is a compact fork style sensor designed for precise detection in industrial automation and control applications. Featuring a 6 mm detection range and NPN output, it provides reliable sensing performance for opaque materials using an infrared light source. The sensor is rated IP64, offering dust tight and splash protection suitable for harsh environments.

The sensor housing is made from durable polybutylene terephthalate and polycarbonate materials, ensuring resistance against mechanical stress and environmental factors. Its design supports chassis mounting using standard M2 and M3 screws, allowing straightforward installation in various equipment setups.

With a maximum DC operating voltage of 24V and maximum current of 50mA, the PM-K25 sensor operates efficiently across a temperature range from -25°C to 55°C. Additionally, it incorporates reverse supply polarity protection, reverse output polarity protection, and output short circuit protection features, significantly enhancing operational reliability and protection against electrical faults.

This ultra-small U-shaped sensor integrates the emitter and receiver within a single housing, simplifying alignment and reducing installation time. A large operating indicator is included, visible from multiple angles to facilitate easy status monitoring during operation.

Industrial sectors such as manufacturing automation, robotics, packaging machinery, and process control benefit from the sensor's precise detection capabilities. Its robust housing and protective features enable dependable performance in laboratory, construction, and environmental monitoring applications.

Accurate through beam detection with a 6 mm sensing range. Fork sensor style allows easy alignment and installation. NPN output type for compatibility with industrial control systems. Ingress protection IP64 ensures dust and splash resistance.

Operates on a maximum DC voltage of 24V. Infrared light source enables reliable sensing of opaque materials. Wide operating temperature range from -25°C to 55°C. Housing constructed from polybutylene terephthalate and polycarbonate for durability.

Chassis mount facilitates secure fitting with M2/M3 screws. Reverse polarity and short circuit protection for robust operation.

Set yourself up with a trusted sensing solution suitable for control gear and sensor systems. Explore Panasonic sensor products for enhanced automation and control equipment at EnvMart.
