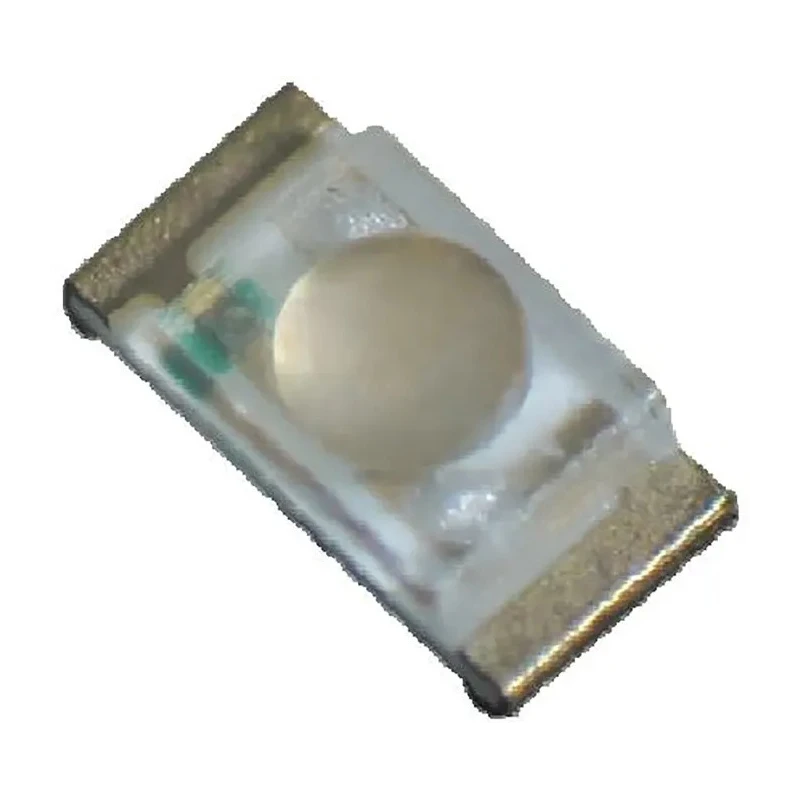

Kingbright 2.8 V Red LED 0603 Surface Mount Chip KPHD-1608SECK-J3-PRV

Kingbright KPHD-1608SECK-J3-PRV is a high-quality red LED chip in the industry standard 0603 (1608) surface mount package, with a low profile height of 0.65 mm. Operating at a forward voltage of 2.8 V, this LED offers reliable performance and low power consumption, ideal for precision applications.

The LED emits red light at a dominant wavelength of 625nm, with a brightness of 600 mcd. Its dome-shaped clear lens design allows a wide 120-degree viewing angle, providing excellent visibility and optical efficiency. The compact 1.6 x 0.8 mm footprint ensures easy integration into dense circuit boards.

Rated for a maximum forward current of 150 mA and power dissipation up to 84 mW, this LED chip is suitable for a wide range of electronic devices requiring indicator lighting or display backlighting. It is surface-mounted with a 2-pin configuration and packaged on tape and reel to facilitate automated PCB assembly processes.

This product is RoHS compliant, ensuring environmentally responsible manufacturing. It is not designed for automotive standards but serves well in general industrial, commercial, and consumer electronics applications.

Typical use cases include optical indicators in instrumentation, status indicators in industrial control panels, and backlighting for displays in consumer electronics. The small size and robust performance make it an excellent choice for high-density circuit board designs.

Available in bulk and supplied in tape and reel packaging, it is optimized for volume production environments and improves manufacturing efficiency. This LED features a 2.8 V forward voltage ensuring efficient power consumption.

It emits red light with a dominant wavelength of 625nm and a luminosity of 600 mcd. The 0603 package type offers a compact form factor with 1.6 x 0.8 x 0.65 mm dimensions. Designed for surface mounting with a dome-shaped clear lens delivering a 120° viewing angle.

Maximum forward current is rated at 150mA with a power dissipation of 84mW. RoHS compliant, suitable for optical indicators and display backlighting. The 2-pin LED has a tape and reel packaging suited for automated assembly.

Originating from China, it meets industry standards without automotive certification. Explore more Kingbright LED components and industrial electronic parts at EnvMart to find compatible lighting solutions for your projects.
