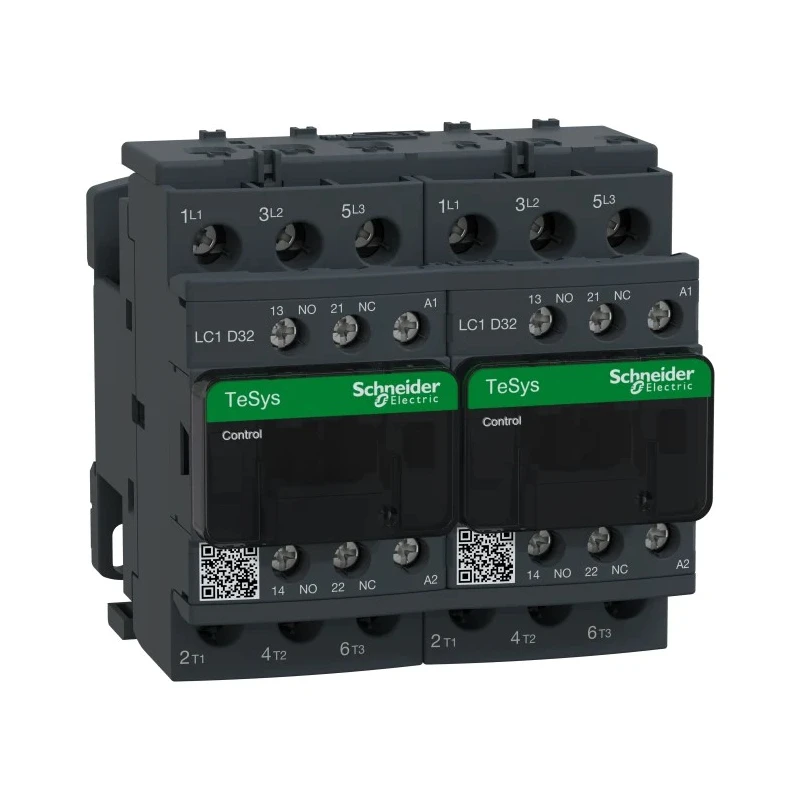

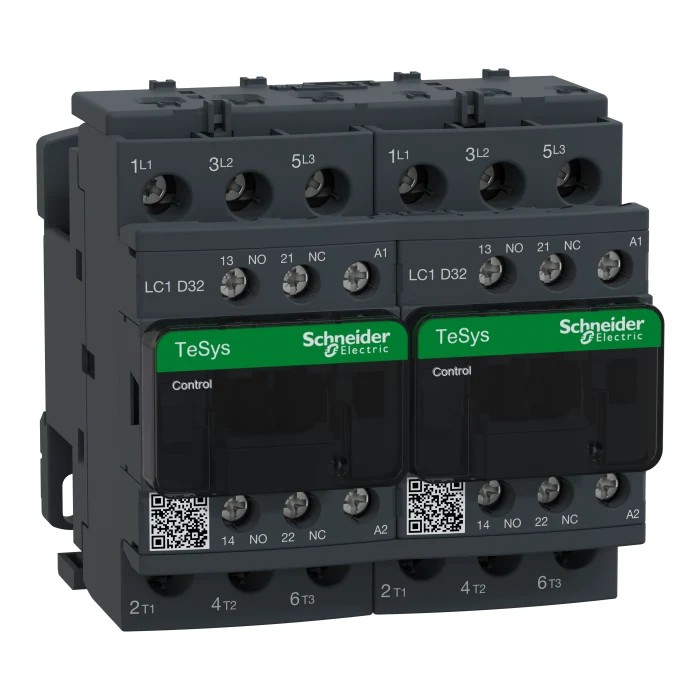

Schneider Electric 24V ac Coil, 3-Pole, 32 A, 15 kW Motor Control Reversing Contactor LC2D32B7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 85mm |
| Model | LC2D32B7 |
| Depth | 92mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 normally open (NO) contacts for efficient power switching.
- Designed for motor control, resistive load, and reversing operations.
- Supports a control circuit voltage of 24V ac for versatile interface options.
- Includes 2 auxiliary contacts configured as 2 NO/2 NC for added control functionalities.
- Features screw terminals with IP20 finger-safe protection and international markings.
- Operates over a temperature range of -25°C to 50°C for reliable performance in diverse environments.
- Certified to international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
- Manufactured in France with a focus on sustainability and designed for disassembly.
Product Description
Schneider Electric LC2D32B7 is a 3-pole reversing contactor designed specifically for motor control and resistive load applications, featuring a 24V ac coil and operational current rating of 32A. This 15 kW rated power contactor supports reliable and efficient switching with three normally open (NO) contacts and dual auxiliary contacts configured as 2 NO/2 NC, enabling enhanced switching capabilities. It is suitable for industrial, manufacturing, HVAC, and automation applications where precise motor control is essential.
The contactor includes pre-installed interlocks ensuring only one contactor is closed at a time for safe reversing operations. Its screw terminals offer IP20 finger-safe protection, marked for both North American and international standards, facilitating secure electrical connections. Mounting options include panel screws or DIN rail installation, providing versatile setup methods.
Operating temperature ranges from -25°C to 50°C, making it adaptable to varied working environments. Compliance with multiple international standards such as CCC, CSA, EAC, IEC, RoHS, and UL assures high safety and quality benchmarks. The compact dimensions (Width 90mm, Length 85mm, Depth 92mm) optimize space usage in control panels.
The LC2D series exemplifies Schneider Electric’s commitment to sustainable industrial solutions, with features designed for disassembly and recycling. This contactor is well suited for industrial automation, manufacturing plants, water treatment systems, HVAC installations, and agricultural machinery requiring reliable motor switching and control.
Equipped with 3 normally open (NO) contacts for efficient power switching. Flexible control circuit supporting 24V ac coil voltage. Pre-installed mechanical interlock for safe reversing control. Screw connections with IP20 finger-safe terminals.
Complies with international electrical standards ensuring safety. Wide operating temperature range from -25°C to 50°C. Compact DIN rail mountable design. Manufactured in France with sustainable design practices. Includes 2 auxiliary contacts for additional switching needs.
Explore a wide range of high-quality Contactors and automation components on EnvMart to enhance your electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D32B7 contactor has a power rating of 15 kW.
This model has an operational current rating of 32A.
The coil voltage for this contactor is 24V ac.
The LC2D32B7 contactor is a 3-pole device.
It features screw terminals with IP20 finger-safe protection and international markings.
The contactor operates over a temperature range of -25°C to 50°C.
The dimensions are 85mm in length, 90mm in width, and 92mm in depth.
It is suitable for motor control, resistive load applications, and reversing operations in industrial automation, manufacturing, HVAC, and agricultural machinery.
This model can be mounted using panel screws or on a DIN rail.
It complies with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
The contactor includes 2 auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC).
It includes pre-installed mechanical interlocks to ensure that only one contactor is closed at a time for safe reversing operations.
