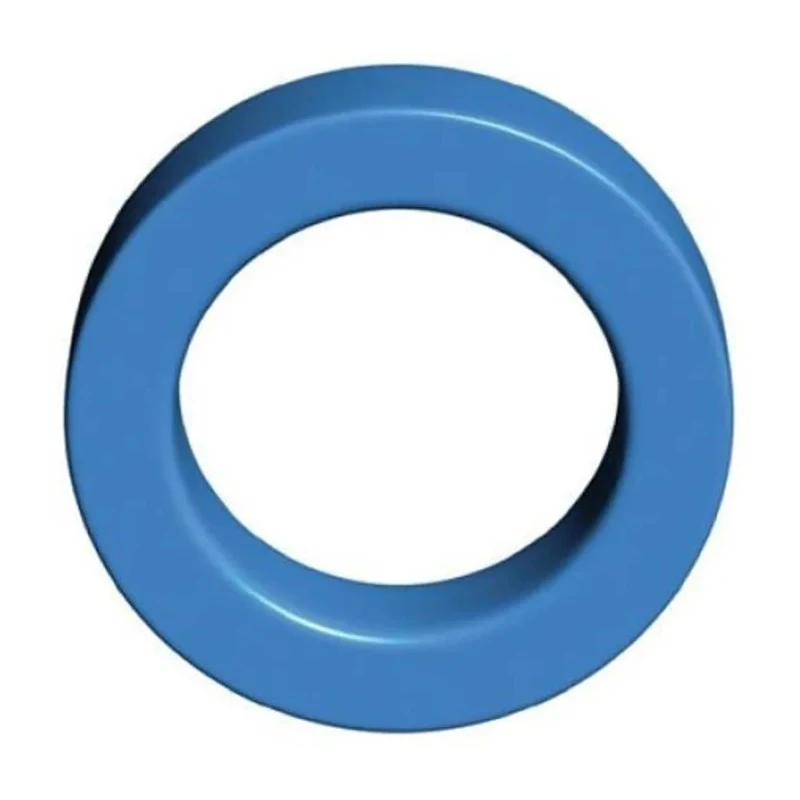

TDK Ferrite Ring Toroid Core 8.1 mm Height, 8.95 mm Inside Diameter, 21.2 mm Outside Diameter B64290L0632X830

Free Delivery in India | Lowest Global Shipping Charges

TDK Ferrite Ring Toroid Core 8.1 mm Height, 8.95 mm Inside Diameter, 21.2 mm Outside Diameter B64290L0632X830



Category Ferrite Ring Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Material	N30
Height	8.1mm
Model	B64290L0632X830
Outside diameter	21.2mm
Sub Type	Toroid Core
Inside Diameter	8.95mm
Standards/Approvals	RoHS
TDK Ferrite Ring Toroid Core 8.1 mm, For	Emc Component, General Electronics, Automotive Electronics 8.95 mm ID 21.2 mm

Key Features

Constructed from N30 ferrite material ensuring magnetic efficiency.
Inside diameter of 8.95 mm fits specific coil dimensions.
Outside diameter of 21.2 mm provides structural stability.
Complies with RoHS standards for environmental safety.
Suitable for use in chokes, baluns, pulse transformers, and broadband transformers.
Coated with polyamide or epoxy resin for insulation and edge protection.
Ideal for applications in automotive and general electronics EMC filtering.

Product Description

TDK B64290L0632X830 Ferrite Ring Toroid Core is a high-quality passive electronic component tailored for electromagnetic compatibility (EMC) applications, general and automotive electronics. This toroidal core features a height of 8.1 mm, an inside diameter of 8.95 mm, and an outside diameter of 21.2 mm, making it suitable for precise coil winding and magnetic circuit designs.

Manufactured from N30 ferrite material, this core provides excellent magnetic properties essential for EMC components such as chokes and broadband transformers. The ring is coated with durable polyamide or epoxy resin, ensuring proper insulation and mechanical protection against edge damage during assembly and operation.

The product complies with RoHS environmental standards, supporting sustainable electronics manufacturing practices. Its application versatility includes use in chokes, baluns, pulse transformers, and broadband transformers for automotive and general-purpose electronic devices.

The compact dimensions allow integration into tight circuit layouts while maintaining performance. These ferrite cores improve signal integrity by filtering electromagnetic interference effectively.

Constructed from N30 ferrite material ensuring magnetic efficiency. Height measures exactly 8.1 mm for compact core applications. Inside diameter of 8.95 mm fits specific coil dimensions. Outside diameter of 21.2 mm provides structural stability.

Complies with RoHS standards for environmental safety. Suitable for use in chokes, baluns, pulse transformers, and broadband transformers. Coated with polyamide or epoxy resin for insulation and edge protection. Ideal for applications in automotive and general electronics EMC filtering.

TDK products like this Ferrite Ring core are trusted for reliability and performance in industrial, automotive, and electronics manufacturing sectors. Explore more TDK electronic components and passive parts at EnvMart.
