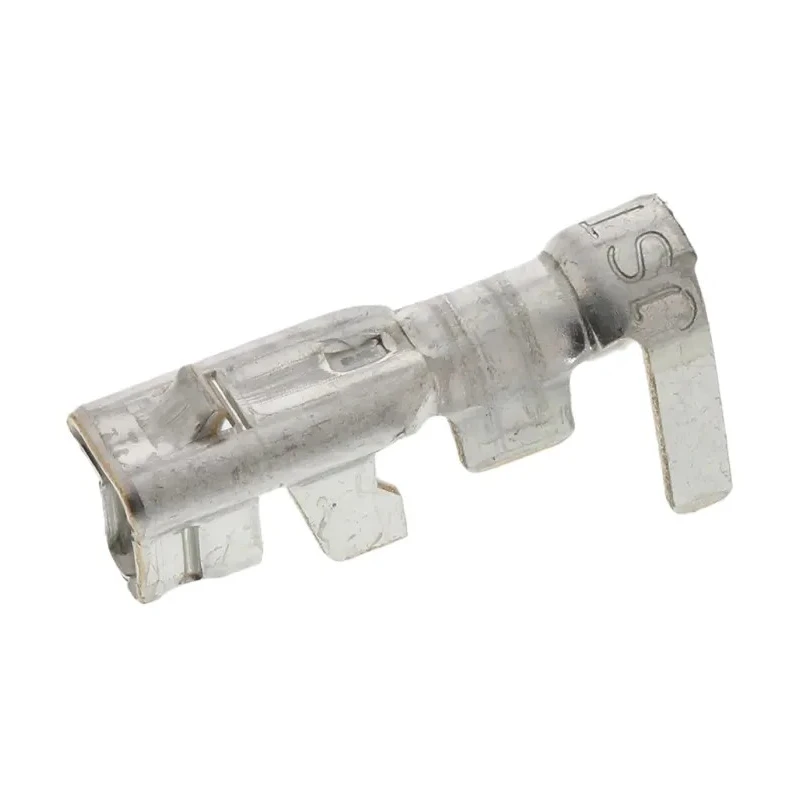

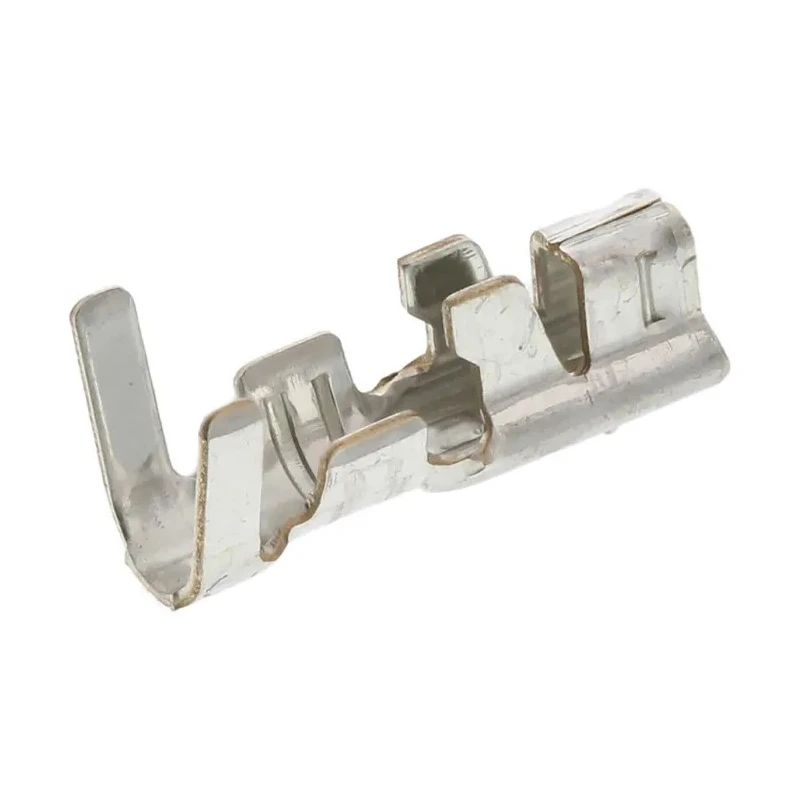

JST XA, XAD, XM, XMA Series Female Crimp Terminal 28 AWG Min Crimp 22 AWG Max Current 3A Phosphor Bronze Tin BXA-001T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

JST XA, XAD, XM, XMA Series Female Crimp Terminal 28 AWG Min Crimp 22 AWG Max Current 3A Phosphor Bronze Tin BXA-001T-P0.6



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Current	3A
Model	BXA-001T-P0.6
Gender	Female
Contact Material	Phosphor Bronze
Series	XA, XAD, XM, XMA
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	XM and XMA Connector Housings, XAD, XA
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed from phosphor bronze for durability and reliable conductivity.
Features tin plating to ensure corrosion resistance and consistent contact quality.
Designed for use with XM and XMA connector housings and compatible with XAD and XA series.
Capable of handling a maximum contact resistance of 10 milliohms for efficient signal transmission.
Suitable for operating temperatures ranging from -25°C to 85°C for versatile environmental use.
Termination type is crimp, enabling secure and reliable wire connections.
Compliant with no specific standards or approvals; country of origin is Japan.

Product Description

JST BXA-001T-P0.6 Female Crimp Terminal is engineered for electronic and electrical connector applications demanding reliable and durable wire-to-wire connections. It is compatible with JST's XA, XAD, XM, and XMA series connector housings, facilitating robust connections for wires ranging from 28 AWG to 22 AWG sizes.

Manufactured from phosphor bronze, this terminal exhibits excellent strength and conductivity. The tin plating enhances corrosion resistance and ensures stable electrical contact performance over time.

This crimp terminal supports a continuous current rating of 3 amperes and offers a maximum contact resistance of 10 milliohms, meeting the requirements of various industrial and electronic circuits. Its operating temperature range from -25°C to 85°C makes it suitable for a broad range of environmental conditions.

The crimp termination design ensures secure attachment to wires, providing consistent electrical and mechanical performance. While no specific certification standards are indicated, the terminal's design and materials are typical for reliable electronic component interconnections.

Ideal for use in industrial automation systems, electronic device manufacturing, telecommunications, and electrical wiring projects, the JST XA Series female crimp terminal guarantees dependable signal integrity and mechanical stability.

Constructed from phosphor bronze for durability and reliable conductivity. Features tin plating to ensure corrosion resistance and consistent contact quality. Designed for use with XM and XMA connector housings and compatible with XAD and XA series.

Capable of handling a maximum contact resistance of 10 milliohms for efficient signal transmission. Suitable for operating temperatures ranging from -25°C to 85°C for versatile environmental use. Termination type is crimp, enabling secure and reliable wire connections.

Compliant with no specific standards or approvals; country of origin is Japan. Browsing JST components on EnvMart will help find complementary connector housings and related accessories ideal for your projects.
