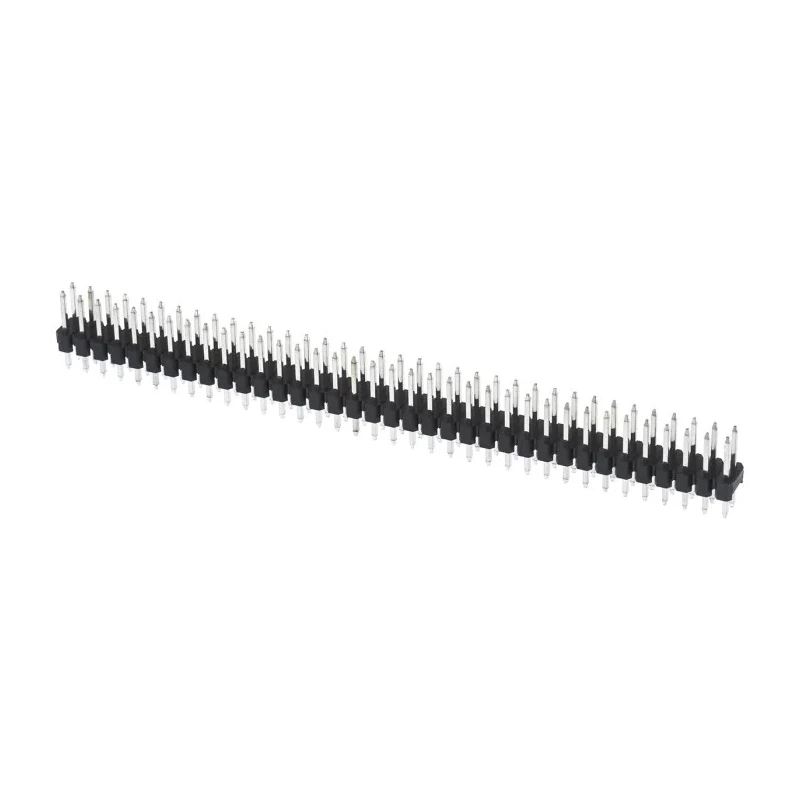

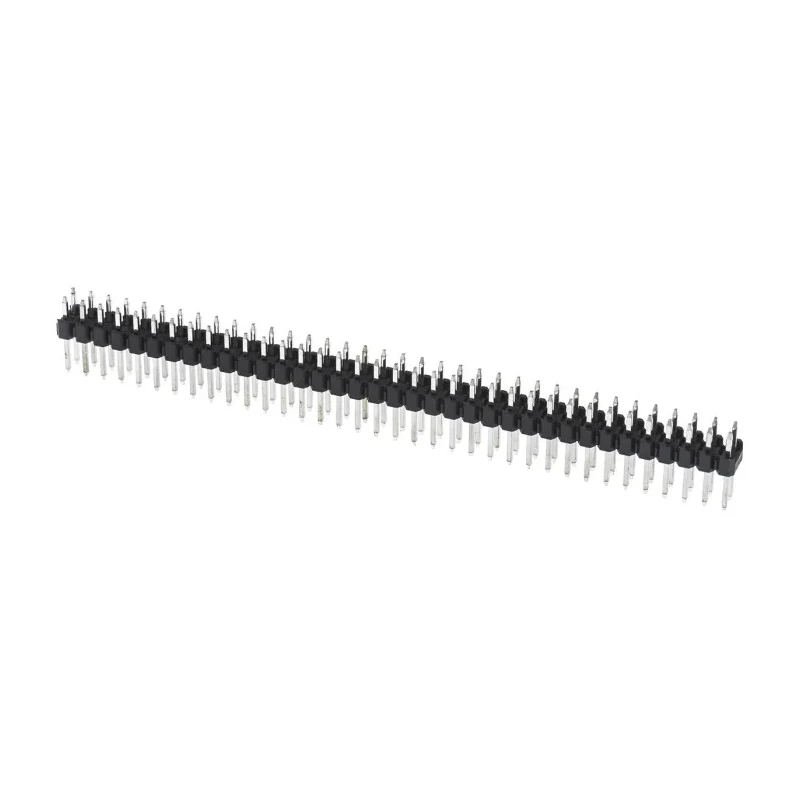

HARWIN M20 Series Straight Through Hole Pin Header, 72 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20 9763646

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M20 Series Straight Through Hole Pin Header, 72 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20 9763646

Name: HARWIN M20 Series Straight Through Hole Pin Header, 72 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20 9763646
Brand: HARWIN
SKU: 197250
Price: 2.04 USD
Availability: InStock



Category PCB Pin Header Brand HARWIN Condition New

Specifications

Country of Origin	Taiwan
Voltage	750V
Brand	HARWIN
Orientation	Straight
Current	3A
Model	M20 9763646
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	72
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.1mm
Mating Pin Length	5.8mm
Connector,PCB,header,tin plated,double row,straight,72 wayBrand	RS PRO

Key Features

Constructed with brass contacts plated with tin for optimal conductivity and corrosion resistance.
Housing made from high-temperature nylon thermoplastic suitable for reflow soldering processes.
Designed for through-hole mounting with straight orientation to support board-to-board and wire-to-board connections.
Operates reliably from -40°C to a maximum of 105°C, handling voltages up to 750V and current ratings of 3A.
Features 3.1 mm tail pin length and 5.8 mm mating pin length compatible with M20 series sockets and jumpers.
Versatile for use in embedded PCs, motherboards, consumer electronics, communications, industrial monitoring, and control applications.
Manufactured in Taiwan, Province of China, ensuring quality and compliance standards for electronic components.

Product Description

HARWIN M20 9763646 is a precision-engineered series of straight through hole pin headers designed for electronic assemblies requiring secure and reliable connections. This model features 72 male brass contacts plated in tin to provide excellent conductivity and corrosion resistance. It includes a 2-row configuration with a 2.54 mm pitch and an unshrouded housing constructed from durable nylon thermoplastic capable of withstanding high temperatures during reflow soldering processes.

The connector supports through-hole mounting on printed circuit boards with a straight orientation and is suitable for board-to-board and wire-to-board applications. Operating parameters include a current rating of 3A and voltage threshold up to 750V, with a temperature range from -40°C to 105°C, making it reliable for various industrial and commercial electronics environments.

The tail pin length of 3.1 mm and mating pin length of 5.8 mm ensure compatibility with other M20 series connector components like sockets and jumpers, enabling flexible design options. The thermoplastic housing is equipped with castellations which allow the connector to be cut to size when custom lengths are required, though care is advised to avoid damage to tails during modification.

Typical use cases for this pin header include embedded computer systems, large motherboard assemblies, consumer electronics, communication equipment, drive and control systems, and industrial monitoring devices. The product is manufactured in Taiwan, Province of China, reflecting a high standard of quality in electronic component production.

Constructed from brass contacts with tin plating for durability. Housing material is high temperature nylon suitable for soldering. 2-row, 72 contact male pin design with 2.54 mm pitch. Operates safely between -40°C and 105°C at voltages up to 750V.

Tail pin length of 3.1 mm and mating pin length of 5.8 mm. Designed for through-hole mounting with straight orientation. Compatible with M20 series sockets and jumpers. Explore more PCB connector solutions in the EnvMart Electronics Components category for comprehensive connectivity needs.

Explore more products in our PCB Pin Header category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 3A, making it suitable for various electronic applications.

It can handle voltages up to 750V, ensuring reliable performance in high-voltage applications.

The operating temperature range is from -40°C to a maximum of 105°C, allowing it to function in diverse environments.

The contacts are made of brass and plated with tin for optimal conductivity, while the housing is constructed from high-temperature nylon thermoplastic.

This model features 72 male contacts arranged in a 2-row configuration.

The pitch size of this connector is 2.54 mm, which is standard for many PCB applications.

The tail pin length is 3.1 mm, and the mating pin length is 5.8 mm, ensuring compatibility with M20 series sockets and jumpers.

It supports through-hole mounting, designed for secure installation on printed circuit boards.

Yes, the housing material is suitable for reflow soldering processes, making it versatile for assembly.

It is versatile for use in embedded PCs, motherboards, consumer electronics, communications, and industrial monitoring applications.

This product is manufactured in Taiwan, Province of China, ensuring compliance with quality standards for electronic components.

It supports both board-to-board and wire-to-board connections, providing flexibility in design options.
