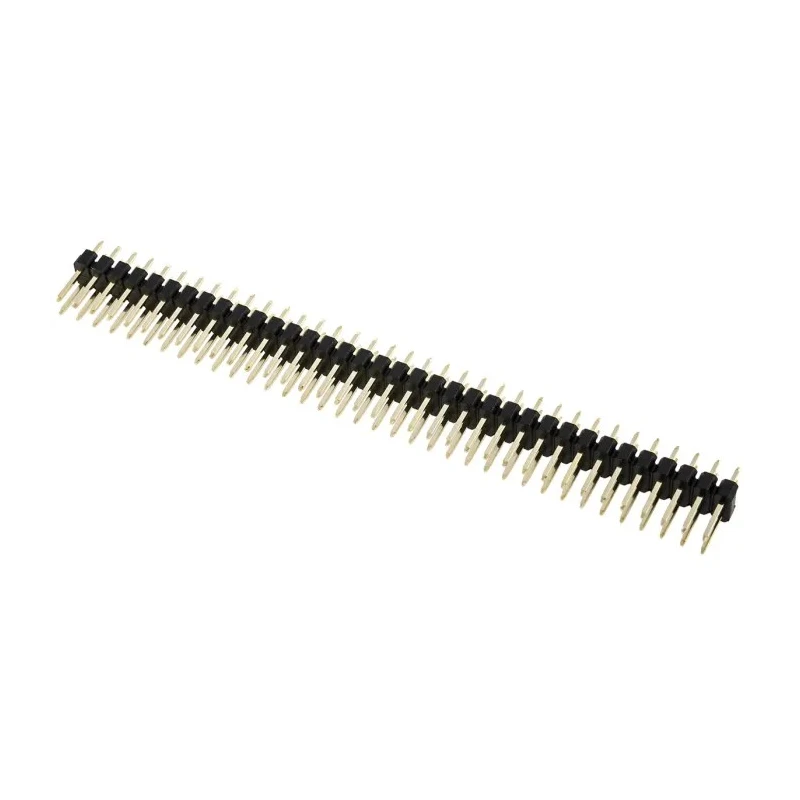

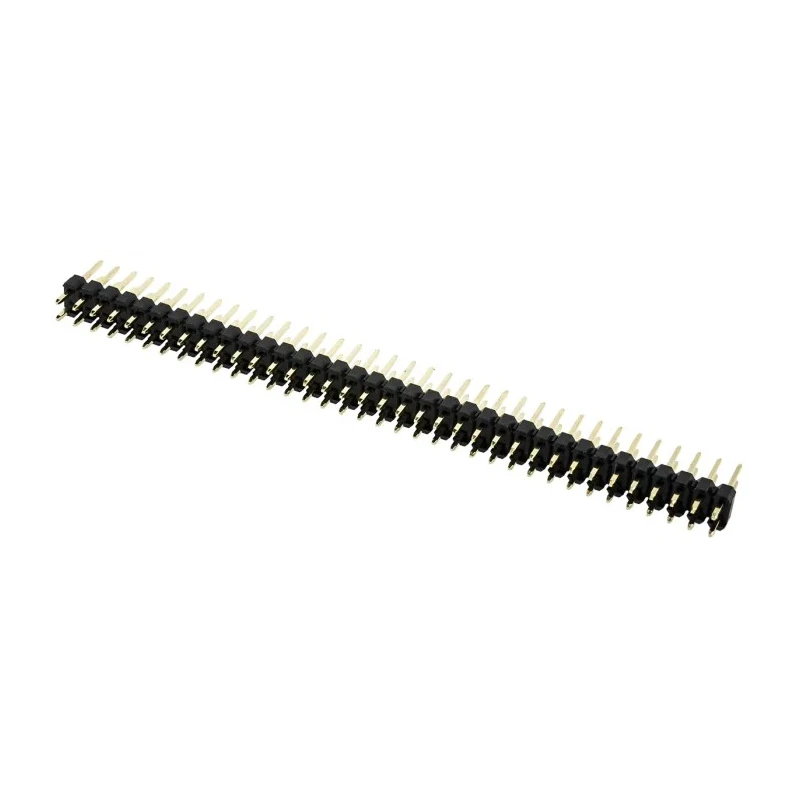

HARWIN M20 Series Straight Through Hole Pin Header 72 Contacts 2.54 mm Pitch 2 Row Unshrouded M20-9983645

HARWIN M20-9983645 is a high-quality PCB Pin Header connector designed with a 2.54 mm pitch and 72 contacts arranged in two rows for straight through-hole mounting. It is constructed with nylon housing capable of withstanding reflow soldering processes, making it suitable for industrial, electronic, and manufacturing environments.

The connector features brass contacts with gold plating to provide excellent conductivity and corrosion resistance. With a current rating of 3 A and voltage endurance up to 750 V, it is well suited for various power and signal applications. The 3 mm tail pin length and 6.1 mm mating pin length ensure reliable connections when paired with compatible M20 series sockets and jumpers.

This unshrouded connector offers design flexibility for various embedded PCs, motherboards, and larger electronic systems used in consumer electronics, communications, drives, controls, and industrial monitoring.

Its operating temperature range from -40°C to 105°C makes it reliable for harsh environments and industrial operations. The nylon thermoplastic housing also allows the connector to be cut to size when needed, providing further customization for PCB layouts.

Applications include use in embedded systems, communication devices, industrial control modules, and personal computing hardware. As a member of the M20 series, it is engineered for seamless integration and long-term durability in demanding electrical assemblies.

Features 72 male contacts arranged in 2 rows for high-density connectivity. Constructed with nylon housing resistant to high temperatures and reflow soldering. Contacts are brass with gold plating ensuring reliable conductivity.

Solder termination type suitable for through hole mounting on PCBs. Pins have a tail length of 3 mm and mating pin length of 6.1 mm. Rated for voltages up to 750 V and maximum current of 3 A per contact. Operating temperature range from -40°C up to 105°C for industrial applications.

Unshrouded and straight orientation for versatile mounting options. Compatible with M20 series sockets and jumpers for system integration. Explore EnvMart's wide range of PCB connectors and headers for industrial, laboratory, and manufacturing applications.
