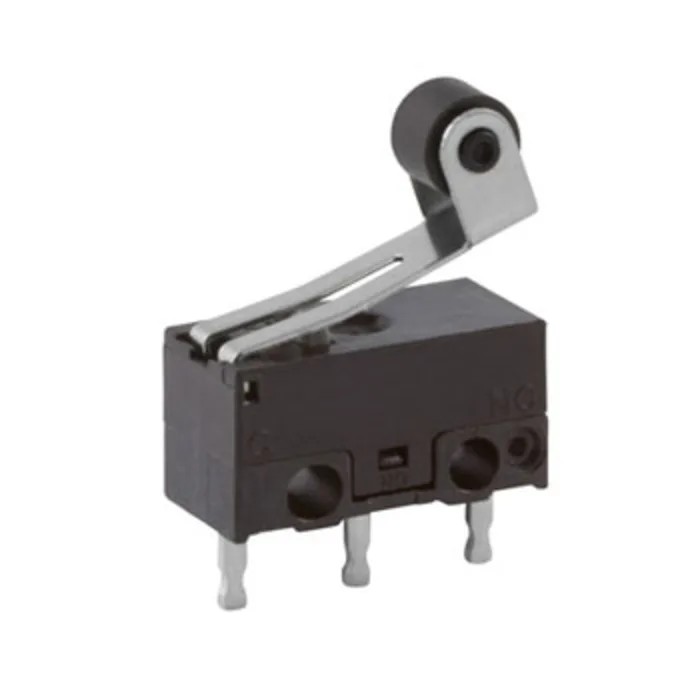

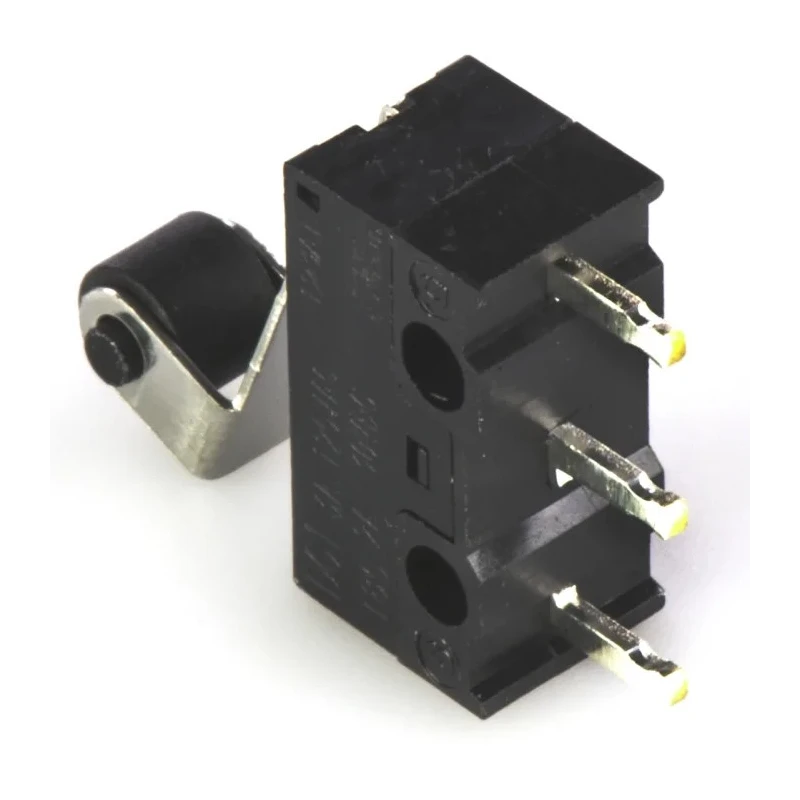

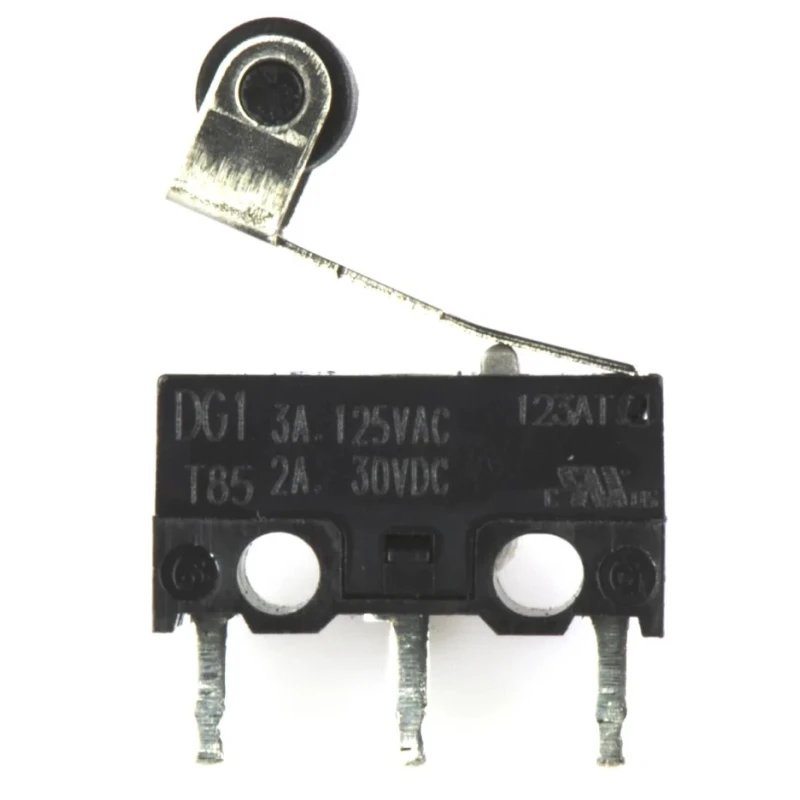

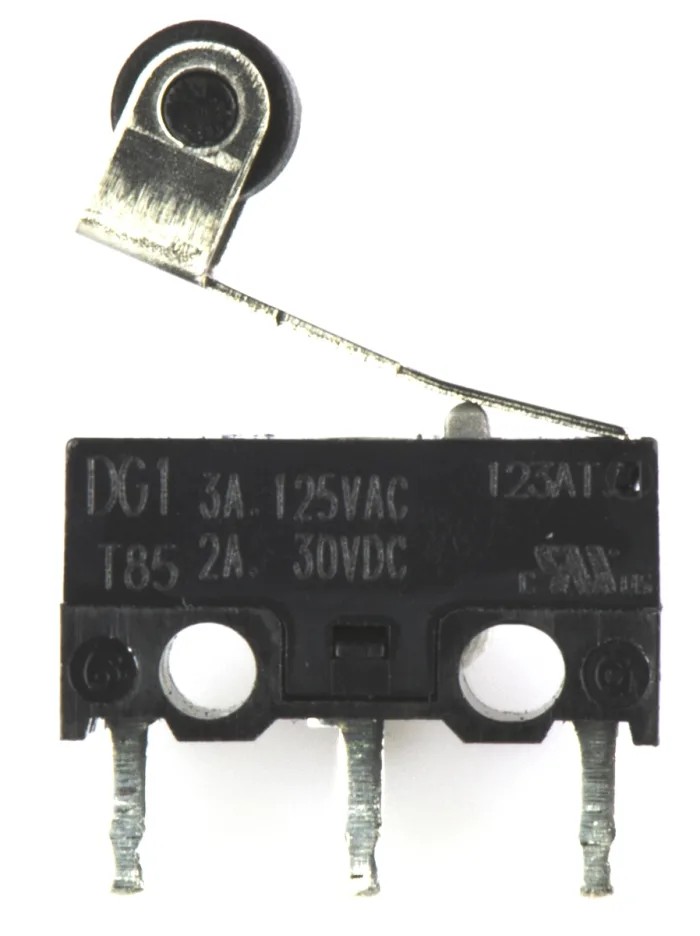

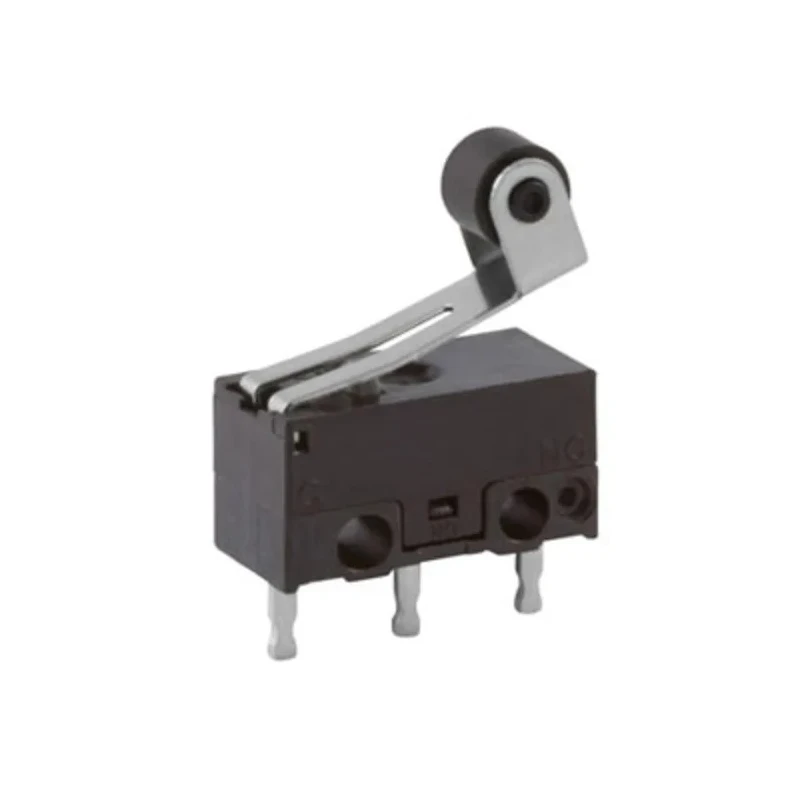

ZF Roller Lever Micro Switch PCB Terminal 3A 125V AC 30V DC SPDT IP40 DG13-B1RA
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |

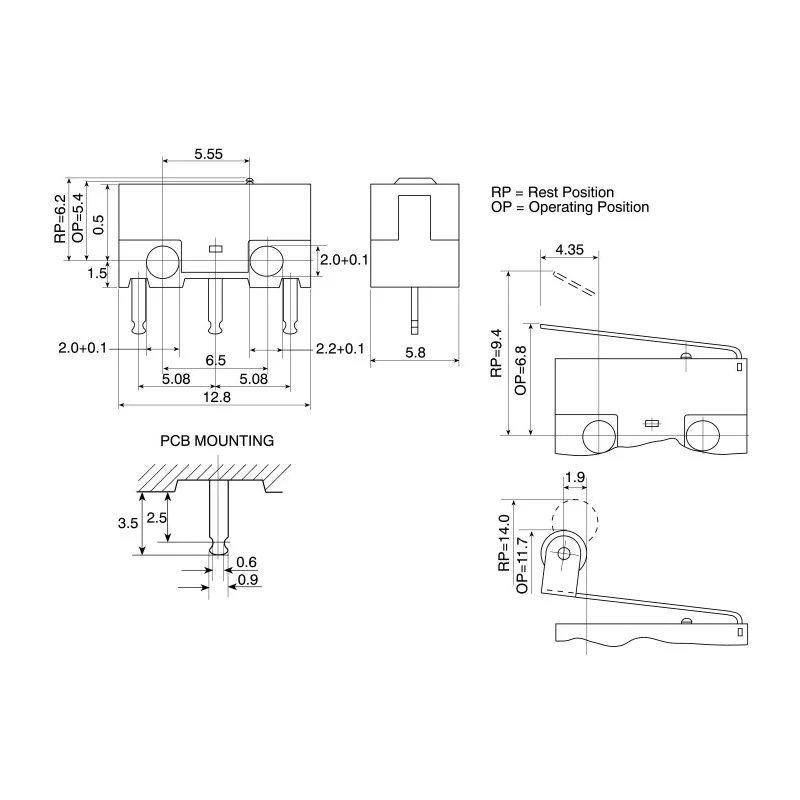

| Length | 12.8mm |
| Model | DG13-B1RA |
| IP Rating | IP40 |
| Housing Material | Polyethylene Terephthalate |
| Series | DG Sub-Miniature |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Roller Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 0.59N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | DG Subminiature |
| SPDT snap action roller microswitchBrand | Cherry |
Key Features
- Features a roller lever actuator for precise switching operations.
- Offers reliable performance with a mechanical life of over 1,000,000 operations.
- Constructed with durable Polyethylene Terephthalate housing ensuring longevity.
- Operates effectively within a temperature range of -25°C to 85°C.
- Designed for PCB terminal type for easy mounting and connectivity.
- Provides a low operating force of 0.59N for sensitive applications.
- Subminiature DG series compact design suitable for space-constrained installations.
- Certified RoHS compliant ensuring environmental safety.
Product Description
The ZF DG13-B1RA Roller Lever Micro Switch is a high-quality subminiature switch designed for industrial and electrical automation use. Featuring a robust roller lever actuator, it offers a contact rating of 3A at 125V AC and 30V DC with a SPDT contact configuration for versatile switching applications. The switch body is molded with durable Polyethylene Terephthalate (PBT) housing providing excellent resistance to wear and environmental conditions.
This micro switch operates efficiently within a wide temperature range from -25°C to 85°C, ensuring reliable performance in various industrial environments including manufacturing equipment, HVAC controls, and electrical panels. Its PCB Terminal type terminals enable secure and easy PCB mounting for compact system designs.
The operating force of only 0.59 Newtons allows for sensitive actuation, ideal for precision control systems. With a mechanical operational life exceeding one million cycles, the DG13-B1RA offers long-lasting and dependable service for demanding applications.
Designed as part of the DG Subminiature series, this switch complies with RoHS standards promoting environmental safety. Its IP40 rating ensures moderate protection against solid objects, making it suitable for various indoor or protected installations.
Roller lever actuator for precision switching. Contact rating of 3A at 125V AC and 30V DC. Long mechanical life exceeding 1,000,000 operations. Durable Polyethylene Terephthalate housing for reliability. Wide operating temperature range from -25°C to 85°C.
PCB terminal type for simple mounting. Low operating force of 0.59N for sensitivity. RoHS compliant and environmentally safe.
This micro switch is widely used in industrial automation, control panels, electrical equipment, HVAC systems, and manufacturing machinery where reliable and compact switching solutions are essential. It supports precise and repeatable switching actions in harsh or confined environments.
Explore more Micro Switches and related electrical components to support your industrial and laboratory automation requirements available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 3A at 125V AC and 30V DC, allowing for versatile switching applications.
It operates efficiently within a temperature range of -25°C to 85°C, making it suitable for various industrial environments.
This micro switch features a roller lever actuator, which allows for precise switching operations.
The mechanical life exceeds one million operations, ensuring long-lasting service for demanding applications.
It is constructed with durable Polyethylene Terephthalate (PBT) housing, providing excellent resistance to wear and environmental conditions.
The DG13-B1RA has an IP40 rating, which provides moderate protection against solid objects.
It features PCB terminal type terminals for secure and easy mounting on printed circuit boards.
The operating force is only 0.59 Newtons, allowing for sensitive actuation in precision control systems.
Yes, this micro switch is RoHS compliant, promoting environmental safety.
It is widely used in industrial automation, control panels, HVAC systems, and manufacturing machinery.
The length of this micro switch is 12.8mm, making it suitable for space-constrained installations.
The contact configuration is SPDT (Single Pole Double Throw), which allows for versatile switching.
