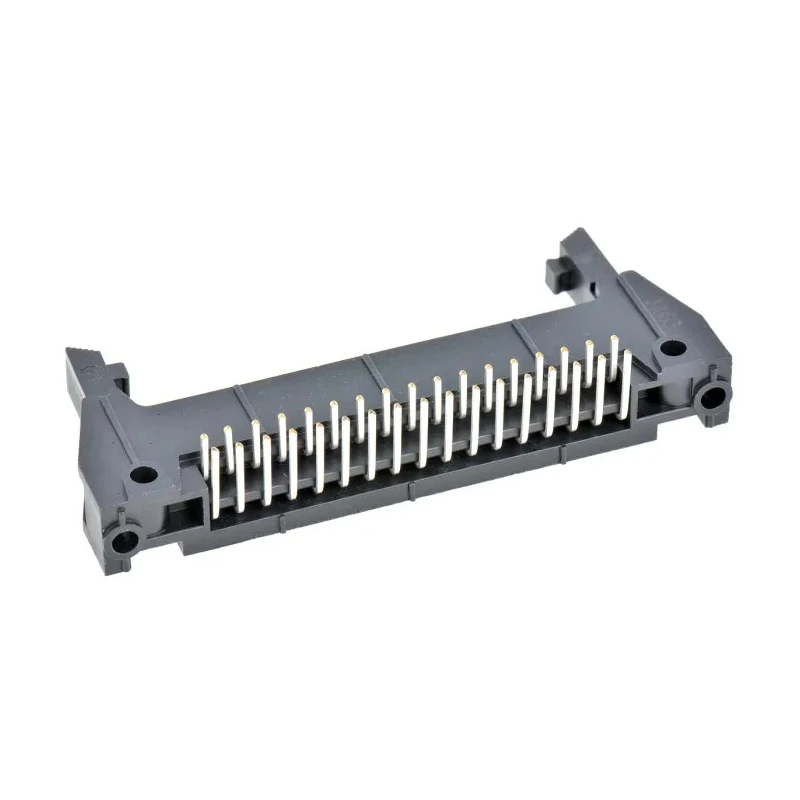

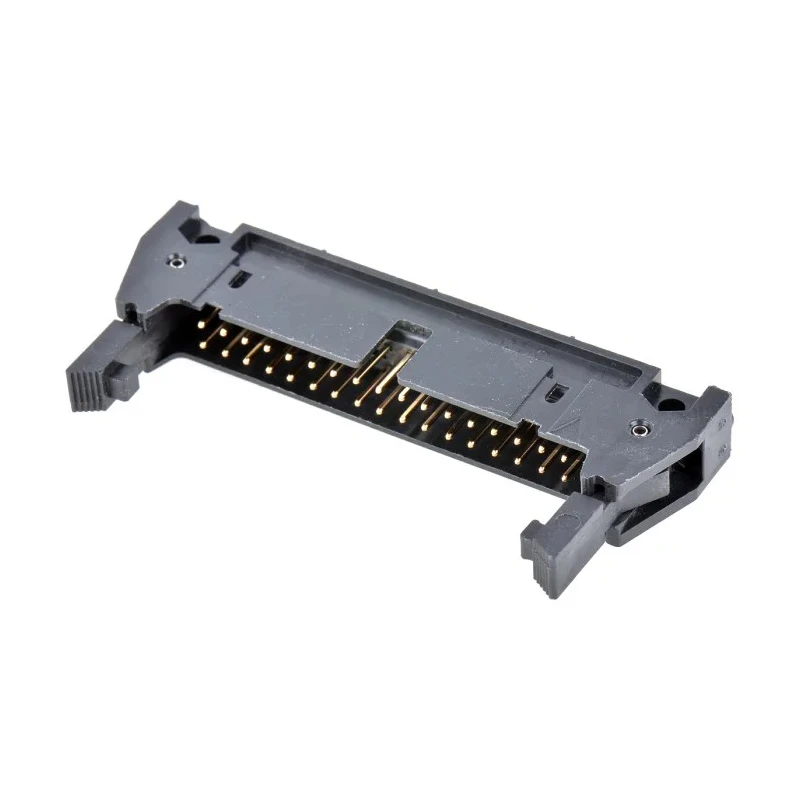

3M 3000 Series Right Angle Through Hole PCB Header, 34 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N3431-5302RB

3M N3431-5302RB is a 3000 Series Right Angle Through Hole PCB Header designed for electronic components requiring 34 male contacts in a 2-row configuration with a 2.54 mm pitch. This shrouded PCB header ensures protection of contacts from damage and secures the connection with robust roll pin style ejector latches.

The header features gold-plated copper alloy contacts and a high temperature-rated PCT housing suitable for lead-free soldering processes up to 260°C, complying with JEDEC J-STD-020C standards. The right-angle orientation and through-hole mount type make it ideal for board-to-board and wire-to-board applications in industrial, instrumentation, medical, communications, and data systems.

Polarization features include a center bump notch and military polarization options via a polarizing key, ensuring precise mating and prevention of misalignment. The wide operating temperature range from -55°C up to 105°C suits demanding environments.

Manufactured in the United States, this PCB header offers a reliable and versatile connection solution meeting stringent performance requirements. Features 34 gold-plated copper alloy contacts arranged in 2 rows with 2.54 mm pitch.

Shrouded housing protects contacts and supports secure connections. High temperature PCT material supports lead-free soldering methods. Roll pin style ejector latches provide retention and easy connector disengagement. Designed for board-to-board and wire-to-board mounting configurations.

Polarization notches and keys minimize misalignment risks.

This 3M PCB Header is recommended for applications in industrial equipment, electronic instrumentation, medical devices, data communication systems, and commercial electronics. Browse more PCB Headers at EnvMart for compatible connectors and accessories.
