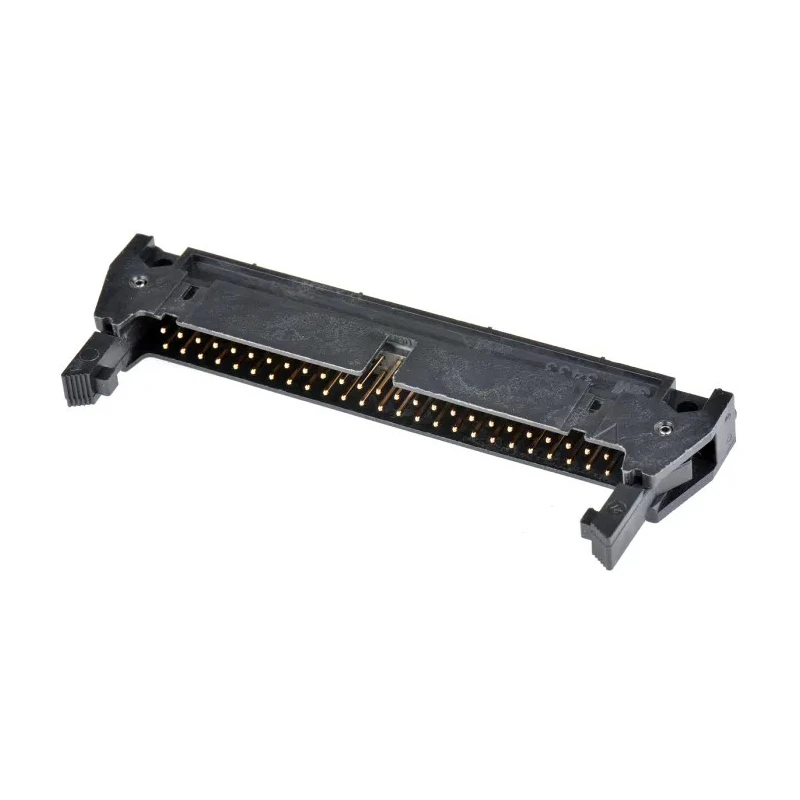

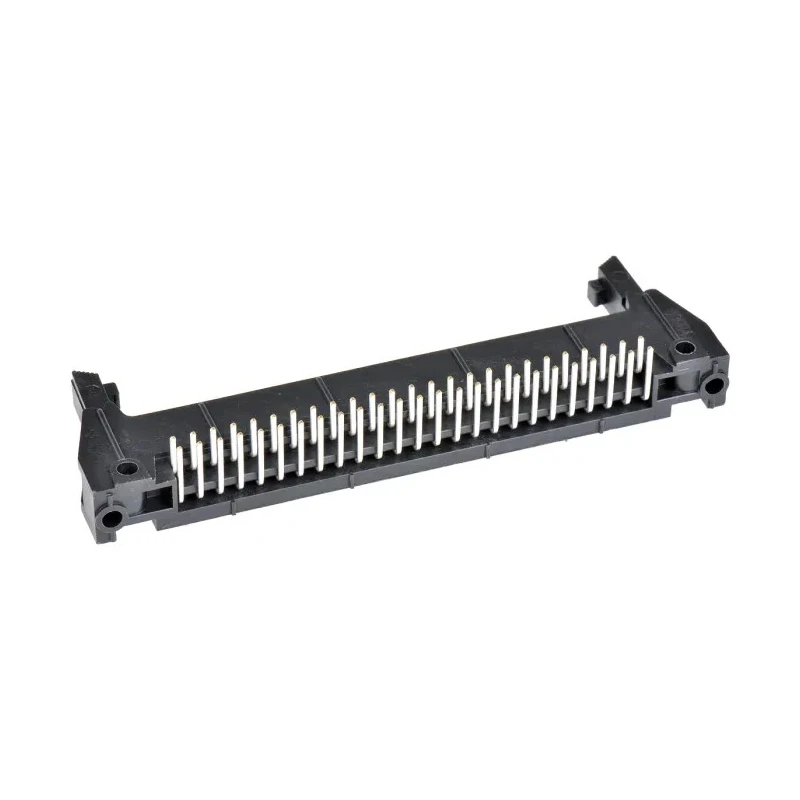

3M 3000 Series Right Angle Through Hole Shrouded PCB Header 50 Contacts 2.54 mm Pitch N3433-5302RB

Free Delivery in India | Lowest Global Shipping Charges

3M 3000 Series Right Angle Through Hole Shrouded PCB Header 50 Contacts 2.54 mm Pitch N3433-5302RB



Category PCB Header Brand 3M Condition New

Specifications

Country of Origin	United States
Voltage	1V
Brand	3M
Orientation	Right Angle
Current	1.75
Model	N3433-5302RB
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	3000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	0.01in
Mating Pin Length	6.2mm

Key Features

Shrouded design enhances connection safety and reliability.
Right angle orientation saves space in compact PCB layouts.
Through-hole mounting supports robust solder terminations.
Copper alloy contacts plated with gold improve conductivity and corrosion resistance.
Supports board-to-board and wire-to-board connector systems.
Rated for 1.75A current and 1000V voltage for demanding applications.
Suitable for electronics assembly and automation systems.

Product Description

3M N3433-5302RB shrouded right angle through hole PCB header, part of the 3000 series, provides reliable interconnectivity for electronic circuits. It features 50 male contacts spaced at 2.54 mm pitch arranged in two rows, designed to mount securely through PCB holes for stable connections. The right angle connector orientation optimizes space utilization on printed circuit boards where compact assembly is critical.

Constructed with copper alloy contacts plated in gold, this header ensures high electrical conductivity and resistance to corrosion, thereby extending connector lifespan. It supports both board-to-board and wire-to-board applications, making it suitable for versatile electronic and automation system uses.

The product supports a maximum current of 1.75 amperes and is rated for voltages up to 1000 volts, catering to various power and signal distribution needs in electronic assemblies. Its shrouded design safeguards connections improving durability and safety during operation.

Operating temperature ranges from -55°C up to 105°C, allowing this connector to perform reliably under demanding environmental conditions. The solder termination type facilitates secure electronic assembly integration. This component is manufactured in the United States, assuring consistent quality standards.

Shrouded design improves connection safety and reliability. Right angle orientation optimizes PCB space usage. Through-hole mount type ensures stable mechanical and electrical connection. Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.

Supports board-to-board and wire-to-board connector systems. Rated for 1.75A current and maximum 1000V voltage. Suitable for use in demanding electronics, power distribution, and automation applications.

This 3M 3000 Series PCB Header is ideal for industrial electronics, automated manufacturing, telecommunications equipment, and other commercial electronics requiring reliable connector solutions. Explore more quality connectors and related components in EnvMart's Electronics & Electricals category.
