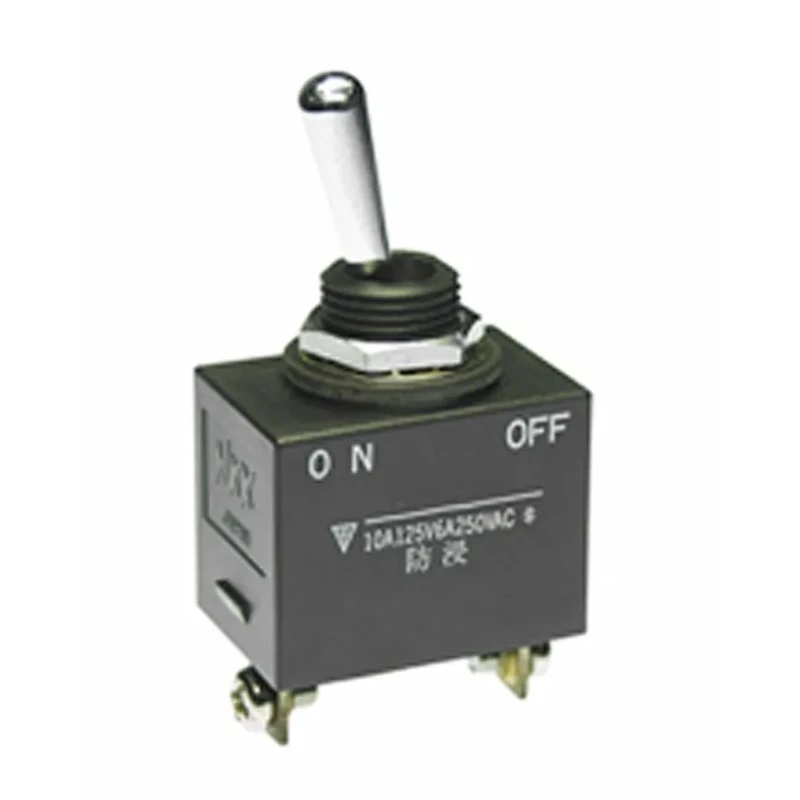

NKK Switches Toggle Switch Panel Mount On-Off SPST Screw Terminal 30V DC 125V AC WT11T

Name: NKK Switches Toggle Switch Panel Mount On-Off SPST Screw Terminal 30V DC 125V AC WT11T
Brand: NKK Switches
SKU: 195920



Category Toggle Switch Brand NKK Switches Condition New

Specifications

Country of Origin	Japan
Brand	NKK Switches
Height	54.2mm
Length	28.8mm
Model	WT11T
IP Rating	IP67
Mount Type	Panel
Series	WT
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-30°C
Panel Cutout Size	12.5 mm
Terminal type	Screw
Standards/Approvals	IEC6059, CSA TEW 105, UL AWM 1015, UL94V0
Switch Operation	On-Off
Actuator Length	17.5mm
Contact DC Voltage	30V dc
Switch Contact Current	10A
Mechanical Life	50000Operations
Contact AC Voltage	125V ac
Actuator Material	Chrome Plated Brass

Key Features

Features a specially designed contact mechanism for reliable switching.
Constructed with a heat-resistant resin housing that meets UL94V-0 flammability standard.
Epoxy sealed base with an outer case providing IP67 rating for dust and water resistance.
Chrome plated brass actuator for durable operation and aesthetic finish.
Designed for panel cutout size of 12.5 mm and actuator length of 17.5 mm.
Operates reliably between -30°C and 70°C ambient temperatures.
Mechanical life expectancy of 50,000 operations ensures long-term durability.
Compatible with electrical currents up to 10 A and voltages of 30 V DC and 125 V AC.

Product Description

NKK Switches WT11T toggle switch is a high-quality, environmentally sealed panel mount switch designed for reliable On-Off SPST operation at 30 V DC and 125 V AC. It features a robust epoxy sealed base with an additional outer case to provide superior protection against dust and moisture, achieving an IP67 rating. The device is constructed using heat-resistant resin compliant with UL94V-0 standards, providing excellent arc and tracking resistance suitable for demanding industrial applications.

The chrome plated brass actuator offers durable mechanical performance with a length of 17.5 mm, fitting securely into a 12.5 mm panel cutout. This switch is ideal for electrical panels, industrial controls, and automation systems requiring compact, reliable Toggle Switches with screw terminal connections.

Operating temperature ranges from -30°C to 70°C ensure versatility in varied environments, while the mechanical life of 50,000 operations guarantees extended service life. Suitable for up to 10 A current load, this switch performs efficiently in both DC and AC circuits with maximum voltage ratings of 30 V DC and 125 V AC respectively.

Specially designed contact mechanism minimizes contact bounce for consistent switching performance. Single unit construction combines bushing and case for structural integrity. Heat-resistant resin housing enhances durability and safety.

Chrome plated brass actuator material enhances corrosion resistance and aesthetics. IP67 rating ensures protection against dust ingress and water immersion up to specified limits. Complies with applicable standards including IEC6059, CSA TEW 105, UL AWM 1015, and UL94V-0.

Japanese manufacturing origin affirms high product quality and reliability.

This switch is especially suited for use in industrial, laboratory, manufacturing, automation, and HVAC control panel applications. Its compact form factor and reliable performance make it a preferred choice for engineers and technicians working in demanding electrical switching environments.
