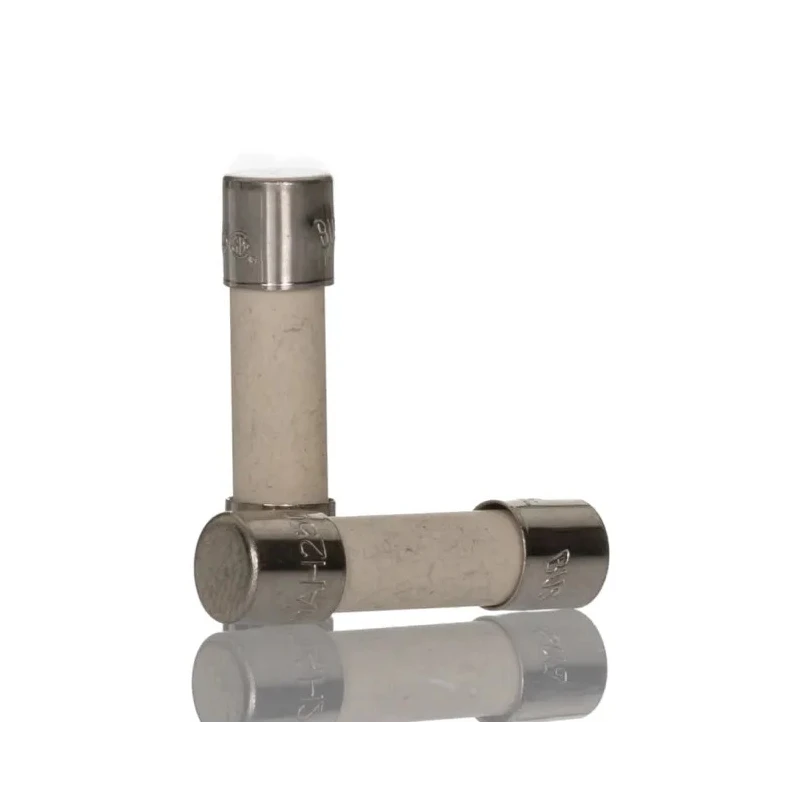

Eaton 500mA Fast Acting Ceramic Cartridge Fuse 5 x 20 mm S501-500-R

Eaton S501-500-R is a 500mA fast acting ceramic cartridge fuse sized 5 x 20 mm designed for precise protection of electrical and semiconductor equipment. The ceramic body construction ensures higher capacity and improved heat resistance compared to glass fuses, making it ideal for circuits with increased current demands.

This fuse is part of the Eaton Bussmann S501 series, featuring a quick-acting 'F' fuse speed to safeguard less sensitive components and wiring against overloads and fire hazards effectively. It is suitable for use in any application requiring 250V AC voltage rating and high breaking capacity to handle fault currents safely without damage or rupture.

With an overall length of 20 mm and diameter of 5 mm, it fits compatible 5 x 20 mm fuse holders widely used in board and panel protection. These fuses are commonly employed to protect semiconductors such as thyristors, diodes, and triacs from short-circuits and overcurrent conditions.

Manufactured to comply with stringent international standards including BSI, CCC, CSA, IMQ, SEMKO, and VDE, this fuse guarantees reliable performance in industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial electrical control systems.

Note that for current ratings above 6.3A, open type fuse holders are recommended to prevent nuisance tripping near full rated current. This ceramic Cartridge Fuse features a durable ceramic body for enhanced heat capacity and durability.

The fast acting 'F' speed rating ensures quick response to overloads for reduced damage risk. The fuse size of 5 x 20 mm is a standard form factor fitting common fuse holders. Rated for 500mA current and 250V AC voltage for diverse electrical applications.

High breaking capacity design safely interrupts fault currents without risk. Meets multiple certifications including BSI, CCC, CSA, IMQ, SEMKO, and VDE for assured quality. Perfect for semiconductor protection and overcurrent isolation in industrial and commercial uses.

Eaton products offer quality and reliability trusted by professionals worldwide. Explore the Eaton range and similar products on EnvMart for advanced circuit protection solutions.
