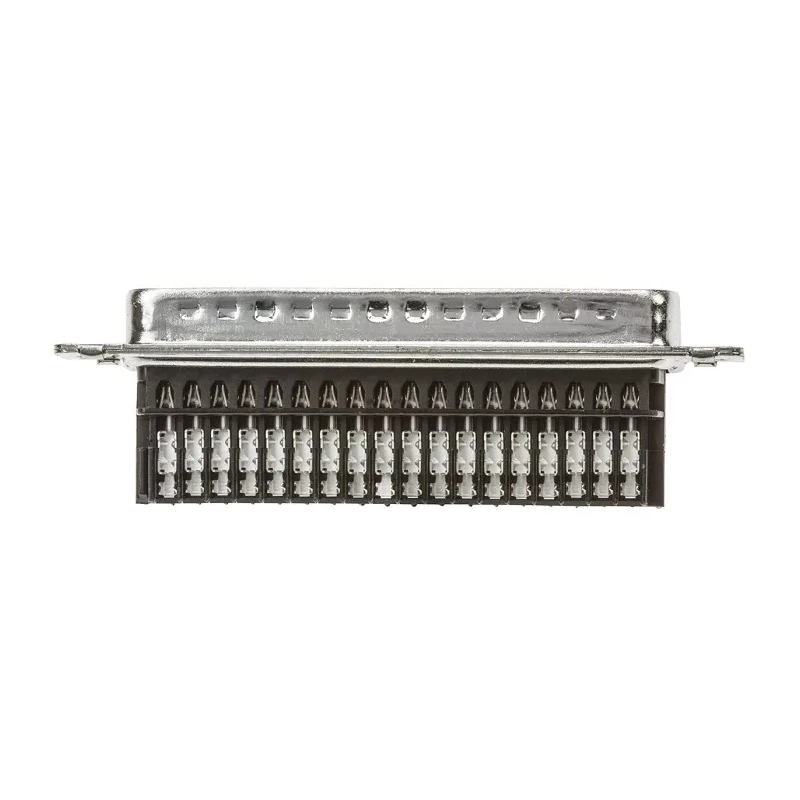

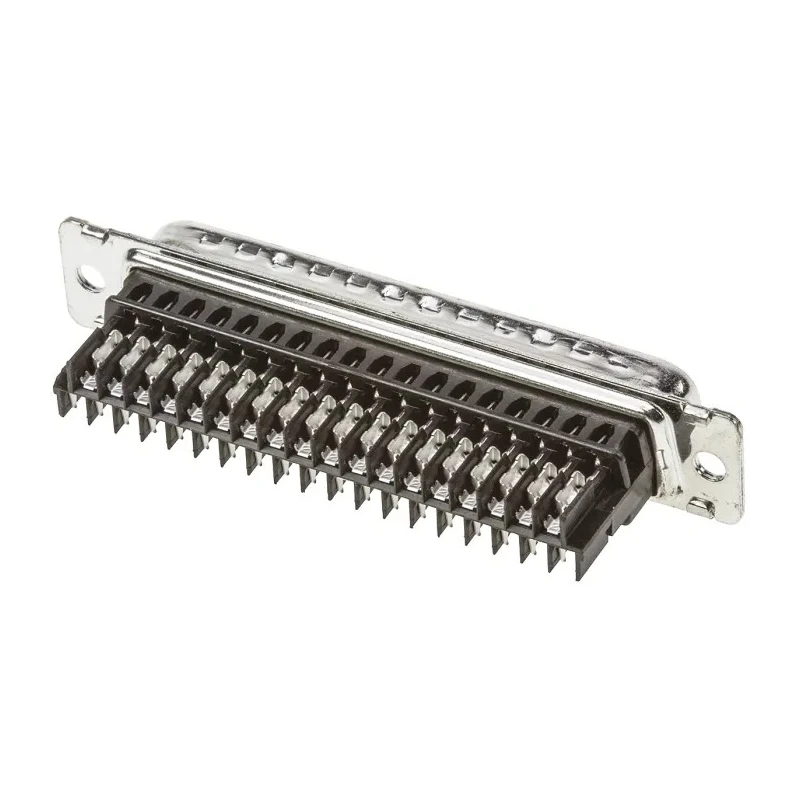

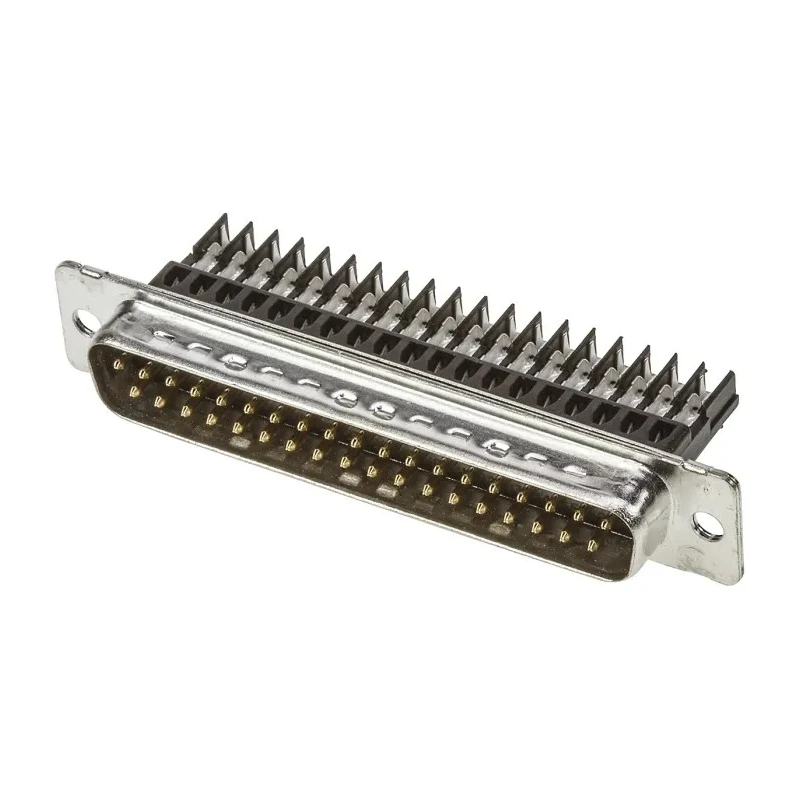

TE Connectivity Amplimite HDE-20 37 Way Straight 2.76 mm Pitch Cable D-Sub Connector Male 1-745498-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDE-20 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- Constructed with a durable steel housing for enhanced mechanical protection.
- Features 37 gold-over-nickel plated phosphor bronze contacts for optimum conductivity and corrosion resistance.
- Supports a current rating of 3A and voltage rating up to 250V for robust electrical performance.
- Utilizes IDC termination type to facilitate efficient cable connections.
- Designed with a straight orientation for easy cable routing and installation.
- Operates reliably under temperature ranges from -55°C to 105°C.
- Offers a 2.76 mm pitch, suitable for precise mating with compatible connectors.
- Compatible with Amplimite HDE-20 series and mates with HDP and HD-20 board mount connectors.
Product Description
TE Connectivity 1-745498-5 Amplimite HDE-20 37 Way Straight 2.76 mm Pitch Cable D-Sub Connector Male is engineered for demanding electronic and industrial applications that require secure, high-quality cable connections.
Constructed with a robust steel housing and a black 94V-0 rated thermoplastic insert, this connector ensures mechanical strength and flame retardance. It is equipped with 37 IDC duplex contacts made of phosphor bronze, plated with gold on the mating end and tin on the crimping end, enhancing conductivity and corrosion resistance.
The connector supports a maximum current of 3 Amperes and voltage of up to 250 Volts, making it suitable for a broad range of power and signal transmission requirements. Its straight orientation and cable mount design facilitate straightforward installation on cables with insulation max thickness of 0.38 mm and diameter max of 1.52 mm.
Operating within a wide temperature range from -55°C to 105°C, it is suitable for harsh environmental conditions commonly encountered in industrial, manufacturing, and HVAC systems.
This Amplimite HDE-20 series connector mates seamlessly with HDP and HD-20 board mount connectors, ensuring wide compatibility for system integration. Durable steel housing for mechanical protection. Gold over nickel plated phosphor bronze contacts for superior conductivity.
Current rating of 3A and voltage up to 250V. IDC termination type enables easy cable connections. Temperature operation range -55°C to 105°C. 2.76 mm pitch for precise electrical contacts. Compatible with HDP and HD-20 board mount connectors.
This connector is ideal for electronic components assembly, power connectors in commercial and industrial equipment, and applications requiring robust and reliable D-Sub Connectors with high contact count.
Explore a wide selection of electronic connectors and components at EnvMart for your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current of 3 Amperes and a voltage rating of up to 250 Volts, making it suitable for various power and signal transmission applications.
It features a pitch size of 2.76 mm, which allows for precise mating with compatible connectors.
The connector is constructed with a durable steel housing and features phosphor bronze contacts that are gold over nickel plated for enhanced conductivity and corrosion resistance.
It utilizes IDC (Insulation Displacement Connector) termination, facilitating efficient cable connections.
This connector operates reliably within a temperature range from -55°C to 105°C, suitable for harsh environmental conditions.
This D-Sub connector has 37 contacts, designed for high-density applications.
The connector is designed with a straight orientation, which simplifies cable routing and installation.
Yes, it is compatible with the Amplimite HDE-20 series and mates with HDP and HD-20 board mount connectors.
It can accommodate cables with a maximum insulation thickness of 0.38 mm.
The maximum cable diameter supported by this model is 1.52 mm.
The country of origin for this connector is India.
This connector is ideal for electronic components assembly and power connections in commercial and industrial equipment.
