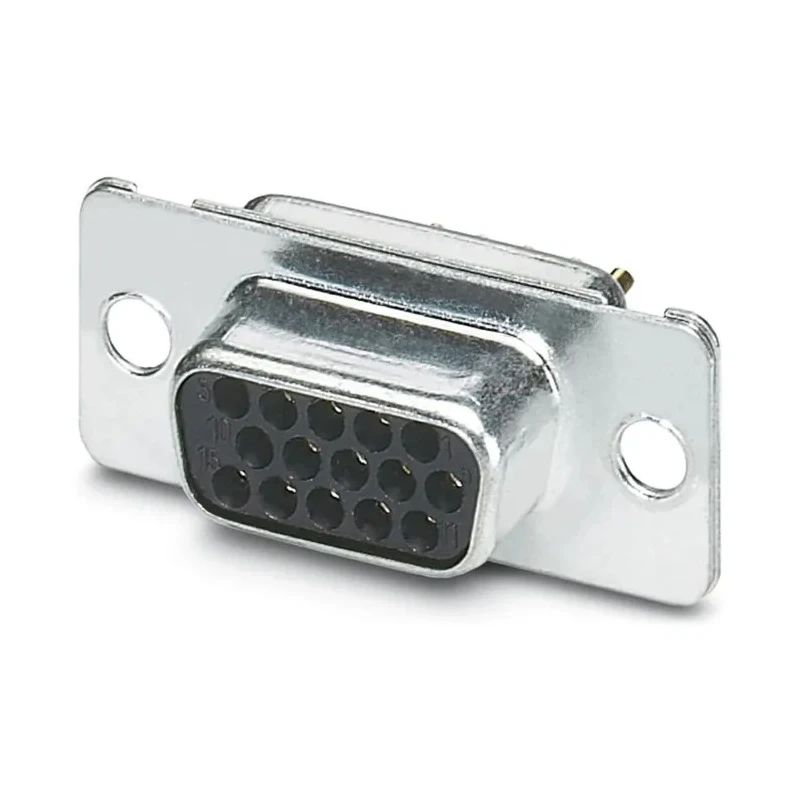

Phoenix Contact D-Sub Connector 15 Contacts Panel Mount Straight Solder Female 60V 3A VS-09-BU-DSUB-HD-EG 1655108
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 3A |
| Model | 1655108 |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | VS-09-BU-DSUB-HD-EG |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Contact Size | 1 |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- Allows current handling up to 3 amperes.
- Operates at a voltage rating of 60 volts.
- Constructed with a steel housing for strength and durability.
- Contact plating is gold over nickel for reliable conductivity.
- Compatible with standard panel mount installations using 3 mm mounting holes.
- Suitable for temperatures ranging from -55°C to +125°C.
- Contacts made from copper alloy ensuring good electrical performance.
- Provides a high-density D-Sub interface with size A shell and 15 contacts.
Product Description
Phoenix Contact 1655108 D-Sub Connector is a high-density 15-contact female connector designed for panel mounting in electronic and power connector applications. Rated for 3 amps current and 60 volts, this component utilizes a steel housing and gold over nickel plated copper alloy contacts to ensure robust electrical performance and longevity.
The connector shell size A and straight orientation allow for easy integration into projects requiring a reliable D-Sub interface. Suitable for operating temperatures from -55°C to 125°C, it accommodates harsh environmental conditions commonly encountered in industrial and manufacturing settings.
The solder termination type ensures secure and lasting connections on PCBs or wiring harnesses. Its construction with copper alloy contacts guarantees stable electrical conductivity while the high-density design maximizes pin count in a compact footprint.
This product is ideal for use in electronics, power distribution, instrumentation, industrial automation, and other precision electrical applications requiring dependable panel-mounted connectors. Manufactured in Germany adhering to rigorous quality standards, it assures performance and durability.
Current rating of 3A supports moderate power transmission. Voltage rating of 60V suitable for control and signal circuits. Steel housing provides mechanical strength and EMI shielding benefits. Gold over nickel plated contacts prevent corrosion and enhance mating performance.
Fits panels with standard 3mm mounting holes for easy installation. Contact size 1 for fine pitch and reliable connection integrity. Operating temperature range from -55°C to 125°C accommodates industrial environments. Solder termination permits robust electrical and mechanical connection.
Designed for electronic component assemblies and power connector systems. Explore the extensive Phoenix Contact connector series for tailored solutions in electronic and electrical system integration at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a current rating of 3 amperes, suitable for moderate power transmission applications.
It operates at a voltage rating of 60 volts, making it suitable for control and signal circuits.
The housing is made of steel, while the contacts are copper alloy with gold over nickel plating for reliable conductivity.
This model can operate in temperatures ranging from -55°C to 125°C, accommodating harsh industrial environments.
It features 15 contacts, providing a high-density D-Sub interface.
The connector utilizes solder termination, allowing for secure and lasting connections on PCBs or wiring harnesses.
Yes, it is designed for panel mounting and is compatible with standard 3 mm mounting holes.
This model has a straight orientation, facilitating easy integration into various projects.
It has a D-Sub shell size A, which is standard for many applications.
This product is manufactured in Germany, adhering to rigorous quality standards.
It is suitable for use in electronics, power distribution, instrumentation, and industrial automation applications.
The contact size is 1, which is designed for fine pitch and reliable connection integrity.
