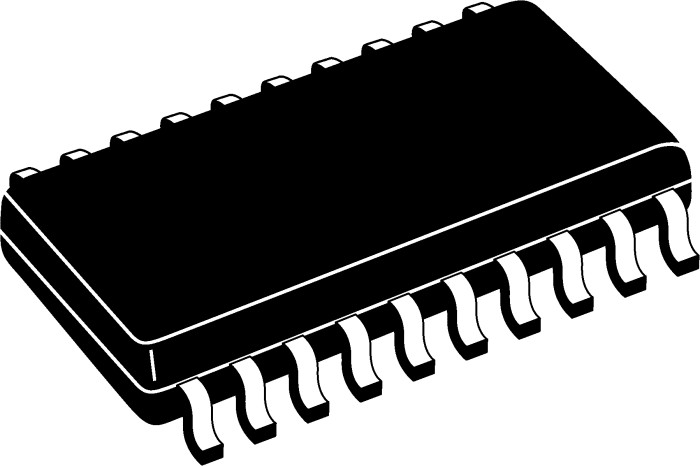

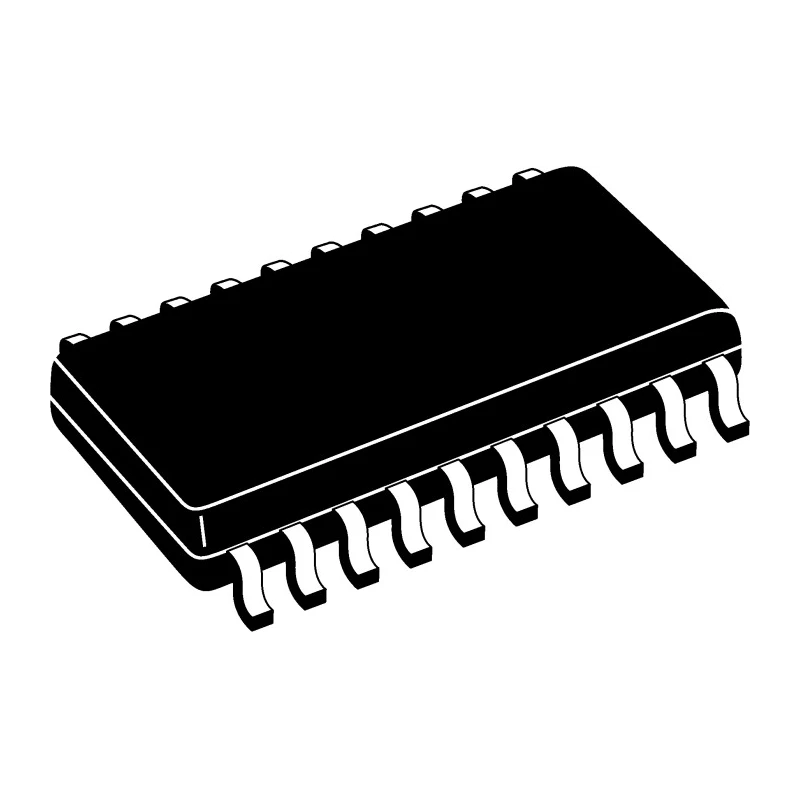

Texas Instruments 8-bit Successive Approximation Register (SAR) Analogue to Digital Converter 10 ksps ADC0804LCWM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 8 bit |
| Brand | Texas Instruments |
| Height | 2.64mm |
| Length | 13.01mm |
| Model | ADC0804LCWM/NOPB |
| Mount Type | Surface |
| Sampling rate | 10ksps |
| Series | ADC0804 |
| Input Type | Voltage |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Interface Type | Parallel |
| Architecture | SAR |
| Pin Count | 20 |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- Features a successive approximation register (SAR) architecture for precise conversion.
- Single 8-bit ADC with a parallel interface ensuring fast data readout.
- Sampling rate of up to 10,000 samples per second for rapid analog to digital conversion.
- Designed for surface mounting with a 20-pin SOIC package for compact PCB layouts.
- Operational temperature range from 0°C to 70°C suitable for industrial applications.
- Input type is voltage with a minimum supply voltage of 5 V for stable operation.
- Measures 13.01 mm in length and 2.64 mm in height ensuring a small footprint on boards.
- RoHS Compliant without specific approvals or automotive standard certification.
Product Description
Texas Instruments ADC0804LCWM/NOPB is an 8-bit Analogue to Digital Converter (ADC) utilizing a successive approximation register (SAR) architecture. It supports a sampling rate of 10 ksps and is provided in a compact 20-Pin SOIC surface mount package. This ADC is designed for effective voltage input conversion, ideal for electronic applications requiring precise signal digitization.
The ADC features a parallel interface ensuring rapid and efficient data acquisition. It operates reliably within a temperature range of 0°C to 70°C and requires a minimum supply voltage of 5 V. The device dimensions are optimized for space-saving printed circuit board (PCB) designs, measuring 13.01 mm in length by 2.64 mm in height.
Commonly used in industrial, laboratory, and embedded electronic circuits, this ADC is suitable for signal processing, data acquisition systems, and instrumentation. Its SAR architecture provides high accuracy and integration ease for measurement and control applications.
The ADC0804LCWM/NOPB does not carry any specific automotive standards or additional certifications but complies with RoHS directives to ensure environmental safety. Successive approximation register architecture for accurate analog to digital conversion.
Single 8-bit ADC channel with parallel data interface for quick readout. Sampling rate of 10 ksps suitable for moderate-speed applications. Surface mount 20-Pin SOIC package fits compact designs. Operational temperature from 0°C to 70°C supports industrial usage.
Voltage input type with minimum 5 V supply voltage for stable performance. Compact physical dimensions enable space-efficient PCB layout. Compliance with environmental standards ensures safe electronic integration.
This ADC from Texas Instruments is widely used in electronic component assemblies, semiconductor applications, data conversion modules, and embedded systems. For more products and components from Texas Instruments and other leading semiconductor brands, explore the respective categories on EnvMart.
