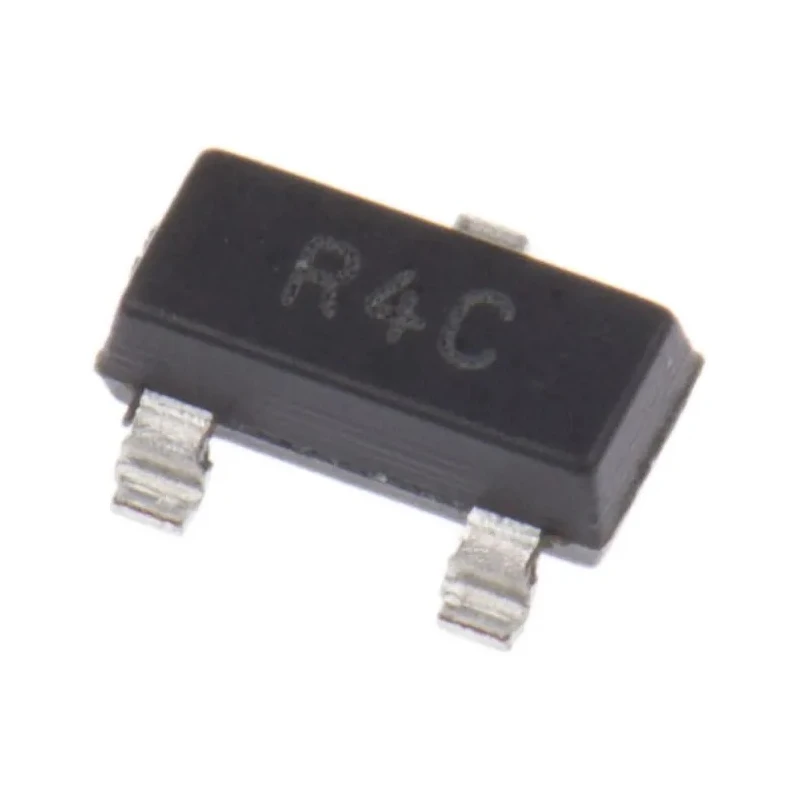

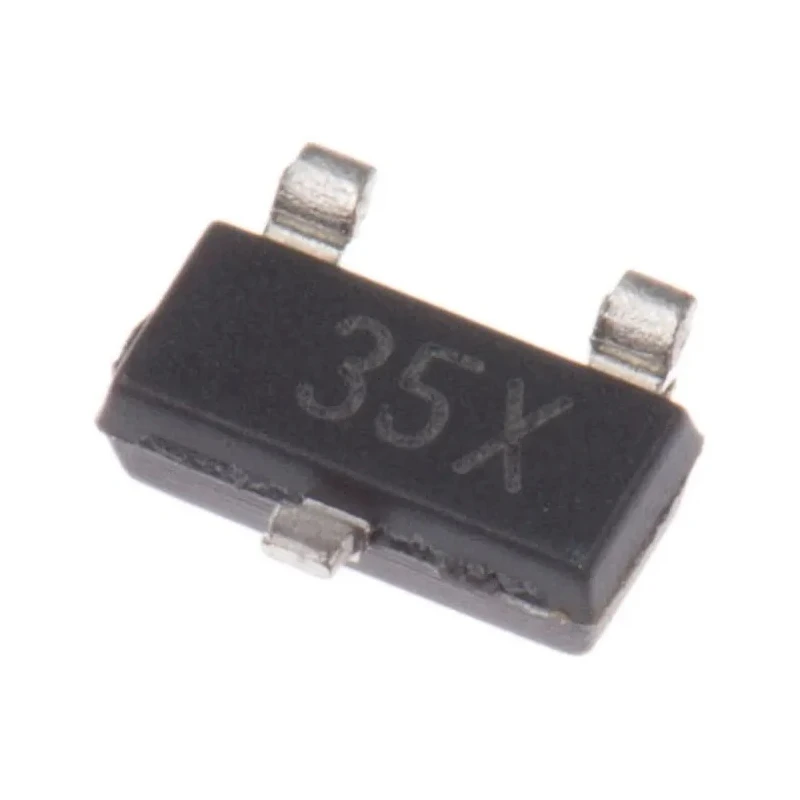

Texas Instruments Fixed Shunt Voltage Reference 4.1V ±0.5% 3-Pin SOT-23 LM4040CIM3-4.1/NOPB

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Fixed Shunt Voltage Reference 4.1V ±0.5% 3-Pin SOT-23 LM4040CIM3-4.1/NOPB

Name: Texas Instruments Fixed Shunt Voltage Reference 4.1V ±0.5% 3-Pin SOT-23 LM4040CIM3-4.1/NOPB
Brand: Texas Instruments
SKU: 195347
Price: 0.97 USD
Availability: InStock



Category Voltage References Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	930μm
Length	2.92mm
Model	LM4040CIM3-4.1/NOPB
Mount Type	Surface
Output type	Fixed
Series	LM4040
Temperature Coefficient	30 ppm/°C
Output Current	15mA
Topology	Shunt
Maximum Operating Temperature	85°C
Package Type	SOT-23
Load Regulation	7 mV
Minimum Operating Temperature	-40°C
Reference Type	Fixed
Maximum Input Voltage	5V
Minimum Input Voltage	4.1V
Pin Count	3
Automotive Standard	AEC-Q100
Reference Voltage	4.1V
Initial Accuracy	±0.5 %

Key Features

Features a fixed reference voltage of 4.1V with high precision.
Provides an output current capability of 15mA for stable operation.
Temperature coefficient of 30 ppm/°C ensures accuracy over temperature ranges.
Surface-mounted shunt topology suitable for compact designs.
Operates reliably from -40°C to 85°C for industrial applications.
Complies with AEC-Q100 automotive standard for robustness.
Load regulation of 7 mV maintains output stability under varying loads.
Compact dimensions with length 2.92mm and height 930μm.

Product Description

Texas Instruments LM4040CIM3-4.1/NOPB is a fixed shunt voltage reference IC designed for precise voltage regulation applications, delivering a stable 4.1V output with an initial accuracy of ±0.5%.

Encased in a compact 3-pin SOT-23 surface mount package, this voltage reference is ideal for electronics requiring accurate voltage reference with low temperature drift of 30 ppm/°C. Its shunt topology allows for precision current handling up to 15mA, suitable for industrial and automotive power management circuits.

The device operates efficiently within a temperature range of -40°C to 85°C and meets the automotive standard AEC-Q100, exemplifying its robust reliability in demanding environments.

Its load regulation specification of 7 mV ensures output stability under varying load conditions while supporting a maximum input voltage of 5V and a minimum of 4.1V. The small length of 2.92mm and height of 930μm enable space-saving PCB designs.

This voltage reference is widely used in industrial machines, laboratory instruments, and electronic control systems requiring high precision voltage stability. Its surface mount form factor facilitates automated assembly processes.

Features a fixed reference voltage of 4.1V with high precision. Provides an output current capability of 15mA for stable operation. Temperature coefficient of 30 ppm/°C ensures accuracy over temperature ranges. Surface-mounted shunt topology suitable for compact designs.

Operates reliably from -40°C to 85°C for industrial applications. Complies with AEC-Q100 automotive standard for robustness. Load regulation of 7 mV maintains output stability under varying loads. Compact dimensions with length 2.92mm and height 930μm.

Maximum input voltage rating is 5V with minimum input voltage of 4.1V. Three-pin configuration facilitates easy integration in circuits. Explore our wide category of Voltage References at EnvMart for more components to ensure precision and reliability in your electronic designs.
