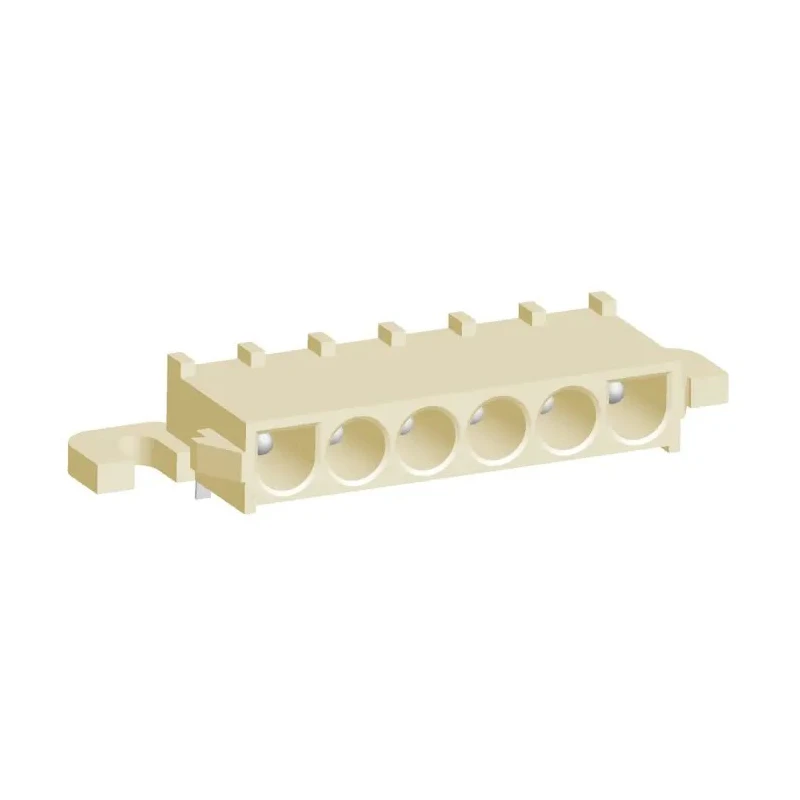

TE Connectivity Universal MATE-N-LOK Series Right Angle Through Hole PCB Header, 6 Contact(s), 6.35 mm Pitch, 1 Row 1969812-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 19A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | 0°C |
| Number of Rows | 1 |
| Pitch | 6.35mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with flame retardant nylon housing for durability and safety.
- Operates reliably from 0°C to 105°C temperature range.
- Supports up to 19A current and 600V voltage rating.
- Features phosphor bronze contacts with tin plating for excellent conductivity.
- Provides positive locking latch to secure mating connection and prevent accidental unmating.
- Polarized design prevents mismating and offers finger-proof egg-crate safety.
- Meets Glow Wire test requirements and UL 94 V-0 standards for flame retardancy.
- Designed for wire-to-board connections with solder termination.
Product Description
TE Connectivity 1969812-1 Universal MATE-N-LOK Series PCB Header is a high-quality right angle through hole header connector designed for demanding electronic applications. It features 6 contacts in a single row with 6.35 mm pitch, suitable for robust wire-to-board connections in various industries.
The housing is made from specially designed flame retardant nylon compliant with the Glow Wire test IEC 60335-1 and UL 94 V-0, providing high flammability resistance and safety. The contacts are fabricated from phosphor bronze with a tin plating to ensure excellent electrical performance and durability.
Operating temperature ranges from 0°C to 105°C, supporting up to 19A current and voltage up to 600V. The right angle orientation and through hole mount type enable secure PCB mounting. Positive locking latches ensure a reliable mating connection resistant to vibration and shock, while the polarized egg-crate design improves safety by preventing mismating and providing finger-proof protection.
These PCB headers are used in a wide range of industrial and commercial electronics including household appliances, desktop computers, HVAC systems, lighting, security systems, industrial controls, storage, and networking equipment.
Constructed with flame retardant nylon housing for durability and safety. Operates reliably from 0°C to 105°C temperature range. Supports up to 19A current and 600V voltage rating. Features phosphor bronze contacts with tin plating for excellent conductivity.
Provides positive locking latch to secure mating connection and prevent accidental unmating. Polarized design prevents mismating and offers finger-proof egg-crate safety. Meets Glow Wire test requirements and UL 94 V-0 standards for flame retardancy.
Designed for wire-to-board connections with solder termination. This product is made in China and is supplied new. It is highly recommended for electronic manufacturing, assembly, and maintenance requiring reliable, safe PCB connections.
Explore more PCB Headers and Electronic Components under the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 19A.
It has a voltage rating of 600V.
The pitch of the contacts is 6.35 mm.
The contacts are made from phosphor bronze with tin plating, while the housing is constructed from flame retardant nylon.
It operates reliably within a temperature range of 0°C to 105°C.
This unit features 6 contacts in a single row.
It is designed for solder termination.
Yes, it features a polarized design that prevents mismating and offers finger-proof egg-crate safety.
This model uses a through hole mounting type.
It is designed for wire-to-board connections.
Yes, it meets Glow Wire test requirements and UL 94 V-0 standards for flame retardancy.
This product is made in China.
