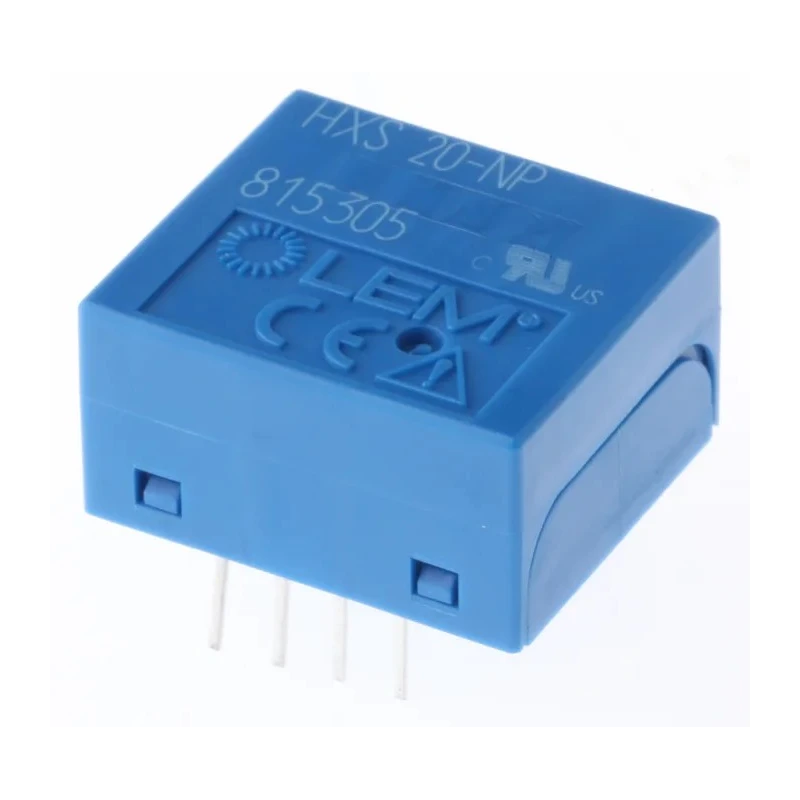

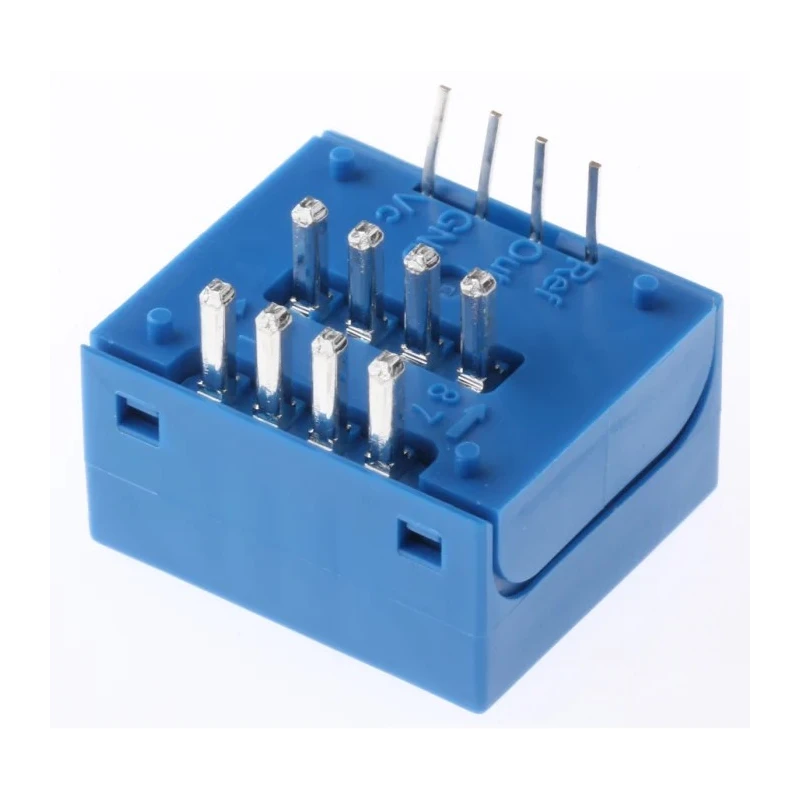

LEM HXS Series PCB Mounting Current Transformer 60A Primary Current 5V Supply Voltage HXS 20-NP

LEM HXS 20-NP is a PCB mounting current transformer designed for precise AC, DC, and mixed current measurement applications. It operates with a unipolar 5V supply voltage and low power consumption, featuring an extremely low profile ideal for space-constrained setups.

This current transducer utilizes proprietary ASIC technology, providing accuracy and reliability for industrial automation, process control, and electrical measurement systems. With a primary current rating of 60A, it supports a minimum operating frequency of 50kHz, making it well-suited for dynamic electrical environments.

The device features wire terminal connections and mounts directly on PCBs, facilitating seamless integration in equipment and control panels. Designed to endure harsh conditions, it operates reliably from -40°C to 105°C, ensuring robust performance across temperature extremes.

The transformer meets critical safety and quality standards including IEC 61010-1, EN 50178:1997, and carries the CE mark, underscoring compliance with international regulations. Compact and lightweight, measuring 14.2mm in length, 16.7mm in width, 18.7mm in depth, and weighing 10 grams, it minimizes impact on system size and weight.

This current transformer provides stable, accurate current sensing for industrial, laboratory, and process control applications. Its low power consumption and compact design enable energy-efficient and space-saving implementations.

Robust temperature tolerance guarantees reliable performance in demanding environments. Compliance with important international standards ensures safety and interoperability.

LEM’s HXS series represents a proven solution for current sensing needs within automation and industrial electrical systems. Explore the full range of LEM Current Transformers on EnvMart for comprehensive current measurement solutions.
