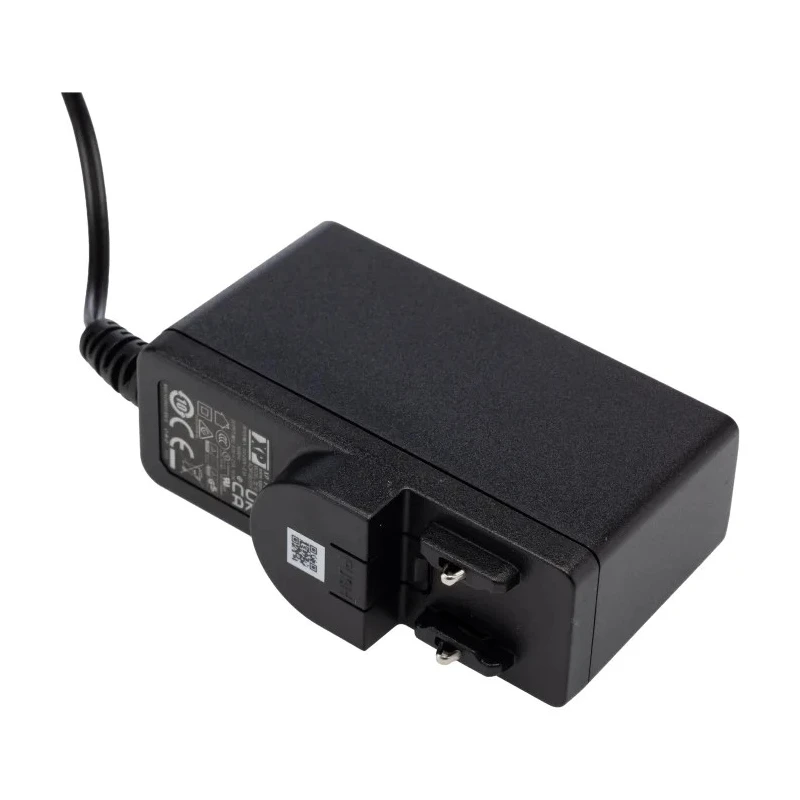

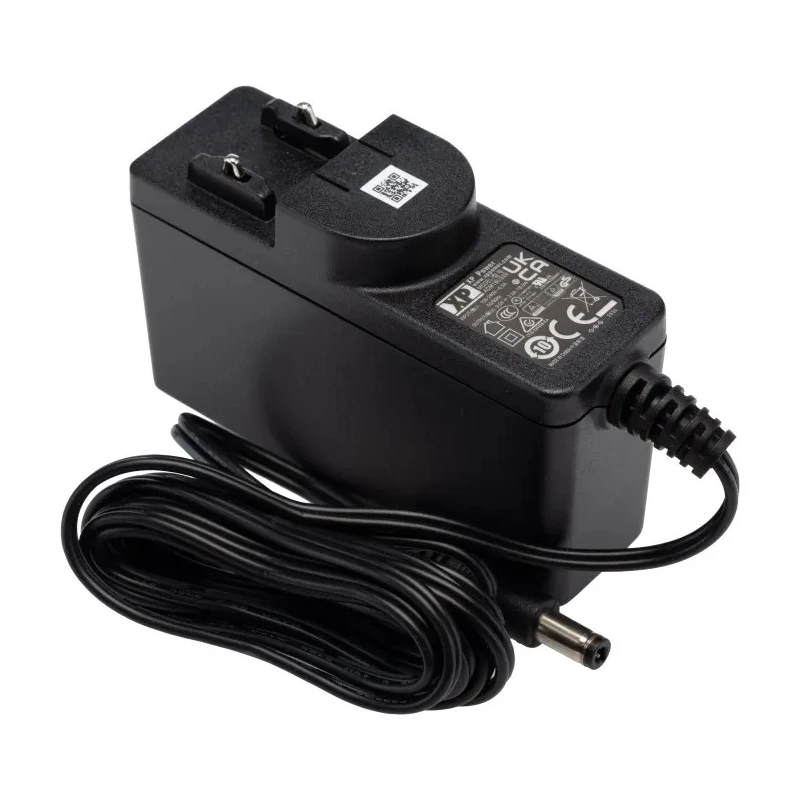

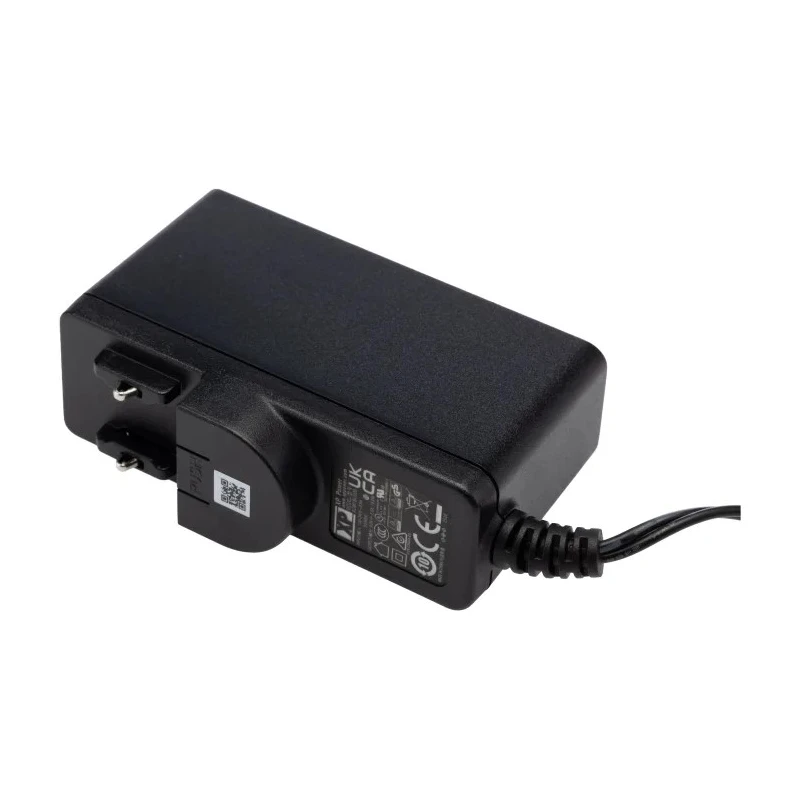

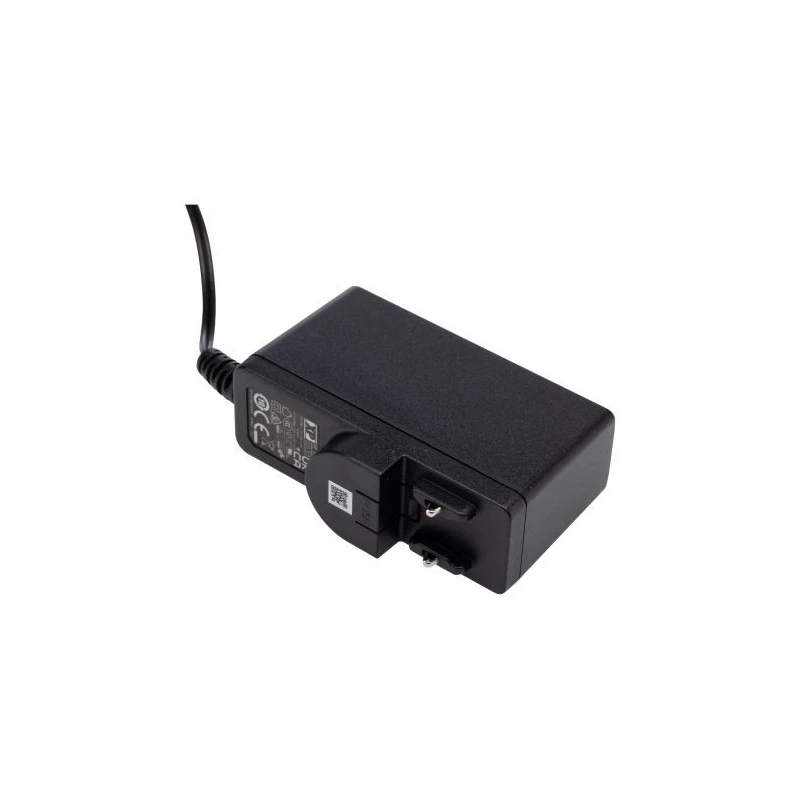

XP Power Interchangeable AC/DC Adapter 18W 9V dc Output 2A 2.1 x 5.5 x 11 mm Centre Positive ACM18US09
Specifications
| Country of Origin | India |
|---|---|
| Brand | XP Power |
| Power | 18W |
| Efficiency | 86.7% |
| Length | 88mm |
| Model | ACM18US09 |
| Depth | 49.5mm |
| Cable Length | 1.8m |
| Width | 30mm |
| Series | ACM18 |
| Maximum Operating Temperature | 60°C |
| Sub Type | AC/DC Adapter |
| Load Regulation | 5 % |
| Minimum Operating Temperature | 0°C |
| Plug Type | Interchangeable |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Output Voltage | 9V dc |
| Standards/Approvals | UL 60950-1, EN 60950-1, CE, CB |
| Minimum Input Voltage | 100V ac |
| Output Connector Type | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector Type | Universal Plug |
| Adapter Current | 2A |
| Energy Efficiency Level | VI |
| ACM PLUG UK | RS Code 1241938 |
| ACM PLUG US | RS Code 1241939 |
| ACM PLUG EU | RS Code 1241940 |
Key Features

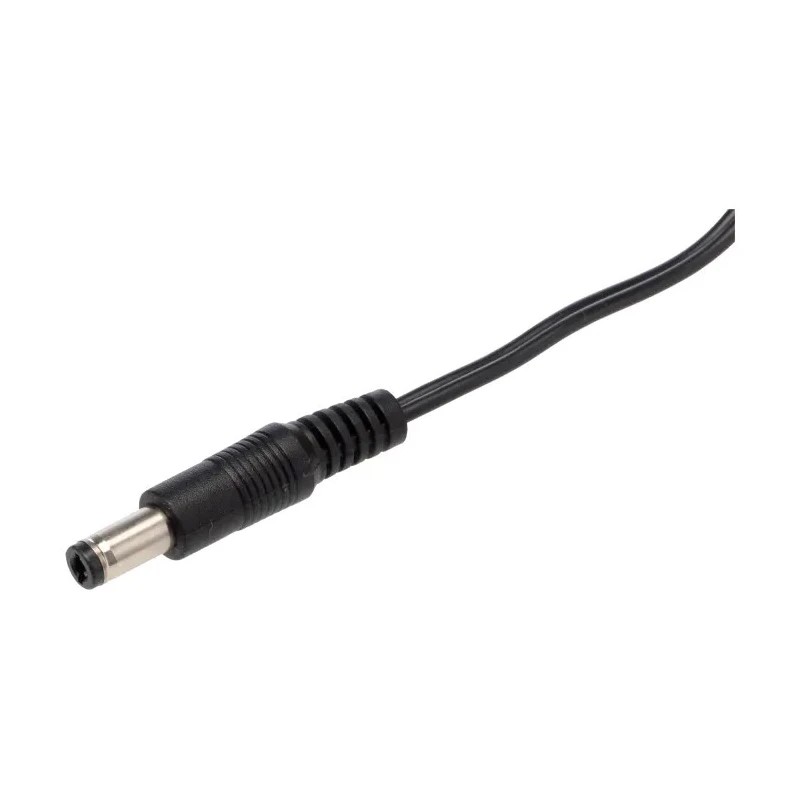

- Equipped with a 2.1 x 5.5 x 11 mm centre positive output connector.
- Suitable for industrial and medical applications requiring energy efficiency level VI compliance.
- Features a universal input connector with operating voltage range of 100V to 264V AC.
- Supplies a steady 2A adapter current with 86.7% efficiency.
- Compact design measuring 88mm length, 49.5mm depth, and 30mm width for space-saving installations.
- Operates efficiently within 0°C to 60°C temperature range ensuring reliable performance.
- Includes interchangeable AC mains plugs (UK, US, EU) sold separately to suit various regions.
- Meets industry standards UL 60950-1, EN 60950-1, CE, and CB certifications.
Product Description
XP Power ACM18US09 AC/DC Adapter is a versatile switch mode plug-in power supply designed for cost-sensitive industrial and medical equipment applications. Delivering 18 watts of power with a fixed 9V DC output at 2 amps, it features a center positive 2.1 x 5.5 x 11 mm connector compatible with numerous devices.
The adapter has a compact form factor with dimensions of 88mm length, 49.5mm depth, and 30mm width, making it suitable for installations where space is critical. It supports a universal input range from 100V to 264V AC with a maximum input current of 2A, offering flexibility across various power grids.
Operating efficiently between 0°C and 60°C, this adapter complies with stringent energy efficiency level VI standards, assuring low power losses and cost-effective operation. It carries approvals from UL 60950-1, EN 60950-1, CE, and CB, underscoring its safety and performance in demanding industrial environments.
Interchangeable mains plugs for UK, US, and EU configurations can be ordered separately, enabling adaptability for global use. The plug-in power supply’s switch mode design enables low no-load power consumption and reliable active mode efficiency, making it an excellent choice for applications in laboratory, medical, manufacturing, and commercial sectors.
Equipped with a 2.1 x 5.5 x 11 mm centre positive output connector. Complies with Energy Efficiency Level VI for optimal power consumption. Universal input voltage range from 100V to 264V AC. Operates in environments with temperatures from 0°C to 60°C.
Compact dimensions of 88mm x 30mm x 49.5mm support flexible installation options. Approved by UL, EN, CE, and CB standards for safety and reliability. Interchangeable mains connectors available separately for regional compatibility.
High efficiency of 86.7% reduces energy waste during operation.
XP Power ACM18US09 AC/DC Adapter is ideal for industrial power supply needs, including medical devices, laboratory instruments, manufacturing equipment, and general commercial electronics. For those looking for a reliable, energy-efficient power solution, this adapter offers performance, safety, and worldwide usability. Explore more AC/DC Adapters at EnvMart to find the perfect power solution for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adapter provides a fixed output voltage of 9V DC and a maximum output current of 2A.
It has an efficiency rating of 86.7%, which helps reduce energy waste during operation.
The dimensions of the adapter are 88mm in length, 49.5mm in depth, and 30mm in width, making it compact for installations.
It operates efficiently within a temperature range of 0°C to 60°C.
It features a 2.1 x 5.5 x 11 mm centre positive output connector.
This model is certified with UL 60950-1, EN 60950-1, CE, and CB standards, ensuring safety and compliance.
Interchangeable mains plugs for UK, US, and EU configurations are sold separately and are not included with the adapter.
The maximum input current is 2A.
It is suitable for industrial and medical applications, including laboratory instruments and commercial electronics.
The load regulation for this model is specified at 5%.
The adapter is manufactured in India.
