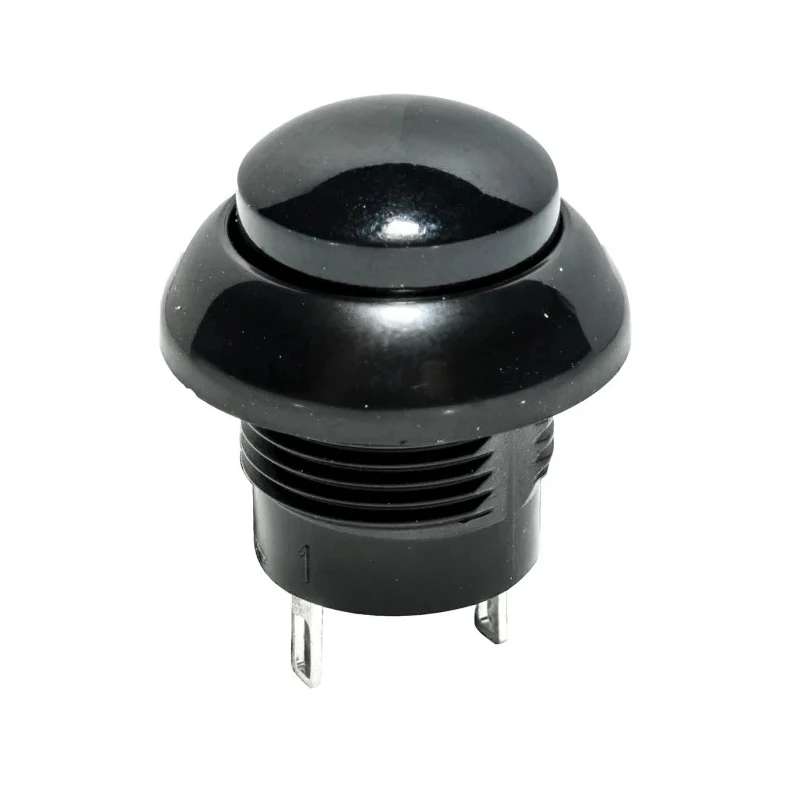

C & K PNP Series Push Button Switch 12.3 mm Cutout, Momentary, Panel Mount, SPST, Black, IP68, 32 V DC, PNP8S2D2Y03QE
Specifications
| Country of Origin | China |
|---|---|
| Brand | C & K |
| Model | PNP8S2D2Y03QE |
| IP Rating | IP68 |
| Mount Type | Panel |
| Series | PNP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.3 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 32V dc |
| Actuator Style | Round |
| Switch Contact Current | 5A |
Key Features
- Momentary push button switch for panel mounting.
- IP68 sealed construction for harsh environments.
- Black round actuator with 12.3 mm cutout size.
- SPST contact configuration for reliable signal or power switching.
- Solder terminal design simplifies wire installation.
- Supports up to 32 V DC and 5A contact current.
- Wide operating temperature range from -40°C to 85°C.
- RoHS compliant for environmental safety.
Product Description
The C & K PNP8S2D2Y03QE Push Button Switch is a high-performance panel mount switch, engineered for demanding industrial, automotive, and control applications. This switch belongs to the PNP series, known for reliability and longevity in both miniature and ultra-miniature device requirements.
It features a momentary operation mechanism, ideal for tasks where a brief engagement is required, such as control panels, industrial instruments, or heavy equipment. The actuator is black, round, and requires a 12.3 mm panel cutout for installation. Its SPST (Single-Pole Single-Throw) contact configuration delivers straightforward functionality for signal or power switching. The switch supports a maximum contact voltage of 32 V DC and a current rating of 5A, making it suitable for robust control tasks.
Engineered to withstand harsh environments, the IP68 rating ensures protection against dust and long-term immersion in water, enabling dependable performance in off-road vehicles, lifts, heavy machinery, and other demanding settings. The solder terminal design facilitates easy and secure wire installation during panel assembly.
Operational flexibility is provided by its wide temperature range, from -40°C up to 85°C, making this switch suitable for both outdoor and indoor industrial applications. The switch is compliant with RoHS environmental standards, adding to its suitability for safety-critical and modern installations. The product's mechanical endurance is underlined by a long life cycle and sealed construction, minimizing downtime and maintenance.
Typical use cases include control grips, off-road panels, industrial instruments, lifts, and heavy equipment dashboards. Its versatility and reliability position it as an optimal choice for engineers and panel designers seeking robust push-button switches. For more in-depth options, explore other panel mount and Push Button Switches in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact voltage for this model is 32 V DC.
It features a Single-Pole Single-Throw (SPST) contact configuration.
This switch requires a panel cutout size of 12.3 mm for installation.
The operating temperature range for this switch is from -40°C to 85°C.
It uses solder terminals for wire installation.
The actuator of this model is black.
It can handle a contact current of up to 5A.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This model provides momentary operation, suitable for brief engagements.
It is suitable for control panels, industrial instruments, off-road vehicles, lifts, and heavy equipment dashboards.
The country of origin for this switch is China.
