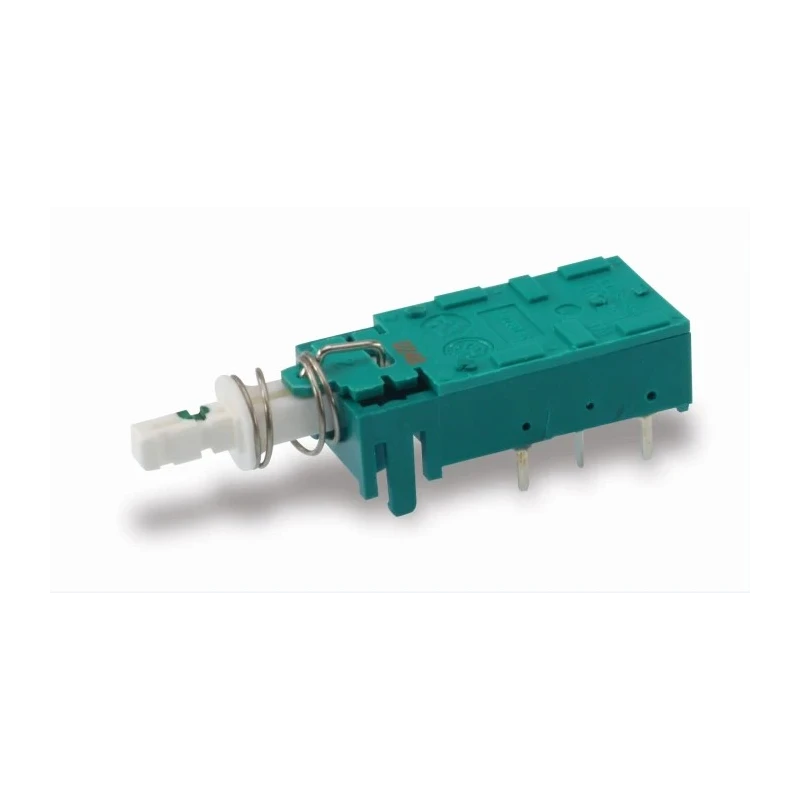

C & K NE-18 Series DPST Latching Push Button Switch, Through Hole, 100V DC, 250V AC, 6A, White Actuator NE182AEESNP6AMP

Name: C & K NE-18 Series DPST Latching Push Button Switch, Through Hole, 100V DC, 250V AC, 6A, White Actuator NE182AEESNP6AMP
Brand: C & K
SKU: 80920
Price: 15.47 USD
Availability: InStock



Category Push Button Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Model	NE182AEESNP6AMP
Mount Type	Through Hole
Contact Material	Copper alloy
Series	NE-18
Maximum Operating Temperature	70°C
Contact Configuration	DPST
Switch Configuration	DPST
Terminal type	Solder
Standards/Approvals	UL, ENEC, cULus
Switch Operation	Latching
Actuator Colour	White
Contact DC Voltage	100V dc
Actuator Style	Button
Switch Contact Current	6A
Contact AC Voltage	250V ac
Correspondence of C&K NE18 Series PartNumbers	See Technical Reference above

Key Features

Designed for panel and PCB through hole mounting.
Features double-pole single-throw (DPST) latching operation.
Supports voltage ratings up to 100V DC and 250V AC.
Rated for a maximum current of 6A.
White actuator style with button design.
Solder terminal type for secure electrical connectivity.
Operating life up to 1,000,000 cycles for reliable performance.
Maximum operating temperature of 70°C.

Product Description

The C & K NE182AEESNP6AMP is a robust push button switch from the NE-18 Series, engineered for reliable latching control in industrial and commercial systems. Featuring a double-pole single-throw (DPST) configuration, this switch allows two circuits to operate simultaneously when actuated. Its latching mechanism ensures the maintained state between actuations, making it suitable for operations requiring sustained contact without continuous user engagement.

With support for both 100V DC and 250V AC voltage ranges, the NE182AEESNP6AMP is capable of controlling a diverse array of devices or circuits. The 6A maximum contact current accommodates moderate power switching for instrumentation, industrial interface, and audio selection applications. The actuator is a white button style, ergonomically designed for easy actuation and clear visibility in panel layouts.

This switch is intended for through hole mounting, offering straightforward integration onto PCBs or panel configurations. Solder terminals provide reliable, low-resistance electrical connections. Constructed with copper alloy contacts, the NE182AEESNP6AMP delivers durability and consistent performance, with an operational lifespan rated up to 1,000,000 cycles under typical use conditions.

Suitable for commercial and medical interface systems, this push button switch complies with major global standards including UL, ENEC, and cULus. It is non-illuminated, ensuring low-profile installation where indicator lighting is not required. The device is capable of functioning up to a maximum temperature of 70°C, making it ideal for demanding environments where thermal stability is essential.

Typical applications include control panels, interface boards, medical equipment, audio selection consoles, and industrial automation systems. The NE182AEESNP6AMP provides reliable human-machine interface support for tasks requiring clear, sustained switching. The quality and compliance certifications ensure readiness for regulated environments.

For more options and technical details, browse the Push Button Switch category on EnvMart for NE-18 Series variants and other industrial-grade switch solutions from C & K.
