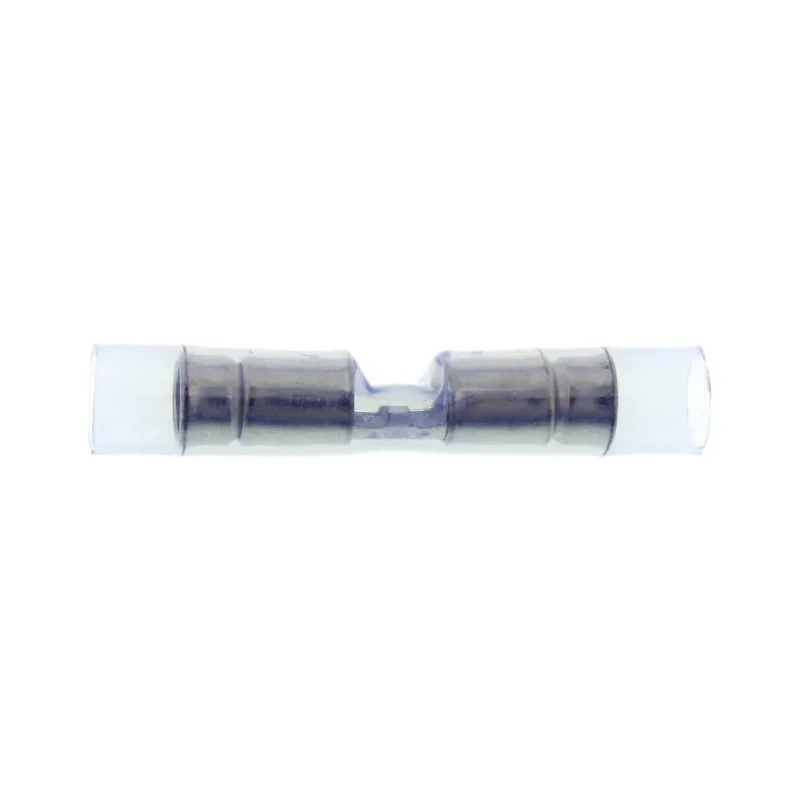

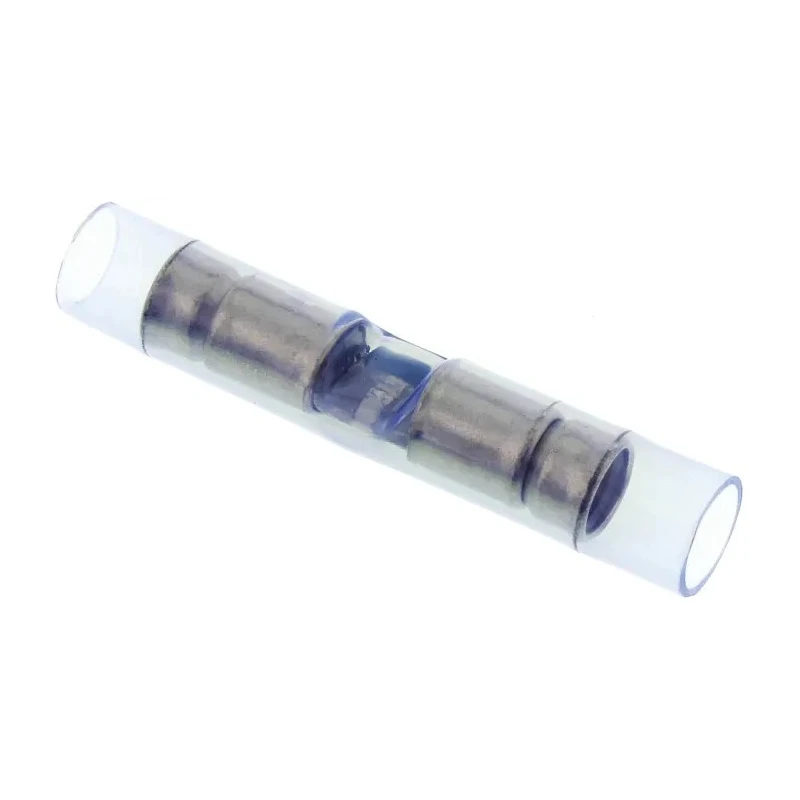

TE Connectivity PIDG Butt Splice Connector Blue Insulated Tin 16 AWG 320562

TE Connectivity 320562 PIDG Butt Splice Connector is a pre-insulated diamond grip wire crimp splice terminal engineered for consistent and reliable electrical connections. This product offers a precision-formed copper body and barrel with a tin-plated contact, surrounded by a copper and blue nylon insulation sleeve, designed to optimize wire insulation support upon crimping.

The butt splice design and serrations inside the wire barrel provide excellent electrical contact and tensile strength. The nylon sleeve is color-coded blue to denote compatibility with a maximum wire size of 16 AWG and minimum size of 22 AWG, aiding in easy and clear wire size identification and proper tooling selection.

Compliant with RoHS standards, the connector ensures the use of environmentally friendly materials and meets stringent regulatory requirements. Manufactured in the United States, it guarantees high quality and performance suitable for critical applications in aerospace, industrial machinery, control instruments, lighting systems, power supplies, motors, and transportation equipment.

The overall length of 32.13 mm and diameter of 3.81 mm provide a compact and effective solution for wire splice projects, improving connection reliability and durability in demanding environments.

High conductivity copper body enhances electrical performance and reduces resistance. Copper sleeve offers improved insulation support, preventing wire fraying and conductor breaks. Serrated barrel inside increases contact surface for firm and durable crimps.

Blue nylon insulation sleeve ensures easy wire size identification and consistent crimping results. Designed to produce uniform insulation thickness under crimping pressure. Compatible with wire sizes ranging from 22 AWG to 16 AWG.

Ideal for use in instruments, lighting, aerospace, transportation, panel boxes, and power supply assemblies. Meets or exceeds MIL-T-7928, Type II, Class 1 and 2 requirements. Explore more precision connectors and terminals at EnvMart to meet all your electrical wiring and industrial application requirements.
