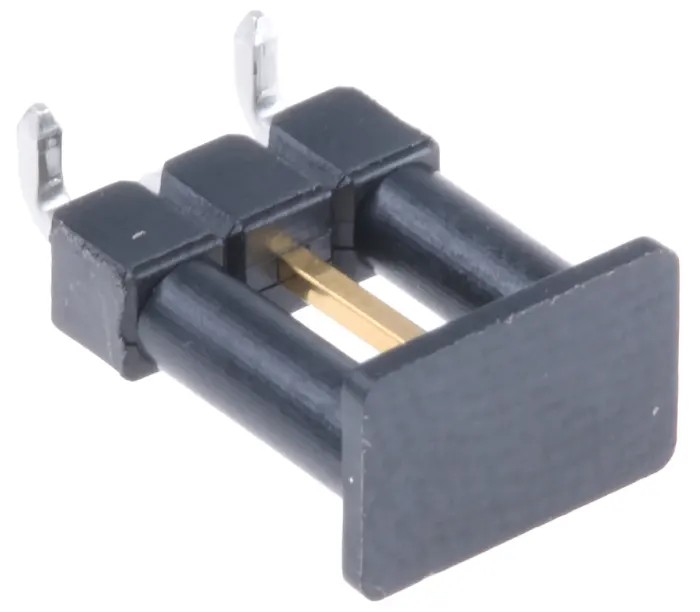

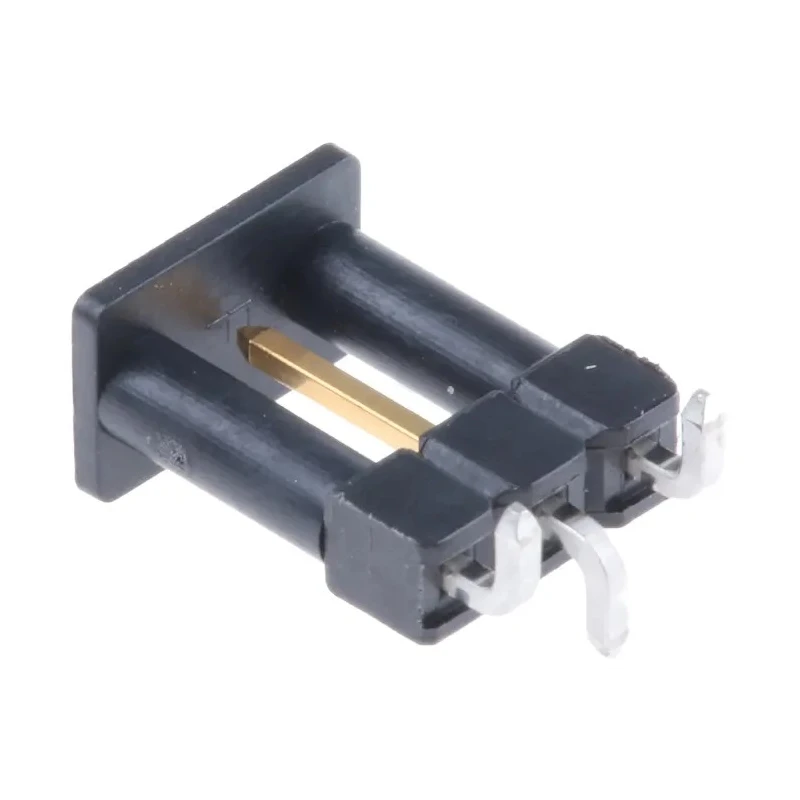

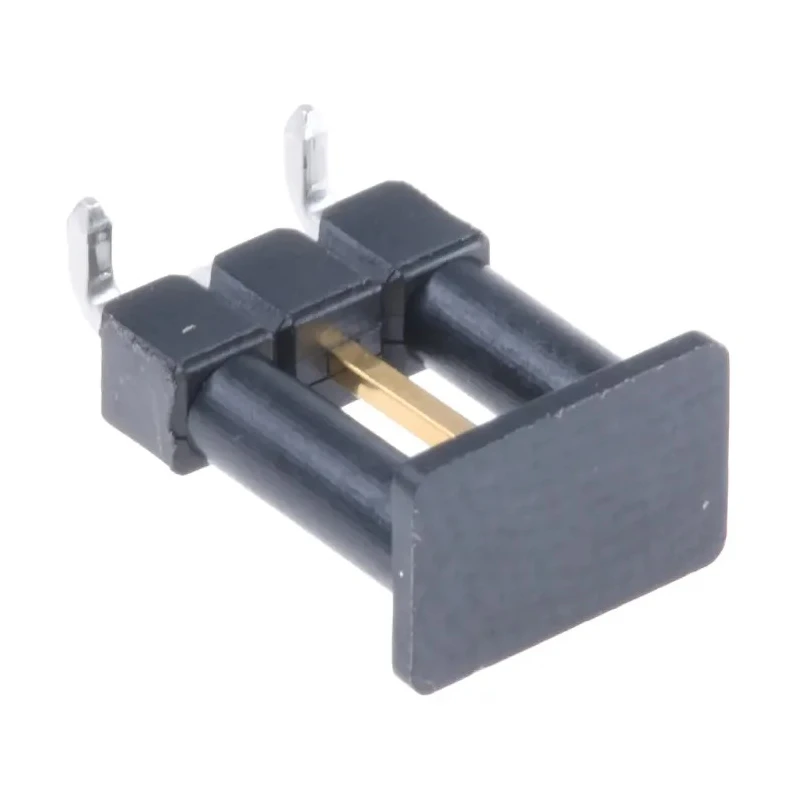

TE Connectivity AMPMODU MOD II Series Straight Surface Pin Header 3 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 1241150-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Glass Filled Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.8mm |
Key Features
- Constructed from durable glass filled polycyclohexylenedimethylene terephthalate housing.
- Phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.
- Surface mount configuration with straight orientation for versatile PCB applications.
- Supports a maximum current of 3A with operating temperature range from -65°C to 105°C.
- Mating pin length of 5.8 mm facilitates secure connections.
- Features a solder termination type for robust PCB assembly.
- Capable for use in automotive, industrial, telecommunications, and medical electronics.
- Modular breakaway design allows for customized pin header lengths.
Product Description
TE Connectivity 1241150-3 AMPMODU MOD II Series Straight Surface Pin Header is a high-quality single row unshrouded breakaway PCB Pin Header with 3 contacts and a standard 2.54 mm pitch. Its robust glass filled polycyclohexylenedimethylene terephthalate housing provides excellent mechanical stability and electrical insulation.
This pin header uses phosphor bronze contacts with gold plating, delivering reliable electrical performance and resistance to corrosion over a wide temperature range from -65°C to 105°C. The contacts have a mating pin length of 5.8 mm and employ a solder termination type, making it suitable for surface mount technology (SMT) applications with straight orientation on printed circuit boards.
The AMPMODU MOD II interconnect system is widely recognized for its versatility and cost-efficiency, supporting multiple configurations for board-to-board and wire-to-board connections in demanding industrial environments.
Durable glass filled polycyclohexylenedimethylene terephthalate housing enhances product longevity. Gold plated phosphor bronze contacts ensure excellent signal conductivity. Supports up to 3A current under continuous operation.
Operating temperature range spans from -65°C to 105°C, suitable for harsh environmental conditions. Mating pin length of 5.8 mm for secure and reliable connections. Single-row unshrouded design facilitates flexible circuitry layouts.
Surface mount straight orientation supports easy PCB integration. Suitable for automotive controls, industrial and test equipment, telecommunications, medical instruments, and computing applications.
The modular breakaway design allows users to customize pin header lengths to exact requirements, saving installation time and optimizing panel design. This pin header provides an economical and reliable solution for many electronic connector needs across transportation, manufacturing, healthcare, and communications sectors.
Discover more PCB connectors and related electronic components at EnvMart to meet your industrial and manufacturing project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a maximum current of 3A under continuous operation.
The operating temperature range for this pin header spans from -65°C to 105°C.
The contacts are made from phosphor bronze and are plated with gold to ensure excellent conductivity and corrosion resistance.
It employs a solder termination type, making it suitable for surface mount technology applications.
The pitch of this pin header is 2.54 mm.
This model features 3 contacts in a single row configuration.
The mating pin length is 5.8 mm, facilitating secure connections.
This pin header has a straight orientation, suitable for versatile PCB applications.
It is suitable for automotive, industrial, telecommunications, and medical electronics applications.
The housing is constructed from durable glass filled polycyclohexylenedimethylene terephthalate.
This model is unshrouded, allowing for flexible circuitry layouts.
The country of origin for this pin header is India.
