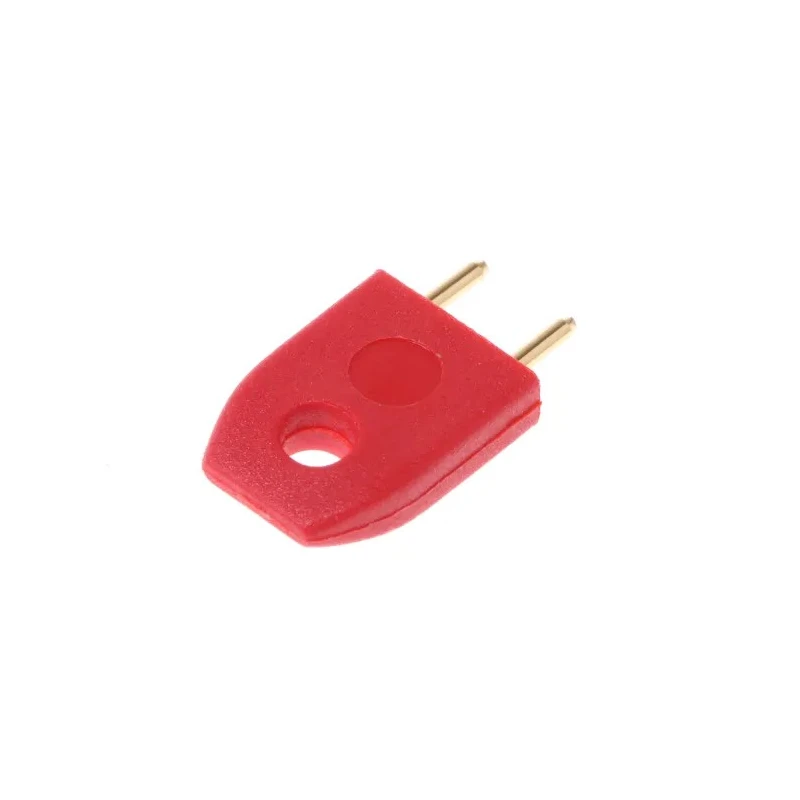

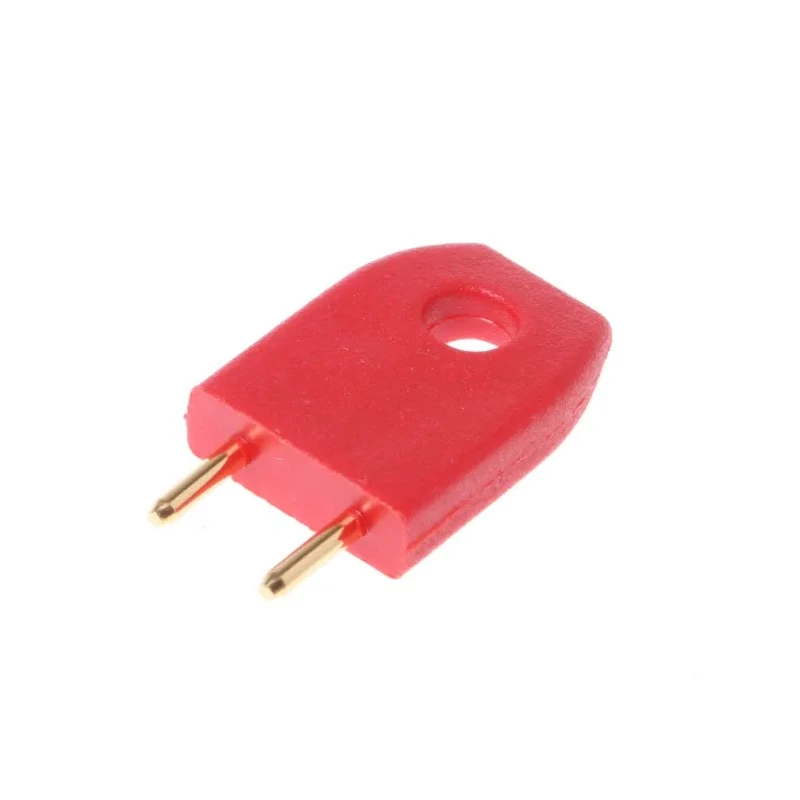

HARWIN D308 Shorting Link Straight Male Red Closed Top 2 Way 1 Row 5.08 mm Pitch D3086-99
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Colour | Red |
| Orientation | Straight |
| Current | 10A |
| Length | 9.5mm |
| Model | D3086-99 |
| Depth | 3.2mm |
| Width | 12.7mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | D308 |
| Sub Type | Closed Top |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- Features a durable polybutylene terephthalate housing.
- Provides 10A current capacity suitable for robust applications.
- Contacts are made of brass with gold plating for reliable conductivity.
- Compact size with length of 9.5 mm and width of 12.7 mm.
- Designed with straight orientation to fit standard PCB sockets.
- Single row, 2 contact points provide stable electrical connections.
- Colour coded red housing for easy identification in assemblies.
- Conforms to high-quality industrial standards without specific approvals.
Product Description
HARWIN D3086-99 Shorting Link belongs to the D308 series of high-performance electrical connectors. This model features a straight male connector design with a robust polybutylene terephthalate housing that is both insulated and color-coded red for straightforward identification. The closed top design ensures safe and reliable shorting capabilities in various electronic applications.
It is configured as a 2 way, 1 row connector with a 5.08 mm pitch, and supports currents up to 10 amps, making it ideal for medium-current PCB jumper and shunt uses. The contacts are precision-manufactured brass components with gold plating, which improves electrical conductivity and corrosion resistance, ensuring long-term reliable performance in industrial and commercial systems.

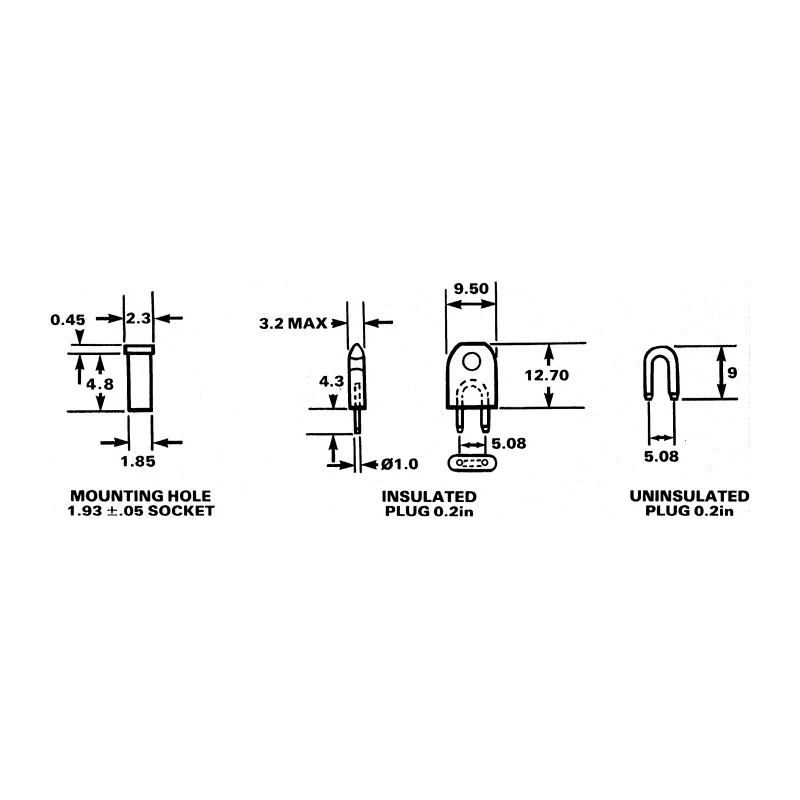

The connector's compact dimensions, including a length of 9.5 mm, width of 12.7 mm, and depth of 3.2 mm, make it suitable for tight PCB layouts while maintaining excellent mechanical stability. Its straight orientation facilitates easy integration with PCB sockets commonly used in hardware programming and electronic circuit prototyping.

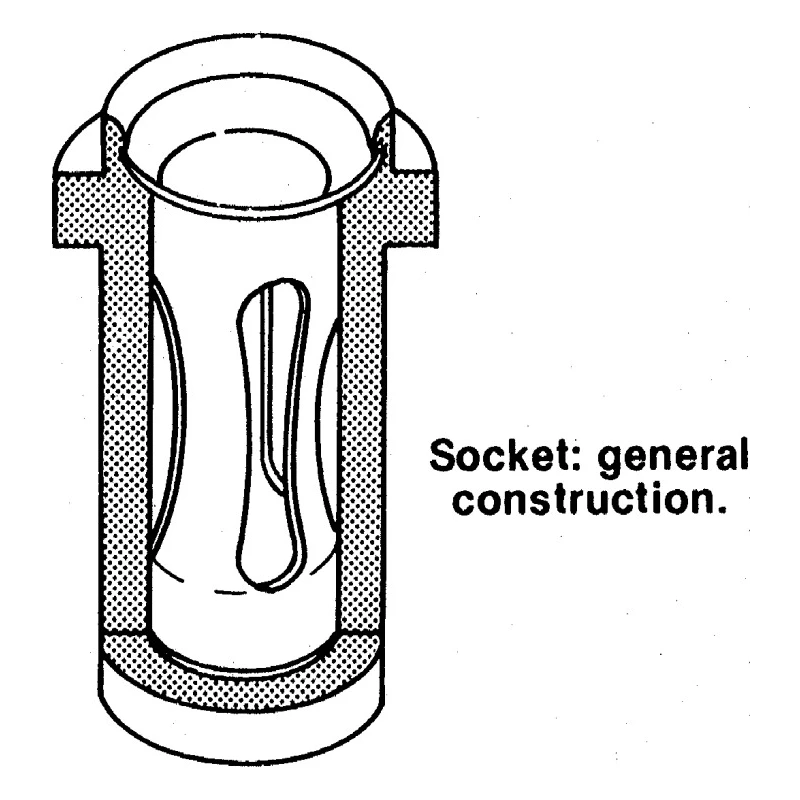

The insulated design of the D3086-99 is best used with PCB sockets rather than direct soldering, which is reserved for uninsulated variants. It is utilized in various industries including electronics manufacturing, telecommunications, instrumentation, and power distribution systems where reliable jumper and shunt connections are required.
Durable polybutylene terephthalate housing enhances insulation and durability. Gold plated brass contacts provide superior conductivity. 5.08 mm pitch fits standard socket connectors. 10A current rating supports medium power applications.
Compact dimensions allow easy PCB mounting and wiring. Red color coding aids identification and reduces wiring errors. Straight male connector orientation for compatibility with standard connectors. Ideal for PCB sockets in programming and prototyping use cases.
Discover more electronic connectors and insulating solutions in the Connectors category at EnvMart, featuring trusted brands like HARWIN for your industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 10A, making it suitable for medium-current applications.
The HARWIN D3086-99 has a length of 9.5 mm, a width of 12.7 mm, and a depth of 3.2 mm.
It features a pitch of 5.08 mm, which is compatible with standard socket connectors.
The housing is made from polybutylene terephthalate, while the contacts are brass with gold plating for improved conductivity.
This connector is configured with 2 contact points in a single row.
The HARWIN D3086-99 has a straight orientation, designed to fit standard PCB sockets.
No, this model is insulated and is best used with PCB sockets rather than for direct soldering.
The housing is color-coded red for easy identification in assemblies.
This connector is utilized in electronics manufacturing, telecommunications, instrumentation, and power distribution systems.
It belongs to the D308 series of high-performance electrical connectors.
It is designed for medium-current PCB jumper and shunt applications.
This product is manufactured in India.
