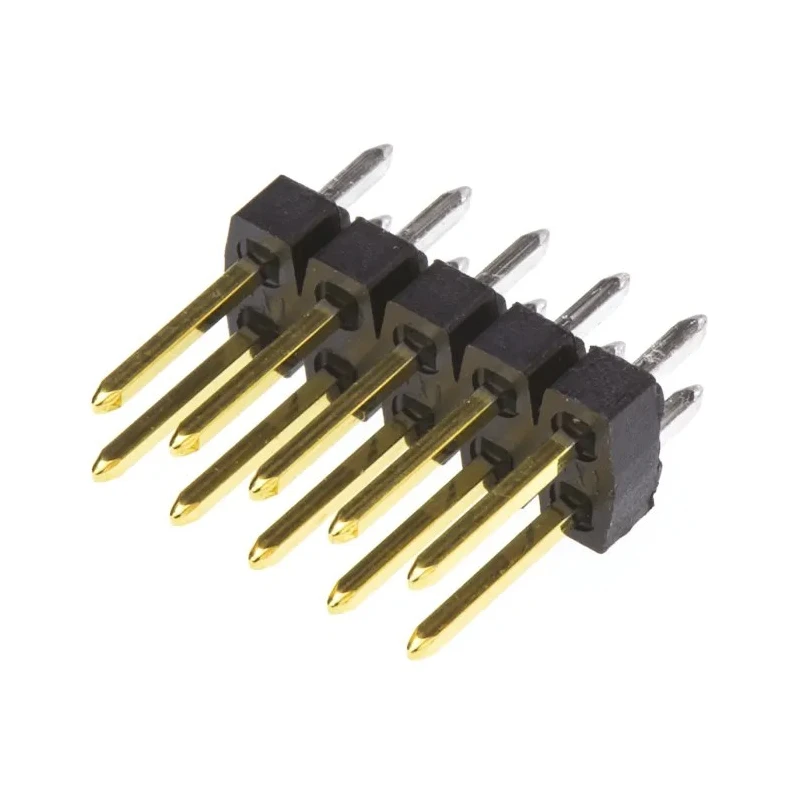

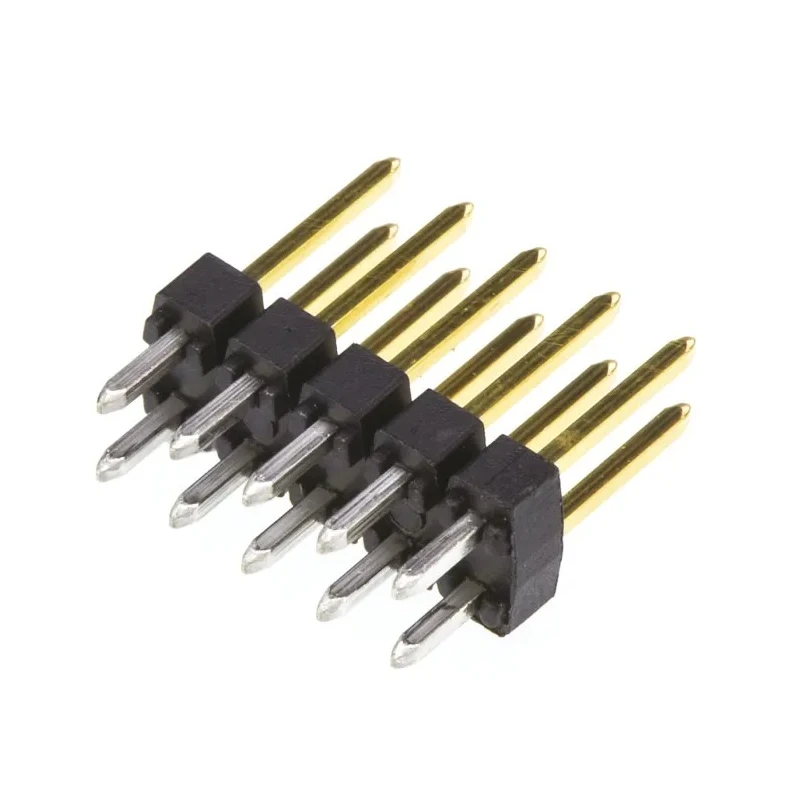

Molex C-Grid III Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 90131-0765

Molex 90131-0765 C-Grid III Series Straight Through Hole Pin Header is a 10-contact, 2-row, unshrouded PCB connector designed for wire-to-board applications with a 2.54 mm pitch. This high-quality header features a breakaway design allowing engineers to cut the header to size to meet flexible design requirements. Constructed from brass contacts with gold plating, it ensures excellent conductivity and resistance to corrosion.

The pins have a high retention force providing a reliable secure mating connection, and once soldered onto the PCB, the header offers superior mechanical stability. Rated for a current of 3 amperes and voltage up to 350 volts, it is suitable for demanding environments including industrial, computer, medical, consumer, telecommunications, and transportation sectors.

Operating temperature ranges from -55°C to 125°C, allowing for use in varied thermal conditions. The header uses a through hole mount type with male contact gender and is compatible with corresponding C-Grid III series PCB sockets and crimp housings, facilitating both board-to-board and wire-to-board connections. Its tail pin length is 2.9 mm, with a mating pin length of 6.75 mm ensuring secure connections.

The unshrouded design caters to applications where ease of access and inspection is necessary. This header complies with the DIN 41651 and HE13/14 standards, supporting reliability and quality assurance in electronic assembly.

This product supports applications such as desktop PCs, servers, medical equipment, telecommunications devices, industrial equipment, white goods, and automotive safety systems, establishing its versatility across multiple industries.

Features a breakaway design allowing customization to desired size. Pins offer high retention force ensuring a secure mating connection. High mechanical stability once soldered to PCB. Suitable for industrial, computer, medical, consumer, telecommunications, and transportation applications.

Operates within temperature range -55°C to 125°C. Contact material fabricated from brass with gold plating for durability. Designed for a rated current of 3A and voltage of 350V. Through hole mount type with male contact gender.

Compatible with C-Grid III PCB sockets and crimp housings for diverse interconnection needs. Tail pin length of 2.9 mm and mating pin length of 6.75 mm for secure fit. Explore our broad catalog of PCB Pin Headers and related electronic components on EnvMart for your industrial, manufacturing, and electronic design needs.
