Celduc Magnetic Proximity Sensor Rectangular Body Style IP67 48V AC 0.5A

Free Delivery in India | Lowest Global Shipping Charges

Celduc Magnetic Proximity Sensor Rectangular Body Style IP67 48V AC 0.5A

Name: Celduc Magnetic Proximity Sensor Rectangular Body Style IP67 48V AC 0.5A
Brand: Celduc
SKU: 170234
Price: 10.38 USD
Availability: InStock



Category Magnetic Proximity Sensor Brand Celduc Condition New

Specifications

Country of Origin	France
Brand	Celduc
Length	23.12mm
Model	IP67
Depth	4.2mm
IP Rating	IP67
Width	4.2mm
Series	PHC
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Switching Current	0.5A
Switching Frequency	150Hz
Terminal type	Through Hole
Body Style	Rectangular
Output Function	NO/NC
Standards/Approvals	RoHS
Switching DC Voltage	100V dc
Switching AC Voltage	48V ac

Key Features

Rectangular body style for easy PCB mounting.
Designed for use with 48V AC systems and 0.5A switching current.
High switching frequency of 150Hz supports rapid signal changes.
Durable IP67 rated housing provides excellent dust and water resistance.
Operating temperature range from -40°C to 100°C for versatile environments.
Through hole terminal type supports secure and reliable connections.
Miniature reed sensor ideal for PCB installation and precise proximity detection.
Manufactured in France with compliance to RoHS standards.

Product Description

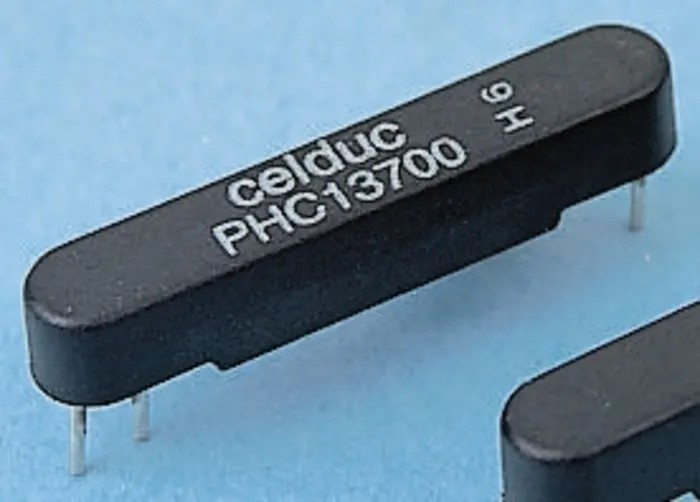

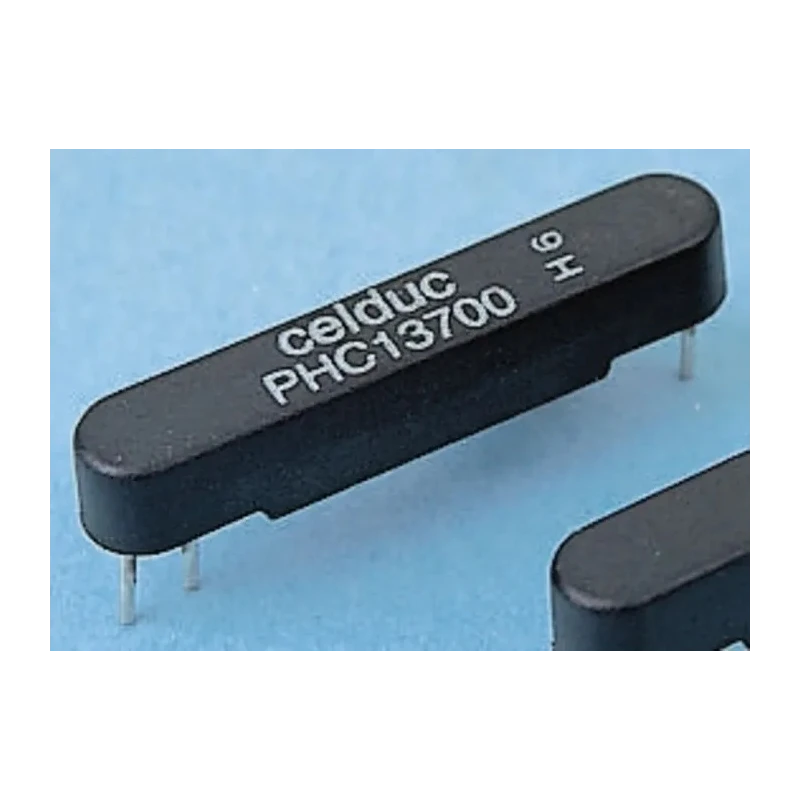

Celduc PHC13700 is a magnetic proximity sensor featuring a rectangular body style and protection rating of IP67, suitable for use in industrial and electronic automation applications at 48V AC voltage and 0.5A switching current.

This sensor is designed with a miniature reed switch with through-hole terminals, making it easy to mount on printed circuit boards (PCBs) in automated control systems and position sensing environments.

Key functional parameters include a maximum switching frequency of 150Hz, enabling rapid switching operations in complex automation setups. The device supports both normally open and normally closed (NO/NC) output functions for diverse control system needs.

Celduc PHC13700 operates reliably in harsh environments due to its IP67 enclosure rating, offering dust-tight protection and resistance to water immersion. It withstands ambient temperatures from -40°C up to 100°C, suitable for many industrial and laboratory conditions.

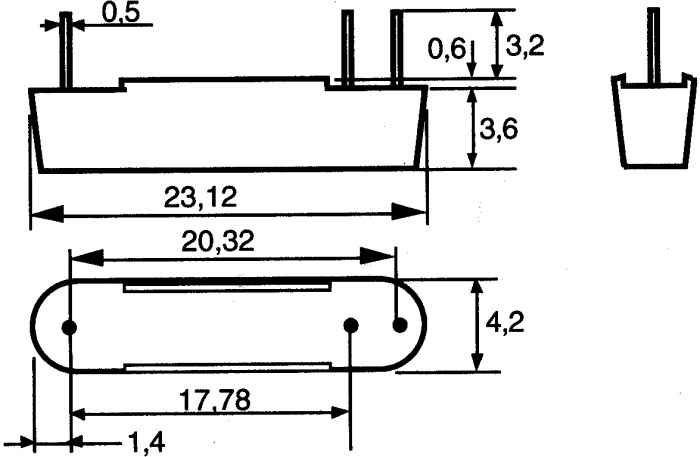

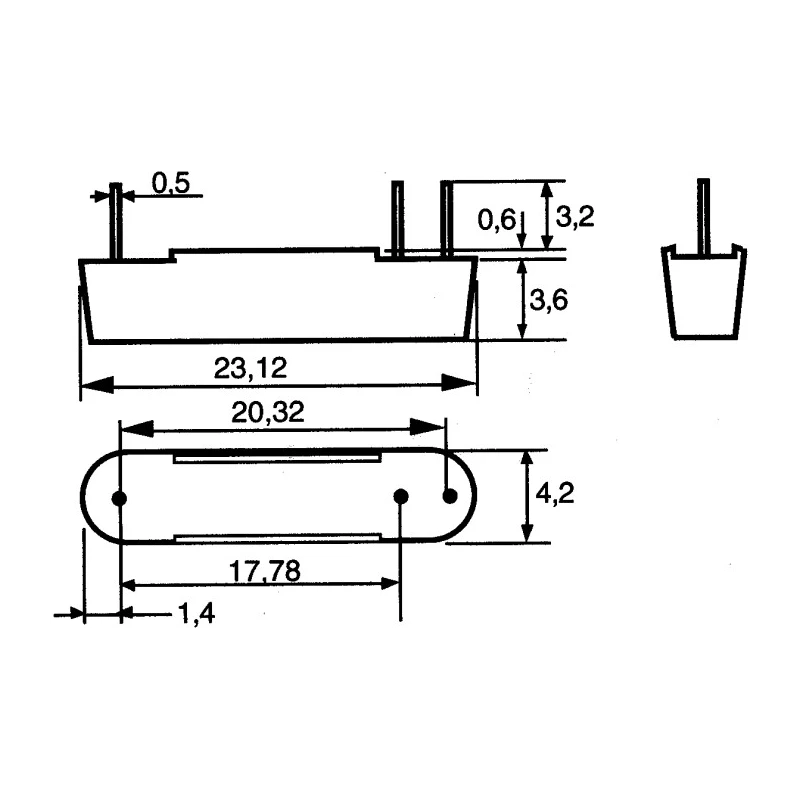

With compact physical dimensions of 23.12mm length and 4.2mm width and depth, the sensor provides an efficient footprint on PCBs for space-sensitive installations. This product complies with RoHS standards, confirming its environmental safety. Made in France, it reflects high-quality manufacturing standards for magnetic proximity detection.

Rectangular body style for PCB mounting applications. IP67 rated enclosure for industrial durability. Supports 48V AC voltage and 0.5A switching current. 150Hz switching frequency allows fast signal response. Operating temperature range from -40°C to 100°C.

Through-hole terminal type ensures reliable electrical connection. Miniature reed switch technology suitable for precise proximity sensing. Output functions include normally open and normally closed types. RoHS compliant and made in France for quality assurance.

Compact size suitable for dense PCB layouts.

This Celduc Magnetic Proximity Sensor is ideal for integration in electronic manufacturing, automation systems, industrial machines, and laboratory equipment requiring high precision position or presence detection under demanding environmental conditions.
