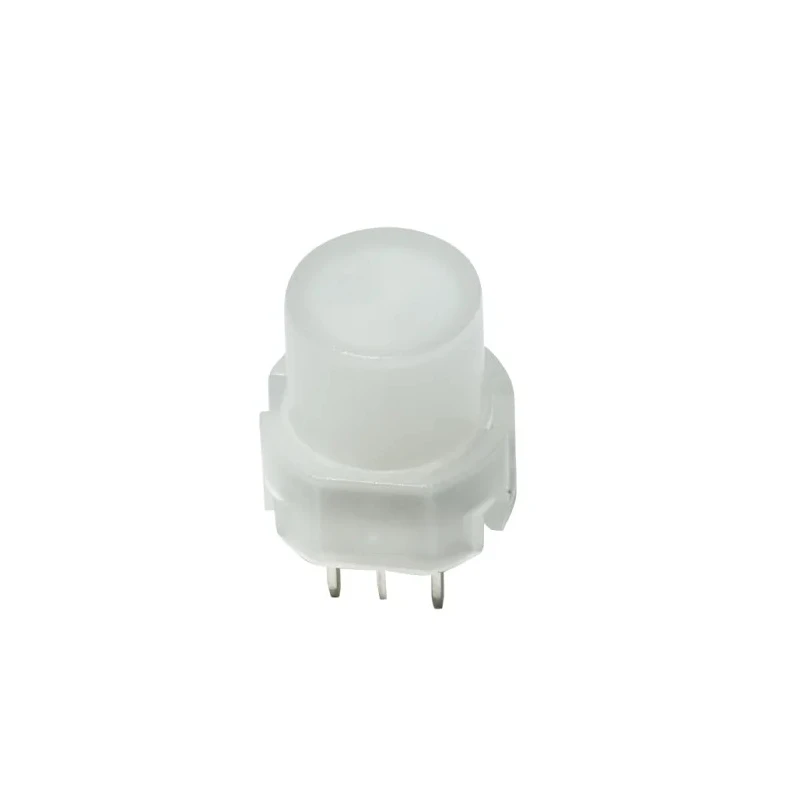

C & K Illuminated Momentary Push Button Switch with Through Hole Mount, 11.4 mm Cutout, SPST Contact D6RLPGF2LFS

Name: C & K Illuminated Momentary Push Button Switch with Through Hole Mount, 11.4 mm Cutout, SPST Contact D6RLPGF2LFS
Brand: C & K
SKU: 170403
Price: 20.22 USD
Availability: InStock



Category Push Button Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Model	D6RLPGF2LFS
IP Rating	IP40
Mount Type	Through Hole
Series	D6
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	11.4 mm
Terminal type	PCB Pin
Standards/Approvals	RoHS
LED Colour	Amber, Blue, Green, Red, White, Yellow
Switch Operation	Momentary
Actuator Colour	White
Contact DC Voltage	35V dc
Actuator Style	Button
Switch Contact Current	10mA
Contact AC Voltage	35V ac

Key Features

The switch features a smooth tactile button actuator with white color.
SPST contact configuration supports single-pole single-throw switching.
LED illumination available in Amber, Blue, Green, Red, White, and Yellow colors.
Rated for 10mA contact current at 35V AC/DC voltage.
Robust IP40 protection with operating temperature from -20°C to 85°C ensures durability.
Complies with RoHS standards for safe use in industrial environments.
Suitable for video equipment, electronic games, appliances, and other control panel applications.
Designed for easy X, Y coding on a single side PCB layout.

Product Description

C & K D6RLPGF2LFS Illuminated Push Button Switch is a momentary type switch designed with through hole mounting and an 11.4 mm panel cutout size, providing positive and smooth tactile feedback. The white actuator styled as a button is illuminated and available in multiple LED colors including Amber, Blue, Green, Red, White, and Yellow, enhancing visual indication in control panels.

This switch's SPST (single-pole single-throw) contact configuration is rated for a 10mA contact current at 35V AC/DC voltage, balancing low power circuit needs with reliable operation. The IP40 rated enclosure offers basic protection against ingress of solid objects larger than 1 mm, suitable for indoor and protected industrial environments.

Operating temperatures from -20°C up to 85°C allow usage in a variety of ambient conditions common in electronic assemblies. Fully RoHS compliant, this switch supports environmental regulations and safe manufacturing standards.

The D6 series switches are popular for assembling customized switches due to the build-a-switch concept allowing various combinations. The design enables easy X, Y coding on single side PCBs, simplifying installation.

Applications include use in video devices, electronic games, household and industrial appliances, and other systems requiring momentary push button actuation. The illuminated feature aids in status indication or user interaction feedback.

The switch features a smooth tactile button actuator with white color. SPST contact configuration supports single-pole single-throw switching. LED illumination available in Amber, Blue, Green, Red, White, and Yellow colors.

Rated for 10mA contact current at 35V AC/DC voltage. Robust IP40 protection with operating temperature from -20°C to 85°C ensures durability. Complies with RoHS standards for safe use in industrial environments. Suitable for video equipment, electronic games, appliances, and other control panel applications.

Designed for easy X, Y coding on a single side PCB layout. Explore a wide range of Push Button Switches and other electronic switch components available at EnvMart for industrial, laboratory, and commercial applications.
