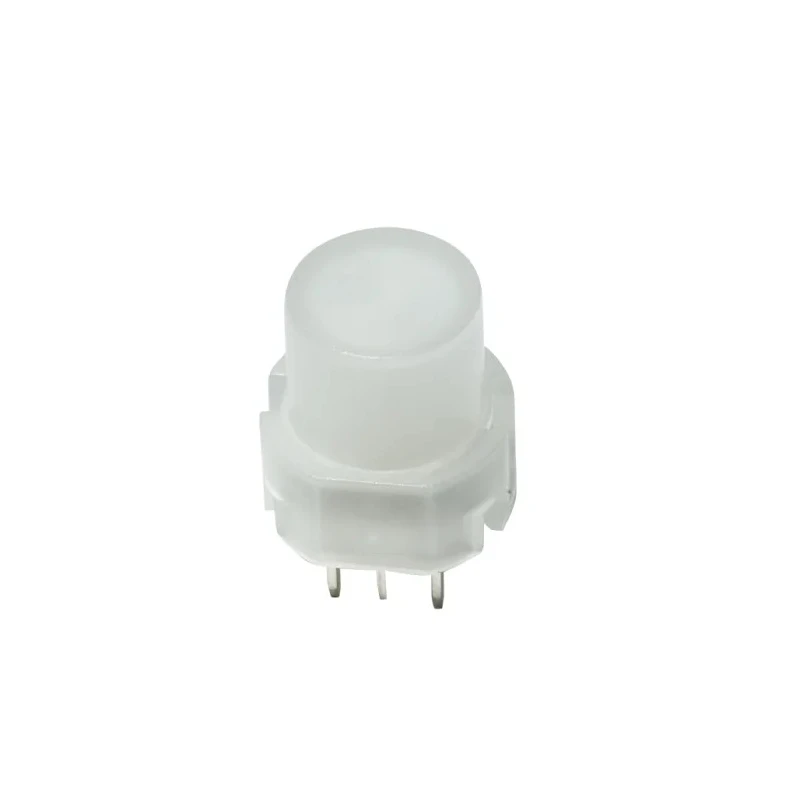

C & K D6 Series Illuminated Momentary Push Button Switch Through Hole 11.4 mm Cutout SPST Amber LED IP40 35V dc D6RLAMF2LFS

Name: C & K D6 Series Illuminated Momentary Push Button Switch Through Hole 11.4 mm Cutout SPST Amber LED IP40 35V dc D6RLAMF2LFS
Brand: C & K
SKU: 170400



Category Push Button Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Model	D6RLAMF2LFS
IP Rating	IP40
Mount Type	Through Hole
Series	D6
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	Momentary
Minimum Operating Temperature	-20°C
Panel Cutout Size	11.4 mm
Terminal type	PCB Pin
Standards/Approvals	RoHS Compliant
LED Colour	Amber
Switch Operation	Momentary
Actuator Colour	White
Contact DC Voltage	35V dc
Actuator Style	Button
Switch Contact Current	10mA
Contact AC Voltage	35V ac

Key Features

Compact design with a panel cutout size of 11.4 mm suitable for through-hole mounting.
Illuminated push button switch with amber LED for clear visual indication.
Momentary switch operation with white actuator button for tactile feedback.
Rated for 35V dc and 35V ac contact voltages with a contact current of 10mA.
IP40 rated enclosure providing protection against solid objects larger than 1mm.
Wide operating temperature range from -20°C to 85°C ensuring reliable performance.
RoHS compliant and manufactured in China ensuring environmental compliance.
Designed for ease of PCB mounting using PCB pins for terminals.

Product Description

The C & K D6RLAMF2LFS is an illuminated momentary push button switch designed for industrial and electronic applications requiring reliable tactile feedback and clear LED indication. It features a white actuator style button with an amber LED to provide visual status during operation. The through-hole mount type allows easy integration with printed circuit boards using standard PCB pin terminals.

This switch has a panel cutout size of 11.4 mm making it compact for control panels and electronic devices. Its Single Pole Single Throw (SPST) contact configuration enables simple on/off switching functions with a contact rating of 10mA at 35 volts alternating or direct current.

Constructed to withstand operating temperatures ranging from -20°C to +85°C, the switch is robust for demanding environments. Its IP40 rating provides protection against ingress of solid objects larger than 1 millimeter, suitable for indoor and protected applications.

The D6 Series push button switch from C & K offers flexibility with illuminated and non-illuminated options, allowing designers to tailor it according to their product needs. Its build quality and compliance with RoHS standards ensure environmentally responsible manufacturing.

Typical industrial and commercial applications include video equipment, electronic games, appliances, and control systems that benefit from positive tactile feedback and visual LED indication. This model is manufactured in China and meets high standards for durability and performance.

Compact design with a panel cutout size of 11.4 mm suitable for through-hole mounting. Illuminated push button switch with amber LED for clear visual indication. Momentary switch operation with white actuator button for tactile feedback.

Rated for 35V dc and 35V ac contact voltages with a contact current of 10mA. IP40 rated enclosure providing protection against solid objects larger than 1mm. Wide operating temperature range from -20°C to 85°C ensuring reliable performance.

RoHS compliant and manufactured in China ensuring environmental compliance. Designed for ease of PCB mounting using PCB pins for terminals. Explore more Push Button Switches and components from C & K and browse the Electronics & Electricals category on EnvMart for high-quality industrial automation products.
