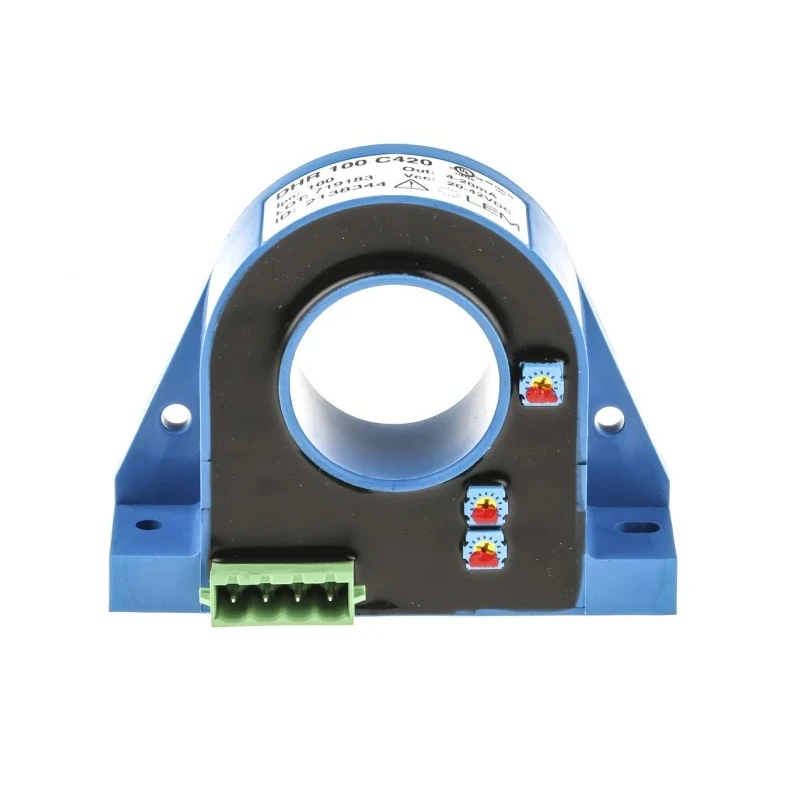

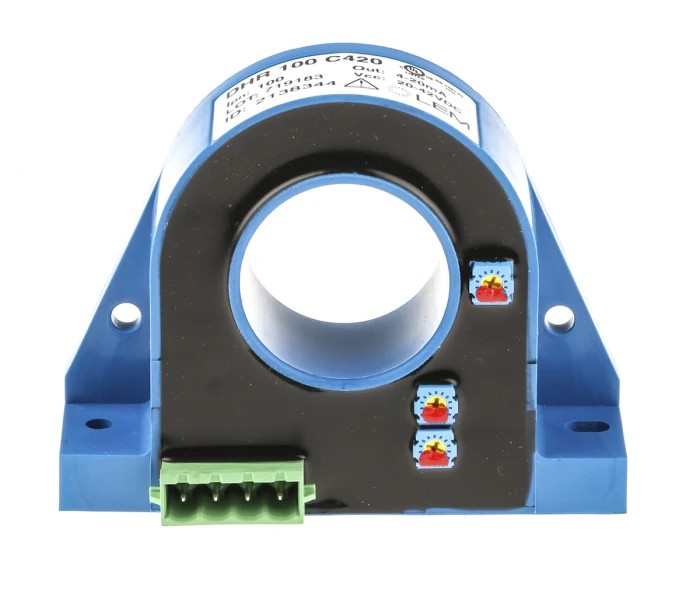

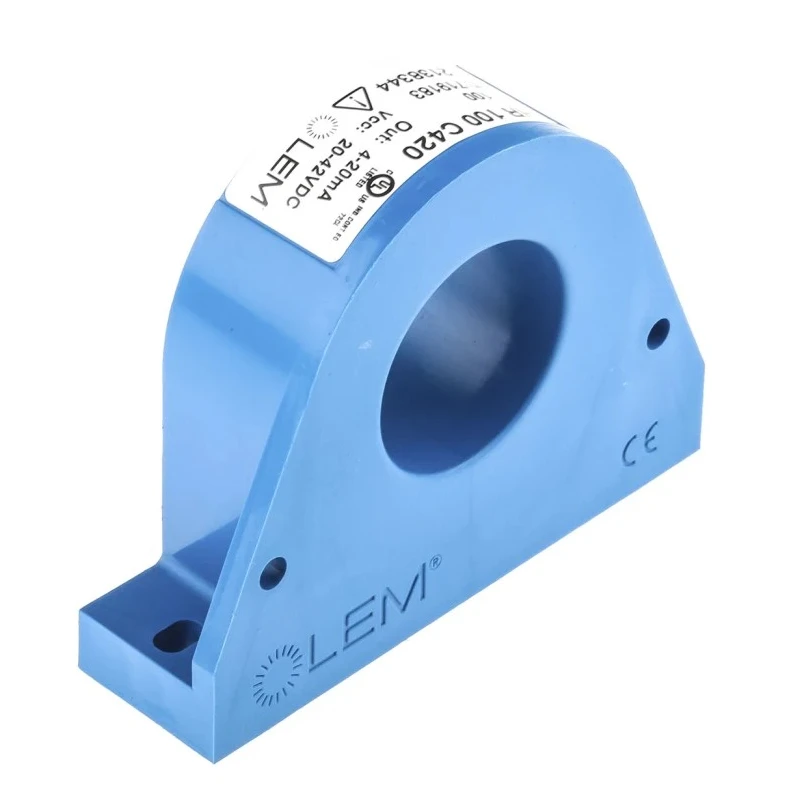

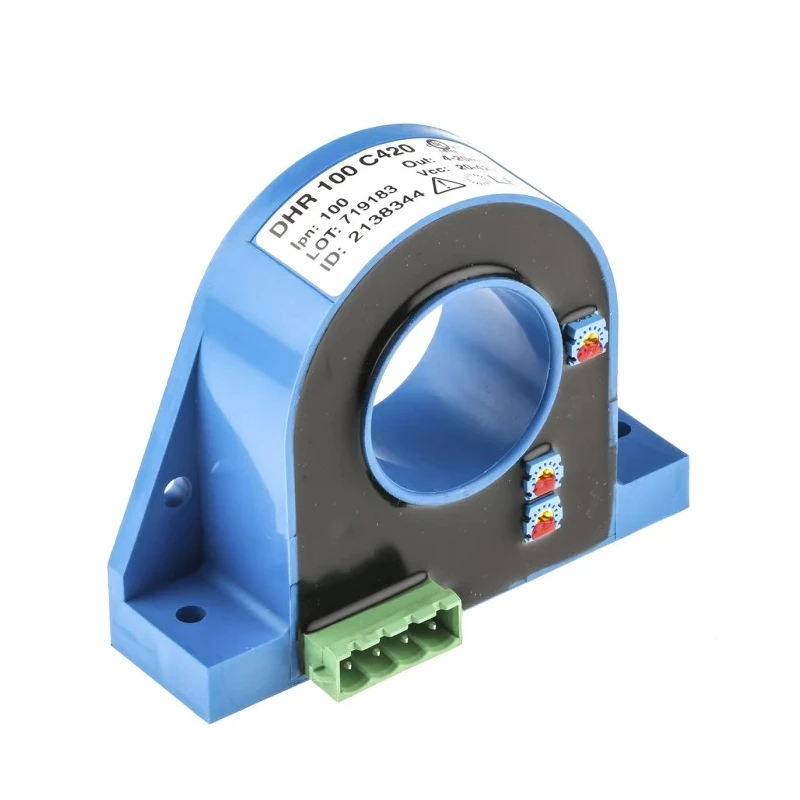

LEM DHR Series Panel Mount Current Transformer 100 A 20V dc, 50 V dc 32mm Bore DHR 100 C420

LEM DHR 100 C420 is a panel mount current transformer designed for industrial and process control applications, offering accurate current measurement with a 100 A primary current rating and dual supply voltages of 20 V dc and 50 V dc. The device features a 32 mm bore diameter that facilitates easy cable entry and installation.

This current transformer integrates signal preparation enabling AC/DC transformer operation with electrical isolation to ensure safe and precise outputs. It effectively measures currents with variable frequency drives (VFD) and silicon controlled rectifiers (SCR), making it suitable for automation and control gear systems.

Its design supports a broad operating temperature range from -40°C to 100°C and frequency range spanning 20 Hz to 6000 Hz, allowing reliable performance in diverse industrial environments. Dimensions include a compact 90 mm width and 25 mm depth for panel mounting.

LEM DHR 100 C420 provides actual voltage or current output signals with minimal excess losses, enhancing efficiency in process control environments. The transformer is CE and UL approved, complying with industry standards for quality and safety.

This product is ideal for industrial automation, electrical engineering projects, manufacturing controls, and HVAC system monitoring, helping to ensure accurate current sensing and control within electrical systems.

This current transformer supports AC/DC transformer operation with integrated signal preparation. Supports electrical isolation and measures currents with variable frequency drives (VFD) and silicon controlled rectifiers (SCR).

Designed for panel mount applications with a width of 90 mm and depth of 25 mm. Operates across a wide temperature range from -40°C to 100°C and frequency range from 20 Hz to 6000 Hz. Provides actual voltage or current output with low excess losses and simple installation.

Its cable entry supports up to 32 mm diameter and offers precision measurement capabilities. Complies with CE and UL approvals ensuring safety and reliability. Discover the complete range of LEM Current Transformers and related automation control gear at EnvMart to meet your industrial and process monitoring needs.
