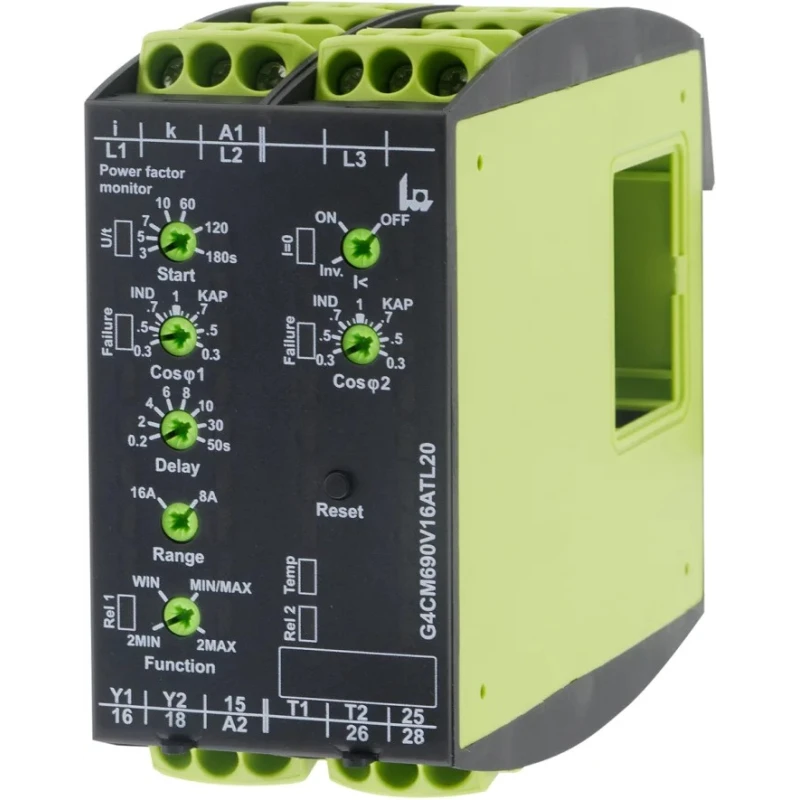

Tele Monitoring Relay DPDT DIN Rail Mount -50 °C Min Temp Monitoring 12V AC 500V AC G4CM690V16ATL20

Free Delivery in India | Lowest Global Shipping Charges

Tele Monitoring Relay DPDT DIN Rail Mount -50 °C Min Temp Monitoring 12V AC 500V AC G4CM690V16ATL20

Name: Tele Monitoring Relay DPDT DIN Rail Mount -50 °C Min Temp Monitoring 12V AC 500V AC G4CM690V16ATL20
Brand: Tele
SKU: 194131
Price: 593.18 USD
Availability: InStock



Category Monitoring Relays Brand Tele Condition New

Specifications

Country of Origin	Germany
Brand	Tele
Height	90mm
Length	103mm
Model	G4CM690V16ATL20
IP Rating	IP40, IP20
Mount Type	DIN Rail
Series	GAMMA
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Sub Type	PTC
Terminal type	Screw
Contact Current	5A
Minimum Temperature Monitoring	-50°C
Tele Monitoring Relay, DPDT, DIN Rail, Monitoring	-50 °C 12V ac, 500 V ac

Key Features

Equipped with dual-pole double-throw contacts for versatile switching.
Designed to monitor temperatures as low as -50 °C and up to a maximum of 55 °C.
Operates reliably on 12V AC control voltage with load voltage rating up to 500V AC.
Features screw terminal connections for secure and easy wiring.
Housed in a durable self-extinguishing plastic body with IP40 and IP20 ratings for protection.
Includes a reset key and fault latch for convenient operation and fault indication.
Supports multifunction monitoring of inductive and capacitive loads up to 19.6 kW.
Complies with IEC standards IEC 60068-2-27, IEC 60721-3-3, IEC 60664-1, IEC 60068-2-6 and RoHS requirement.

Product Description

Tele G4CM690V16ATL20 monitoring relay is a robust DIN rail-mounted device designed for precise power factor and temperature monitoring applications in industrial and commercial electrical automation.

This GAMMA series relay incorporates dual-pole double-throw (DPDT) switching contacts, making it suitable for a broad range of control and monitoring tasks involving inductive and capacitive loads up to 19.6 kW.

It monitors motor winding temperatures and provides multifunction monitoring capabilities within a compact, space-saving enclosure made of self-extinguishing plastic, rated at IP40 protection for dust ingress and mechanical impacts.

The relay supports a control voltage of 12V AC and load voltages up to 500V AC, making it versatile for various AC control systems. Screw terminals ensure secure electrical connections while simplifying installation and maintenance.

Additional features include a reset key for manual resetting and a fault latch mechanism that assists in fault diagnosis. This relay is good for variable frequency inverter applications (10 to 100 Hz).

The relay meets international standards including IEC 60068-2-27 for shock, IEC 60721-3-3 for environmental testing, IEC 60664-1 for insulation coordination, IEC 60068-2-6 for vibration testing, and complies with RoHS directives, ensuring environmental and operational safety.

Equipped with DPDT contact configuration for flexible switching control. Designed for temperature monitoring from -50 °C to 55 °C for motor and system protection. Durable self-extinguishing plastic construction providing IP40 rating.

Supports monitoring of inductive and capacitive consumers up to 19.6 kW. Includes a reset key and fault latch to facilitate fault detection and recovery. Compliant with major IEC standards ensuring robust industrial use.

Compact footprint measuring 103 mm length, 90 mm height, and 45 mm width suitable for DIN rail mounting. Manufactured in Germany adhering to strict quality standards.

This Tele monitoring relay is ideal for industrial automation, electrical panel monitoring, manufacturing systems, HVAC controls, and other applications requiring precise phase and temperature monitoring with high reliability.
