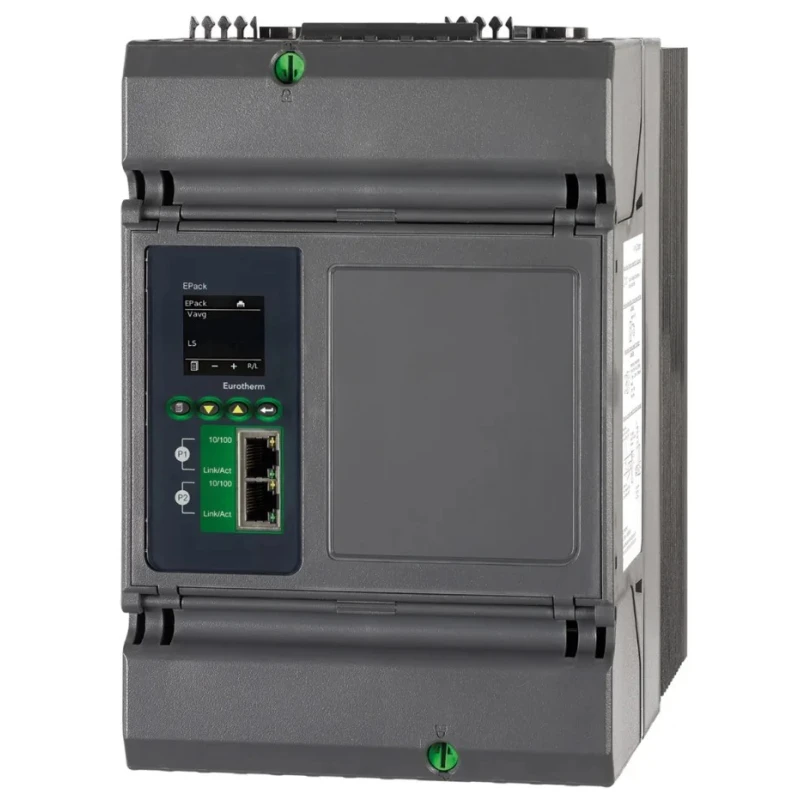

Eurotherm DIN Rail Power Controller Relay 2 Phase 500V 125A EPACK-2PH/125A/500V/XXX/V2/XXX/XXX/TCP

Eurotherm EPACK-2PH/125A/500V/XXX/V2/XXX/XXX/TCP DIN Rail Power Controller Relay is engineered for the precise control of 2-phase loads in industrial and manufacturing environments. It is optimized for balanced load management either directly or through current transformers, ensuring accurate power delivery and load regulation.

This power controller features a robust relay output capable of handling up to 125 Amps at a maximum supply voltage of 500V, making it ideal for applications requiring reliable switching of demanding loads such as resistive, infrared, transformer, and silicon carbide loads. It operates efficiently within ambient temperatures from 0°C to 45°C.

The device offers a compact DIN Rail mount option with screw terminal connectors for secure and easy installation inside control panels or bulkhead mounting configurations. The front panel allows for user-friendly configuration, complemented by advanced communication protocols like Modbus TCP, Ethernet/IP, and Profinet. This includes an integrated dual port Ethernet switch to simplify network daisy chaining and zero configuration networking.

Equipped with a high-resolution TFT display, the controller provides clear diagnostics and comprehensive energy usage measurement, vital for energy management systems and predictive maintenance. The controller meets stringent international standards including CE, UL60947-4-1, and IEC/EN60947-4-3:2014, along with cybersecurity certification at Achilles CRT Level 1.

Physical dimensions are compact with a length of 240mm, width of 242mm, and panel depth of 230mm, rated at IP20 for indoor environment protection. Designed and manufactured in Poland, it offers reliability and precision suitable for industrial automation, HVAC control, process control, and energy management applications.

Nominal load current from 1 Amps to 125 Amps. Voltage rating up to 500 V suitable for multiple load types. Compact DIN Rail and bulkhead mounting options. Configurable front panel and advanced digital communications. Energy usage measurement integrated with advanced diagnostics.

Integrated dual port Ethernet switch for simplified network management. Meets CE, UL60947-4-1, IEC/EN60947-4-3:2014 and other certifications.

This Eurotherm power controller is an excellent choice for industrial process automation, manufacturing line control, energy monitoring, and temperature control systems. It enables highly configurable, reliable power switching and communication for complex industrial environments.

Explore more industrial Power Controllers and related automation solutions at EnvMart to support your production and energy efficiency goals.
