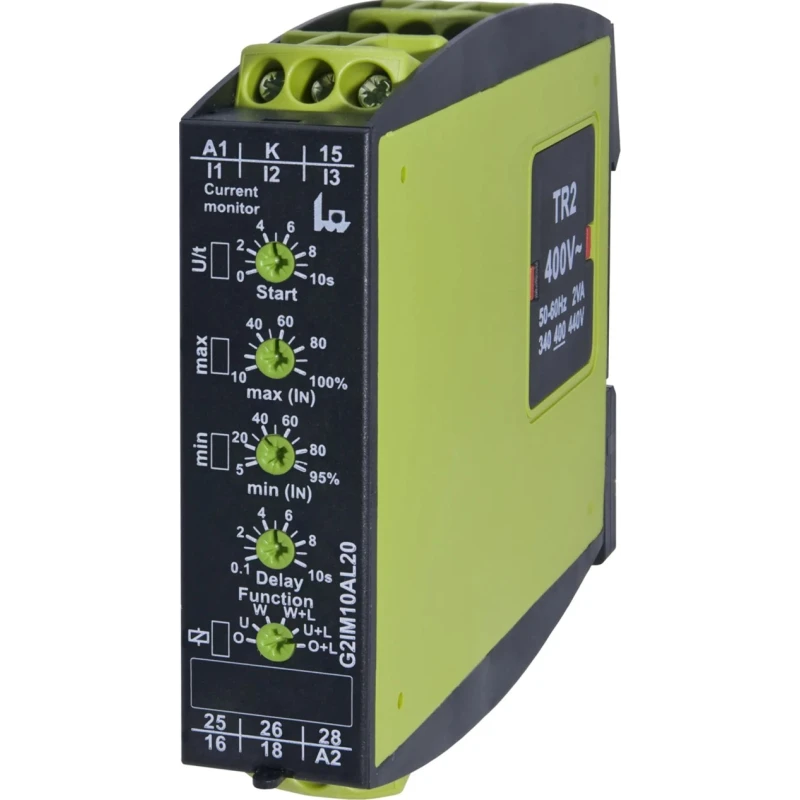

Tele Monitoring Relay 1 Phase DPDT DIN Rail 100mA to 10A 24-240VAC/DC G2IM10AL20 24-240VAC/DC

Free Delivery in India | Lowest Global Shipping Charges

Tele Monitoring Relay 1 Phase DPDT DIN Rail 100mA to 10A 24-240VAC/DC G2IM10AL20 24-240VAC/DC

Name: Tele Monitoring Relay 1 Phase DPDT DIN Rail 100mA to 10A 24-240VAC/DC G2IM10AL20 24-240VAC/DC
Brand: Tele
SKU: 194126
Price: 308.78 USD
Availability: InStock



Category Monitoring Relay Brand Tele Condition New

Specifications

Country of Origin	Austria
Brand	Tele
Height	90mm
Length	108mm
Model	G2IM10AL20 24-240VAC/DC
IP Rating	IP20, IP40
Width	22.5mm
Mount Type	DIN Rail
Series	GAMMA
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Time Delay	0.1 to 10 s
Minimum Operating Temperature	+55°C
Terminal type	Screw
Electrical Phase	1
Switching Voltage	250V ac
Supply AC Voltage	24, 240V ac
Minimum Current Sensed	100mA
Maximum Current Sensed	10A
Current Sensitivity	Overcurrent, Undercurrent
Relay Contact Current	5A

Key Features

Offers precise overcurrent and undercurrent detection functionality.
Designed for DIN rail mounting with LED indicators and screw terminals.
Features two change-over contacts for versatile circuit control.
Durable plastic body rated IP40 ensuring dust protection.
Operates effectively within temperature range up to 55°C.
Supports time delay from 0.1 to 10 seconds for responsive control.
Complies with IEC and RoHS standards for industrial reliability.
Compact size with dimensions 108mm length, 90mm height, 22.5mm width.

Product Description

Tele G2IM10AL20 24-240VAC/DC monitoring relay is a robust 1 phase current monitor designed for industrial and electrical automation applications. It features DPDT contact configuration and supports a supply voltage ranging from 24 to 240 volts AC or DC, enabling versatile deployment across various control circuits.

This relay provides accurate current sensing from 100mA minimum up to a maximum current of 10A, suitable for overcurrent and undercurrent detection. The device includes two changeover contacts, LED indicators for operational status, and is built for easy DIN rail mounting with reliable screw terminal connections.

Constructed with a self-extinguishing plastic body, it is rated IP40 for dust protection, ensuring durability in controlled industrial environments. Operational temperature extends up to 55°C, making it suitable for typical factory floor conditions.

The relay supports a configurable time delay ranging from 0.1 to 10 seconds, allowing fine-tuned response timing to current variations. Compliant with IEC 60068-2-6, IEC 60068-2-27, IEC 60664-1, IEC 60721-3-3 standards and RoHS directives, it assures high quality and safety levels.

Its compact form factor measures 108mm in length, 90mm in height and 22.5mm in width, optimizing space in control panels. This GAMMA series product from Tele is ideal for use in industrial automation, electrical control cabinets, and monitoring systems requiring reliable current sensing and protection.

Offers precise overcurrent and undercurrent detection functionality. Designed for DIN rail mounting with LED indicators and screw terminals. Features two change-over contacts for versatile circuit control. Durable plastic body rated IP40 ensuring dust protection.

Operates effectively within temperature range up to 55°C. Supports time delay from 0.1 to 10 seconds for responsive control. Complies with IEC and RoHS standards for industrial reliability. Compact size with dimensions 108mm length, 90mm height, 22.5mm width.
