Tele Monitoring Relay 3 Phase DPDT DIN Rail 230V AC 400V AC G2PF400VS02

Free Delivery in India | Lowest Global Shipping Charges

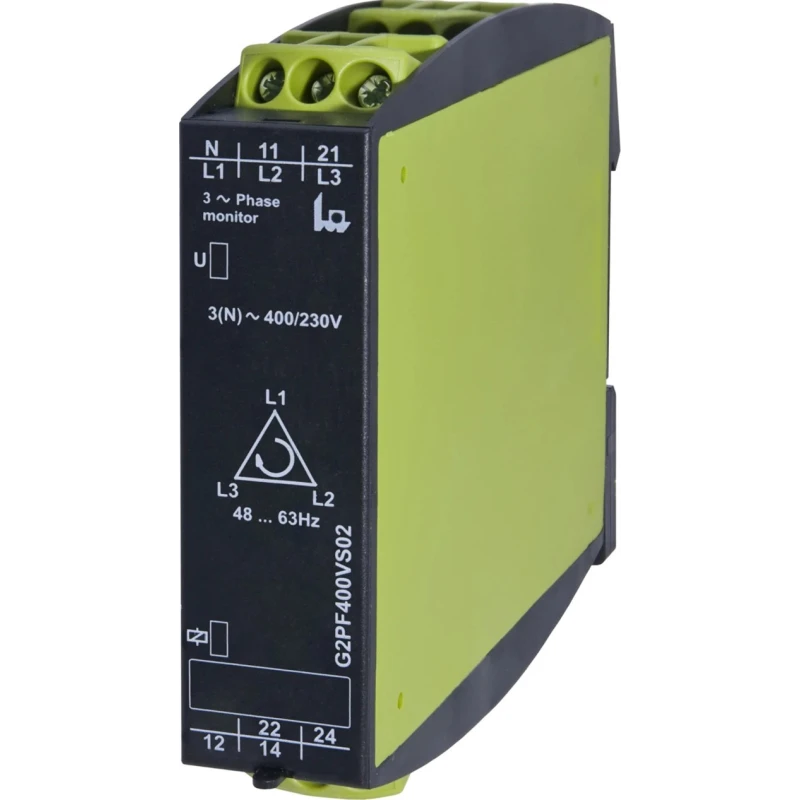

Tele Monitoring Relay 3 Phase DPDT DIN Rail 230V AC 400V AC G2PF400VS02

Name: Tele Monitoring Relay 3 Phase DPDT DIN Rail 230V AC 400V AC G2PF400VS02
Brand: Tele
SKU: 194123
Price: 95.85 USD
Availability: InStock



Category Monitoring Relays Brand Tele Condition New

Specifications

Country of Origin	Austria
Brand	Tele
Height	90mm
Function	Phase Sequence, Phase Failure
Length	22.5mm
Model	G2PF400VS02
IP Rating	IP20, IP40
Width	108mm
Mount Type	DIN Rail
Series	GAMMA
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	+55°C
Terminal type	Screw
Electrical Phase	3
Switching Voltage	250V ac
Contact Current	5A
Supply AC Voltage	230, 400V ac

Key Features

Monitors phase sequence and phase failure for three-phase systems.
Equipped with dual pole double throw (DPDT) contacts for versatile switching.
Compact GAMMA series device with screw terminal connections.
Constructed with self-extinguishing plastic body rated IP40 for enhanced safety.
Supports switching voltage up to 250V AC and contact current of 5A.
Wide operating temperature range up to 55°C for industrial reliability.
Conforms to IEC 60068-2-6, IEC 60664-1, IEC 60721-3-3, and RoHS standards.
Manufactured in Austria for quality assurance.

Product Description

Tele G2PF400VS02 monitoring relay is a high-performance 3-phase voltage monitoring relay designed for industrial, electrical control, automation, and signal conditioning applications. Offering multifunctional phase sequence and failure monitoring, it ensures safe and reliable operation in three-phase electrical systems powered by 230V AC or 400V AC supplies.

This model features dual pole double throw (DPDT) contacts for precise switching control and is mounted easily on DIN Rails for streamlined installation in control panels. The GAMMA series construction includes a durable self-extinguishing plastic housing providing IP40 ingress protection and screw-type terminals for secure wiring connections.

Designed to withstand demanding environmental conditions, it supports operating temperatures up to +55°C and meets rigorous IEC standards such as IEC 60068-2-6 and IEC 60664-1 for mechanical and electrical reliability. Its compact dimensions (108mm width, 90mm height, 22.5mm length) make it an ideal choice for space-constrained control environments.

The relay is rated for 5A contact current with switching voltages up to 250V AC, making it suitable for industrial electrical applications including monitoring and protecting motors, transformers, and other equipment against phase-related faults.

Package includes the GAMMA series Tele G2PF400VS02 relay with an LED indicator for operational status feedback. Its Austrian origin ensures compliance with high manufacturing standards.

Monitors phase sequence and phase failure for reliable electrical system protection. Dual pole double throw (DPDT) contacts provide flexible switching capabilities. DIN Rail mount design supports quick and secure installation.

Self-extinguishing plastic body with IP40 rating enhances safety and durability. Wide operating temperature range suitable for industrial environments. Compliant with IEC standards for rigorous testing and quality assurance.

Compact size saves panel space without compromising performance. Screw terminal connections ensure robust wiring retention. Explore more Monitoring Relays and related electrical components in the Electronics & Electricals category at EnvMart for dependable industrial automation solutions.
