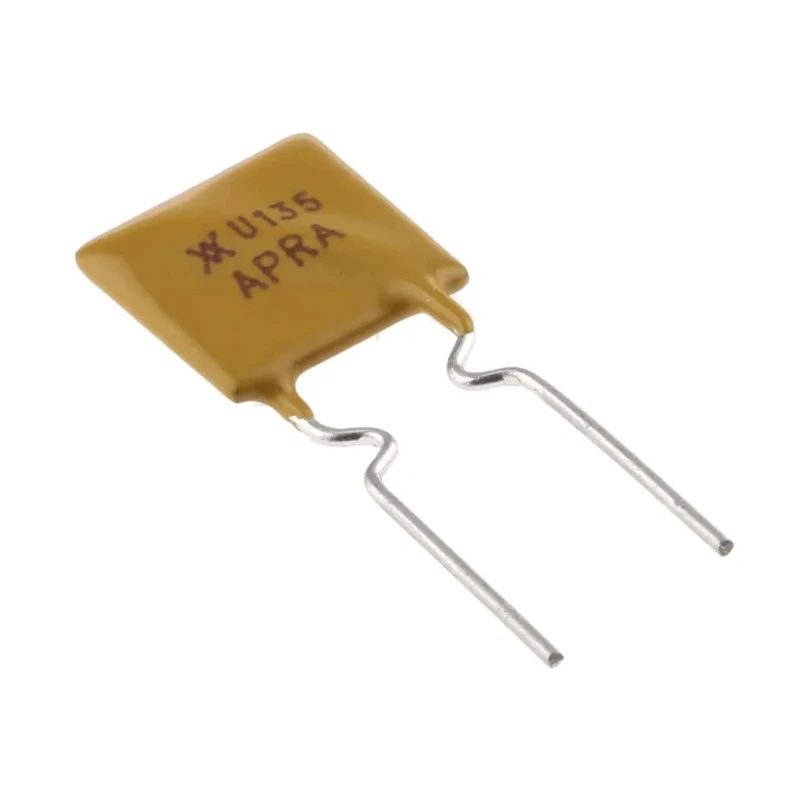

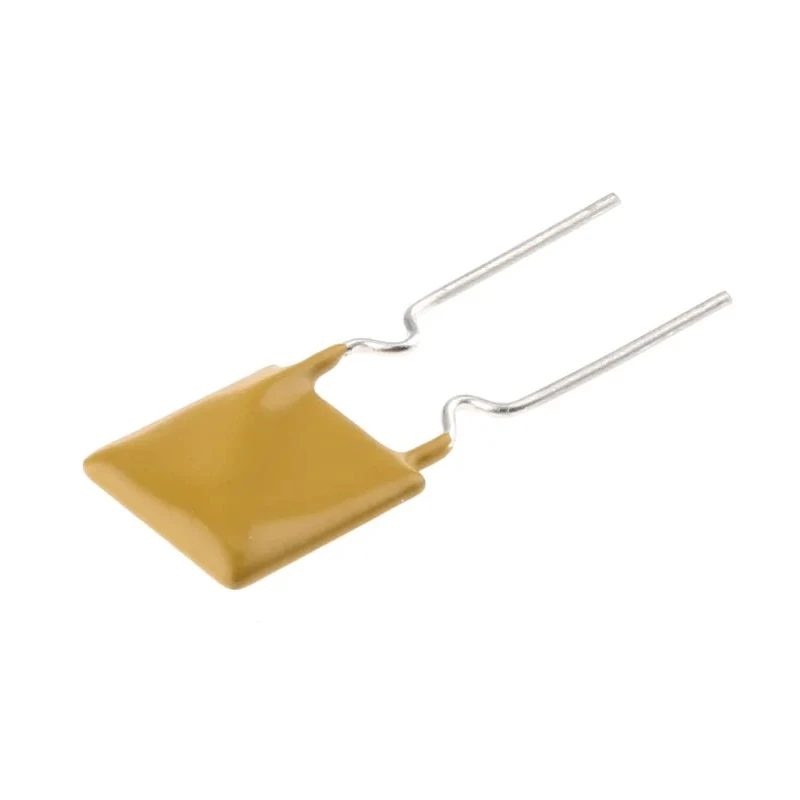

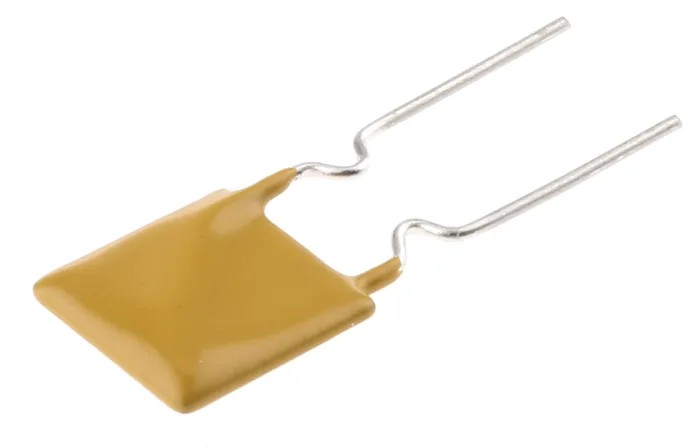

Littelfuse 1.35 A Resettable Fuse 30V dc Radial Lead RUEF135
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V dc |
| Brand | Littelfuse |
| Height | 13.5mm |
| Length | 8.9mm |
| Model | RUEF135 |
| Width | 3mm |
| Current Rating | 100A |
| Series | RUEF |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 2.7A |
| Power Dissipation | 0.8W |
| Standards/Approvals | CQC, CSA, UL, RoHS, TUV |
| Time to Trip | 7.3s |
| Hold Current | 1.35A |
| Minimum Resistance | 0.04Ω |
| Maximum Resistance | 130mΩ |
| Lead Orientation | Radial |
Key Features
- Automatically resets itself thousands of times without user intervention.
- Compact radial lead design for easy PCB mounting.
- Rated for 1.35 A hold current and 2.7 A trip current ensuring precise protection.
- Operates effectively between -40°C to 60°C temperature range.
- Power dissipation is low at 0.8 W for efficient operation.
- Meets multiple international safety standards including CQC, CSA, UL, RoHS, and TUV.
- Maintenance free with no fuseholder required.
- Ideal for use in security systems, power supplies, automotive, medical equipment, and telecommunications.
Product Description
Littelfuse RUEF135 is a 1.35 A resettable fuse designed for protecting electrical and electronic circuits from excessive currents while offering rapid switching from low resistance to high resistance during faults.
This radial lead resettable fuse operates at 30 V dc voltage and has a hold current of 1.35 A and a trip current of 2.7 A with a trip time of approximately 7.3 seconds. The fuse performs reliably within an operating temperature range of -40°C to 60°C and features low power dissipation of 0.8 W, contributing to energy-efficient circuit protection.
The compact device measures 8.9 mm in length, 13.5 mm in height, and 3 mm in width, making it suitable for tight PCB layouts without needing a fuseholder, thus simplifying installation.
Certified to CQC, CSA, UL, RoHS, and TUV standards, the RUEF135 fuse is maintenance-free and automatically resets thousands of times after fault conditions are cleared, enhancing reliability and reducing downtime.
It is widely used in applications such as security systems, power supplies and transformers, automotive and medical equipment, instrumentation and control, computers and peripherals, and telecommunications.
The minimum resistance is 0.04 Ω and the maximum resistance is 130 mΩ, providing consistent circuit protection and minimal impact on normal operation. Automatically resets itself thousands of times without user intervention.
Compact radial lead design for easy PCB mounting. Rated for 1.35 A hold current and 2.7 A trip current ensuring precise protection. Operates effectively between -40°C to 60°C temperature range. Power dissipation is low at 0.8 W for efficient operation.
Meets multiple international safety standards including CQC, CSA, UL, RoHS, and TUV. Maintenance free with no fuseholder required. Ideal for use in security systems, power supplies, automotive, medical equipment, and telecommunications.
Length 8.9 mm, Height 13.5 mm, Width 3 mm ensuring small footprint. Minimum resistance of 0.04 Ω and maximum resistance of 130 mΩ for reliable circuit protection. Explore Littelfuse Resettable Fuses and related components at EnvMart for industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 1.35 A.
The trip current for this model is 2.7 A.
It operates at a voltage of 30 V dc.
The operating temperature range is from -40°C to 60°C.
The time to trip for this fuse is approximately 7.3 seconds.
This model measures 8.9 mm in length, 13.5 mm in height, and 3 mm in width.
The power dissipation is low at 0.8 W.
It meets multiple international safety standards including CQC, CSA, UL, RoHS, and TUV.
The minimum resistance is 0.04 Ω and the maximum resistance is 130 mΩ.
Yes, this fuse is maintenance-free and does not require a fuseholder.
It is suitable for use in security systems, power supplies, automotive, medical equipment, and telecommunications.
The lead orientation of this model is radial.
