JST EH Series Right Angle Through Hole PCB Header, 8 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded S8B-EH (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

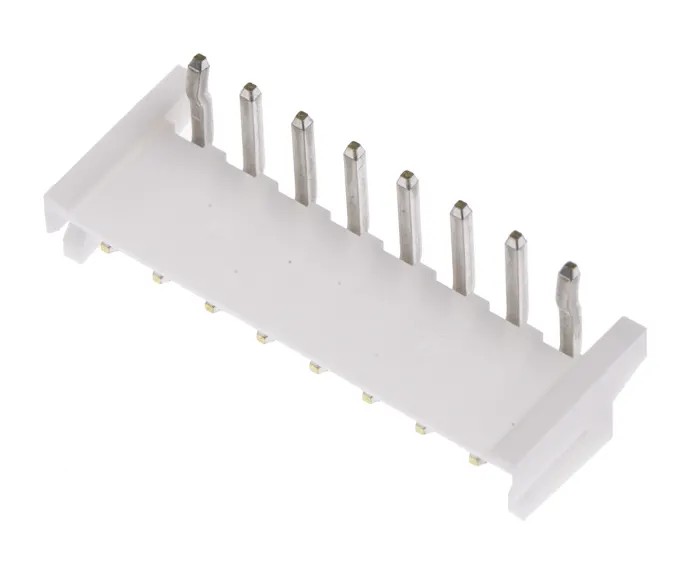

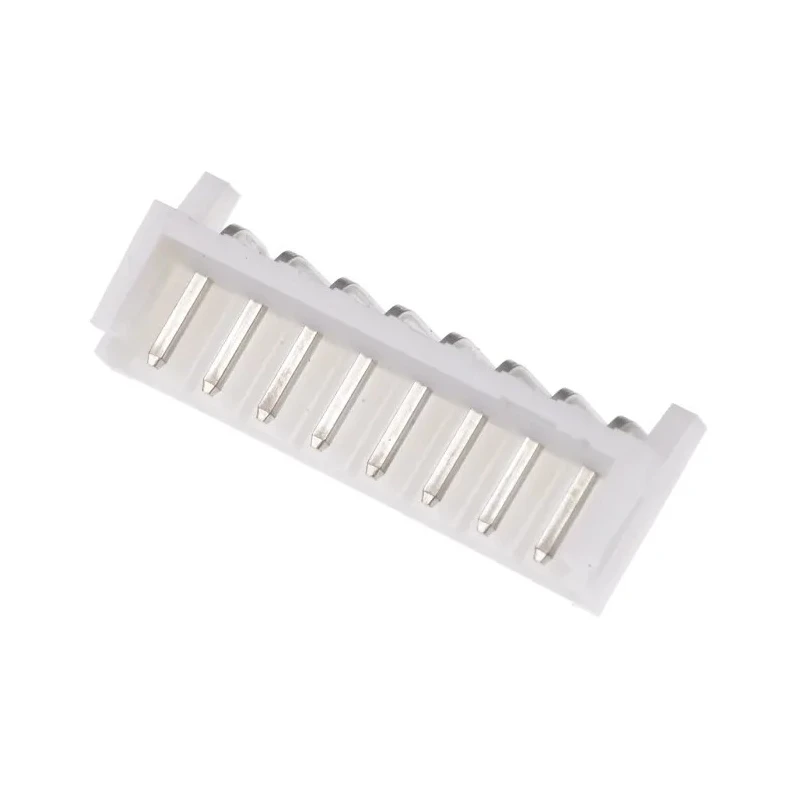

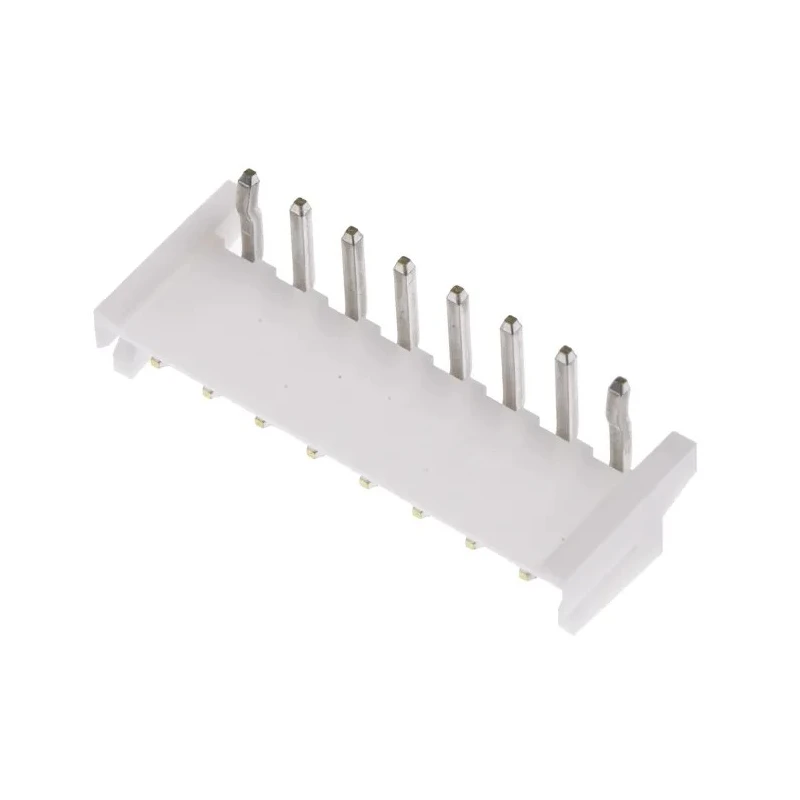

JST EH Series Right Angle Through Hole PCB Header, 8 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded S8B-EH (LF) (SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S8B-EH (LF) (SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	EH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.2mm

Key Features

The PCB header is shrouded for added protection and secure mating.
It features brass contact material with tin plating for reliable electrical connectivity.
The connector system supports wire-to-board applications using solder termination.
The header operates between -25°C to 85°C with a maximum current rating of 3A and voltage of 250V.
The male contact pins have a mating length of 3.2 mm, ensuring firm, keyed connections.
The right angle orientation assists compact PCB layouts and side-entry connections.
The polyamide housing material provides durable insulation and mechanical strength.
Ideal for use in electronic components, industrial electronics, and PCB assembly applications.

Product Description

JST S8B-EH (LF) (SN) is a high-quality EH Series right angle through hole PCB header with 8 contacts and a 2.5 mm pitch in a single row, designed for wire-to-board connections.

This PCB header features a shrouded polyamide housing that protects the contacts and ensures correct polarization when mated, while the brass contacts plated with tin deliver consistent electrical conductivity and mechanical reliability.

Operating under a voltage rating of 250V and rated for 3 amperes of current, the connector is suitable for various industrial, electronic manufacturing, and laboratory applications.

The termination type is solder-based, ideal for through-hole PCB mounting. The male contact pins have a mating length of 3.2 mm, with right angle orientation facilitating side-entry installations, saving PCB space.

Designed to function across a temperature range from -25°C to 85°C, this connector provides robustness and longevity even in harsh environments. Its integral keying design prevents mismatches during assembly.

The header includes 8 contacts at 2.5 mm pitch. Polyamide housing ensures durability and insulation. Brass contacts with tin plating for reliable conductivity. Right angle orientation enables compact PCB layouts. Solder termination suitable for through-hole mounting.

Operational temperature range from -25°C to 85°C. Voltage rated at 250V with current of 3A. Mating pin length is 3.2 mm for secure connection. Ideal for industrial electronics, manufacturing, and PCB assembly. Explore more PCB Headers and connectors from JST and find the perfect solution for your electronic design requirements on EnvMart.
