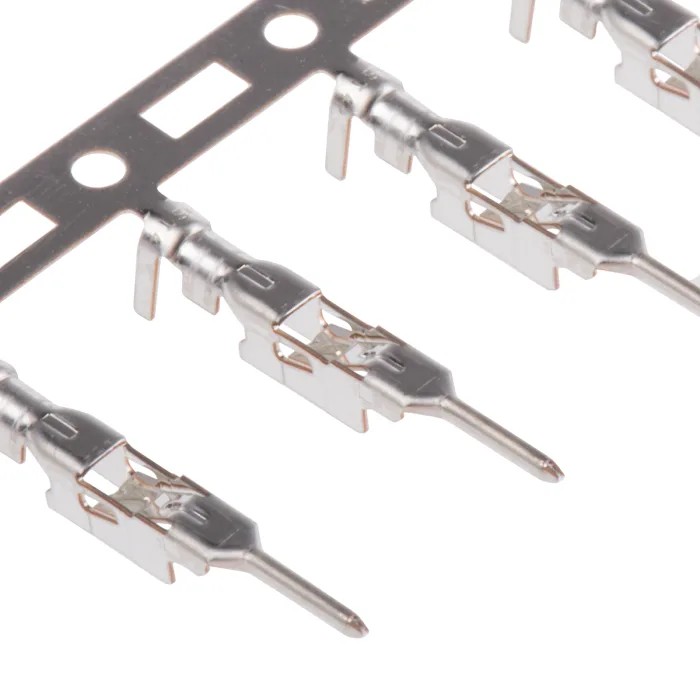

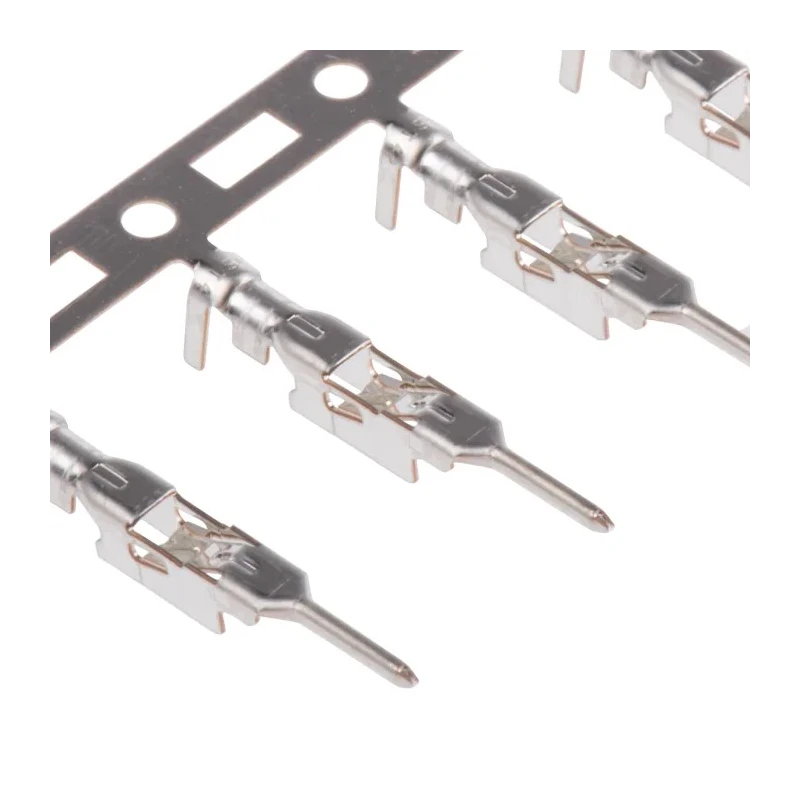

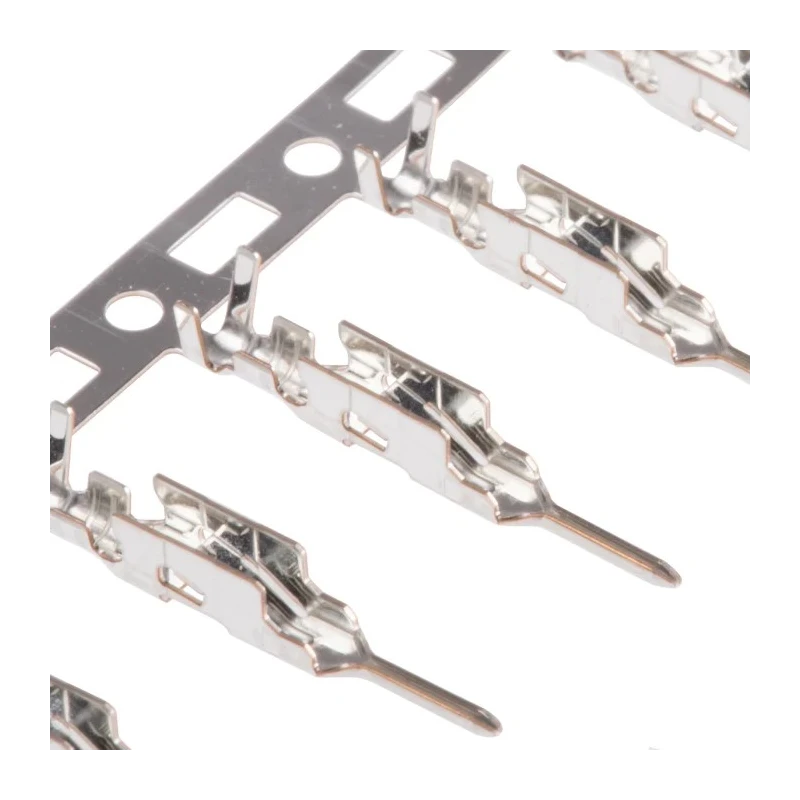

JST XA Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max SXAM-001T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

JST XA Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max SXAM-001T-P0.6



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Malaysia
Brand	JST
Current	3A
Model	SXAM-001T-P0.6
Gender	Male
Contact Material	Phosphor Bronze
Series	XA
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-25°C
For Use With	XA and XAD Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.33mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from phosphor bronze with tin plating for durability and reliable conductivity.
Crimp termination type ensures a secure and consistent electrical connection.
Operates reliably between -25°C and 105°C temperature ranges.
Compatible with XA and XAD connector housings for flexible application.
Features a maximum contact resistance of 20mΩ for efficient signal transmission.
Designed for general electronics, industrial, and power connector use cases.
Manufactured in Malaysia ensuring quality standards without specific approvals.

Product Description

JST SXAM-001T-P0.6 Male Crimp Terminal is part of the XA series Crimp Contacts engineered for use in electronic, industrial, and power connector applications requiring reliable and durable connections. This crimp terminal supports wire gauge sizes from 28 AWG minimum to 22 AWG maximum, enabling compatibility with a variety of wiring needs.

Constructed from phosphor bronze with a tin plating, the contact offers corrosion resistance and stable electrical performance. It is designed with a crimp termination to assure a secure mechanical and electrical connection within XA and XAD series connector housings.

The terminal is rated for a current of 3A and has a maximum operating temperature of 105°C, with an operating temperature range starting at -25°C ensuring functionality in diverse environments.

Its contact resistance is capped at 20 milliohms, which helps maintain signal integrity in critical circuits. This product is manufactured in Malaysia and does not carry specific certifications but meets general durability and material standards typical for connector components.

The XA series terminals are widely used across electronics manufacturing, power distribution, industrial automation, and PCB connector assemblies where durability and reliable performance are key.

Constructed with phosphor bronze and tin plating for durability and conductivity. Compatible with XA and XAD connector housings for versatile use. Rated 3A current capacity with low contact resistance of 20mΩ. Operational temperature range from -25°C to 105°C for reliability in various environments.

Ideal for industrial, electronic, and power connector applications. Explore JST XA series crimp terminals for precise, consistent, and dependable connectivity solutions on EnvMart.
