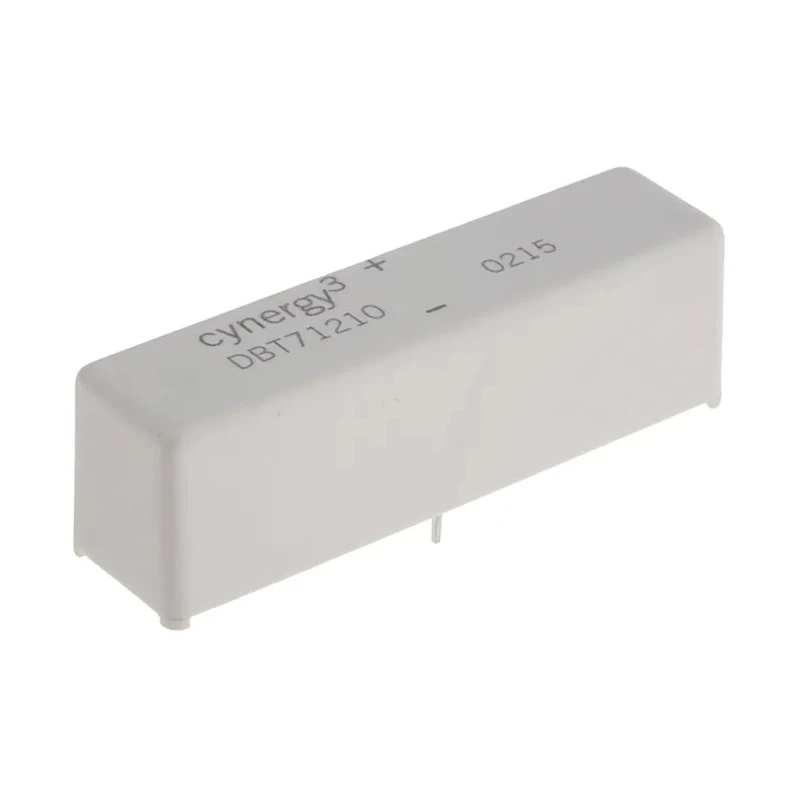

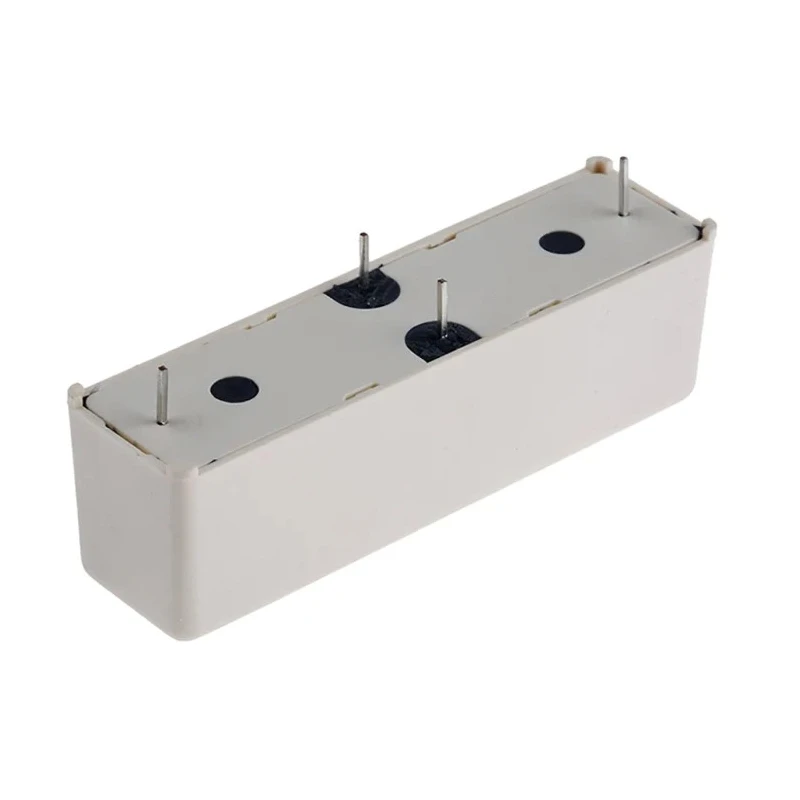

Cynergy3 PCB Reed Relay 12V DC Coil SPNC Contact Configuration 7000V DC Max 2A Max 240 Ω Coil Resistance

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 PCB Reed Relay 12V DC Coil SPNC Contact Configuration 7000V DC Max 2A Max 240 Ω Coil Resistance

Name: Cynergy3 PCB Reed Relay 12V DC Coil SPNC Contact Configuration 7000V DC Max 2A Max 240 Ω Coil Resistance
Brand: Cynergy3
SKU: 192793
Price: 56.6 USD
Availability: InStock



Category Reed Relay Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Height	18.5mm
Length	60mm
Model	Cynergy3
Operating Time	2ms
Mount Type	PCB
Series	DBT
Maximum Operating Temperature	70°C
Contact Configuration	SPNC
Minimum Operating Temperature	-20°C
Terminal type	Solder
Contact Resistance	250mΩ
Standards/Approvals	UR
Coil Resistance	240Ω
Coil Power	50W
Switching Power	50W
Isolation Coil To Contact	10kV ac/dc

Key Features

The relay operates with a coil resistance of 240 Ω for stable performance.
Designed for PCB mounting with solder terminal type to ensure secure attachment.
Capable of switching power up to 50W with fast operating time of 2ms for rapid response.
Wide operating temperature range from -20°C to +70°C suitable for extreme environments.
Compact dimensions of 60mm length and 18.5mm height for space-constrained applications.
The relay offers excellent coil to contact isolation of 10kV AC/DC for safety.
Contact resistance is low at 250mΩ, enhancing electrical efficiency.
Manufactured in China, the relay is marked as non-latching and complies with UR standards.

Product Description

Cynergy3 DBT71210 PCB Reed Relay is a precision electrical component designed for reliable switching control in industrial, electrical, and automation circuits. Featuring a 12V DC coil and a single pole normally closed (SPNC) contact configuration, this relay is ideal for applications where safety disconnection is required rapidly within 2 milliseconds.

This relay handles a high maximum switching voltage of 7000V AC/DC and a maximum current load of 2A, making it suitable for use in high voltage and power switching scenarios common in manufacturing, electrical testing, and control systems.

The device is designed for PCB mounting with through-hole solder terminals ensuring secure and durable installation. Its coil resistance of 240 ohms and coil power rating of 50W enable efficient coil energization and switching performance.

Operating reliably within a temperature range of -20°C to +70°C, the relay is suitable for harsh industrial environments. With compact dimensions of 60mm length, 18.5mm height, and a low contact resistance of 250 milliohms, it offers stable electrical contact with minimal loss.

Critical isolation of 10kV between coil and contacts enhances operational safety and prevents unwanted interference or breakdowns. This non-latching relay complies with UR standards and is built for a long electrical life, offering up to one million cycles for dependable industrial usage.

The relay uses tungsten contacts for corrosion resistance and high conductivity. Fast switching time of 2ms enables quick circuit control responses. Robust PCB mounting ensures compatibility in compact and dense electronic assemblies.

The product is specifically suited for applications in electrical automation, heavy industrial control, and electrical testing equipment.

Packaged and sourced from China, this Cynergy3 DBT71210 relay provides a trustworthy solution to complex relay switching demands. Explore a wide range of precise relays in the EnvMart catalog for all your industrial and electrical circuit requirements.
