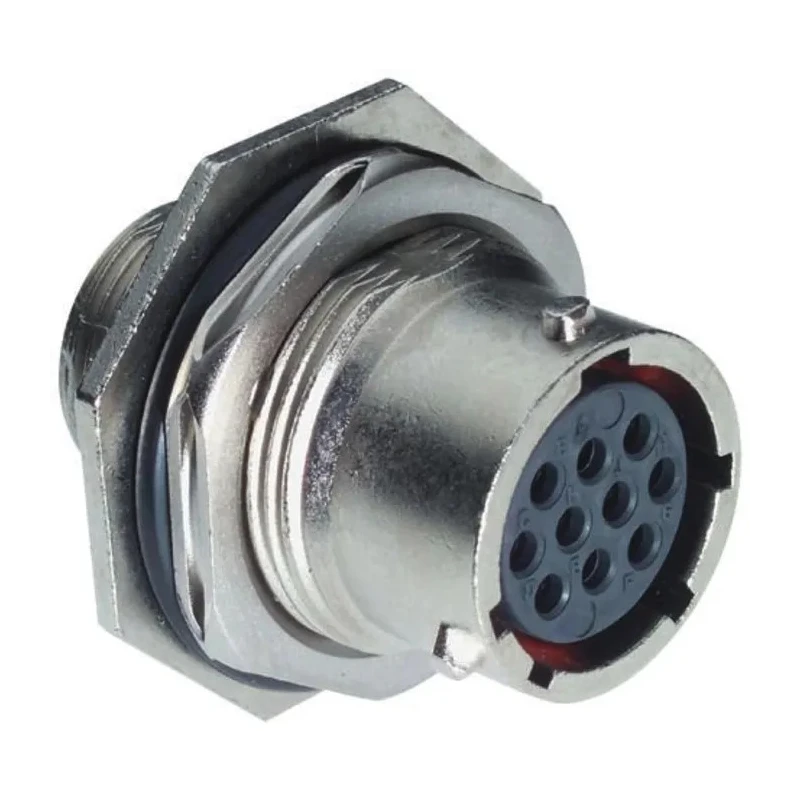

Souriau Sunbank by Eaton MIL Spec Circular Connector Female, Female Contacts, Panel Mount, Straight UT0W71626SH6

Souriau Sunbank by Eaton UT0W71626SH6 MIL Spec Circular Connector is a highly reliable panel mount connector featuring 26 female contacts with shell size 16 and straight orientation. This connector operates efficiently across a wide temperature range of -40°C to 105°C, making it suitable for demanding industrial, military, aerospace, and manufacturing applications requiring robust and secure electrical connections.

The connector housing is made of durable zinc alloy with a nickel plating finish that provides excellent corrosion resistance and mechanical strength. It employs a bayonet mating type ensuring quick and secure connections with a locking ring that guarantees durability for up to 500 mating cycles. The 5-pin guiding feature facilitates easy and correct insertion between plug and base.

This MIL-DTL-26482 standard-compliant connector supports crimp termination for effective cable attachment and ensures IP68 sealing to resist dust and water ingress, ideal for harsh operating environments. It is part of the UTO/UTOW series, known for their high-density contacts and compatibility with series TRIM TRIO and UTP connectors.

The connector is especially suited for industrial power, aerospace, military, and manufacturing sectors requiring high-grade, environmentally sealed connectors. It supports high-density female contacts for advanced connection needs while ensuring exceptional electrical performance.

Operates from -40°C to 105°C for durability under varying environmental conditions. Zinc alloy housing with nickel plating for superior corrosion protection. Bayonet locking mechanism delivering secure connection with ease of mating.

Conforms to the MIL-DTL-26482 military standard. Crimp termination suitable for robust cable attachments. IP68 sealed connectors prevent dust and moisture ingress. High density 26 female contacts ensuring compact reliable connections.

Compatible with TRIM TRIO and UTP series connectors offering interchangeability.

Set includes the UTO Straight 26 Way Panel Mount Mil Spec Circular Connector designed for demanding industrial and military usage. Suitable for panel mounting, it provides exceptional mechanical and environmental protection to maintain signal integrity and connection reliability. Explore this and other circular connectors for precision electronic component applications at EnvMart.
