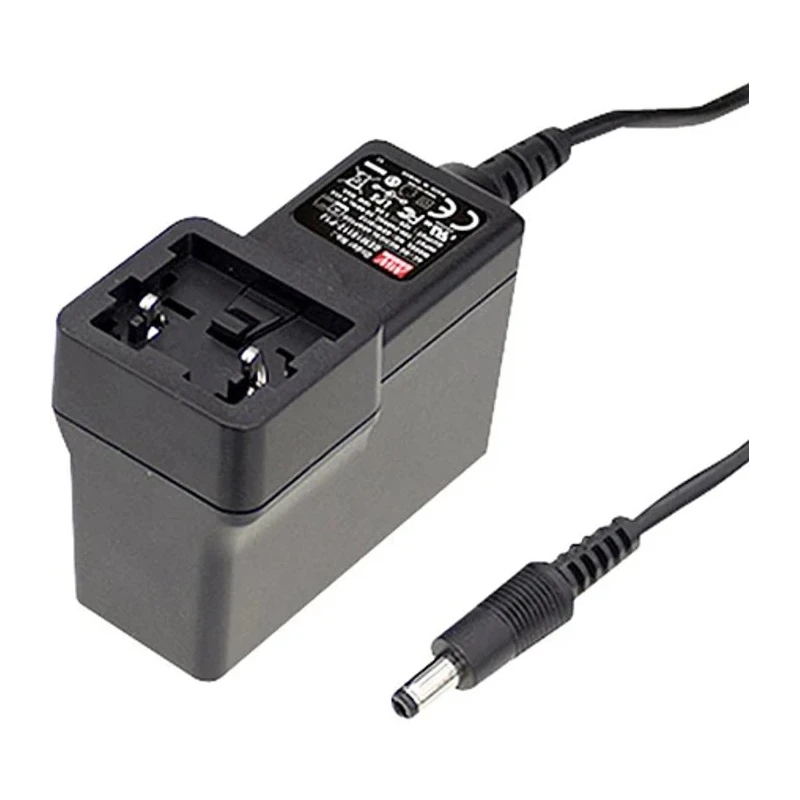

MEAN WELL AC/DC Adapter 264V AC Input 5 V DC Output 5 A GEM40I05-P1J

MEAN WELL GEM40I05-P1J AC/DC Adapter is a reliable and compact plug-in power supply designed for medical and industrial equipment requiring strict safety standards. This adapter accepts a wide universal input voltage range from 100 V AC to 264 V AC, suitable for Australia, EU, UK, and US AC plug types, making it ideal for global applications.

With a stable DC output voltage of 5 V and maximum output current of 5 A, it supports various medical devices including blood glucose meters, blood pressure monitors, inhalers, nebulizers, sleep apnea apparatus, and portable medical equipment.

Constructed with a flame retardant plastic case rated at 94V-0, this adapter ensures protection against electrical hazards. It is certified to meet IEC 60950-1, UL 60950-1, CE, and ANSI/AAMI ES60601-1 medical safety standards, assuring compliance with stringent industry requirements.

The design includes advanced features such as short circuit, overload, and over voltage protection, with an extremely low leakage current under 100 μA, making it a Class II power supply without an earth pin.

The compact size (75.5mm wide, 56.2mm deep, and 39.1mm length) and lightweight build allow for convenient transportation and installation, accompanied by a 1 m cable length for versatile connectivity.

Operating temperatures up to 70°C assure dependable operation even in demanding industrial and medical environments. Additionally, the unit complies with energy efficiency standards EISA 2007/DoE and EU ErP, with energy-saving features during standby mode.

Supports multiple AC plug types for Australia, EU, UK, and US regions. Operates within an input voltage range of 100 V AC to 264 V AC. Compact dimensions 75.5mm (W) x 56.2mm (D) x 39.1mm (L). Certified IEC 60950-1, UL 60950-1, CE, and medical safety standards.

Includes protections for short circuit, overload, and over voltage. Low leakage current under 100 μA for enhanced safety. Flame retardant plastic enclosure rated 94V-0. Energy efficient with level VI compliance and low standby consumption.

This MEAN WELL adapter is suited for healthcare facilities, laboratories, industrial plants, and commercial medical device applications. Explore additional AC/DC Adapters and power supply options with MEAN WELL and other top brands in the EnvMart catalog.
