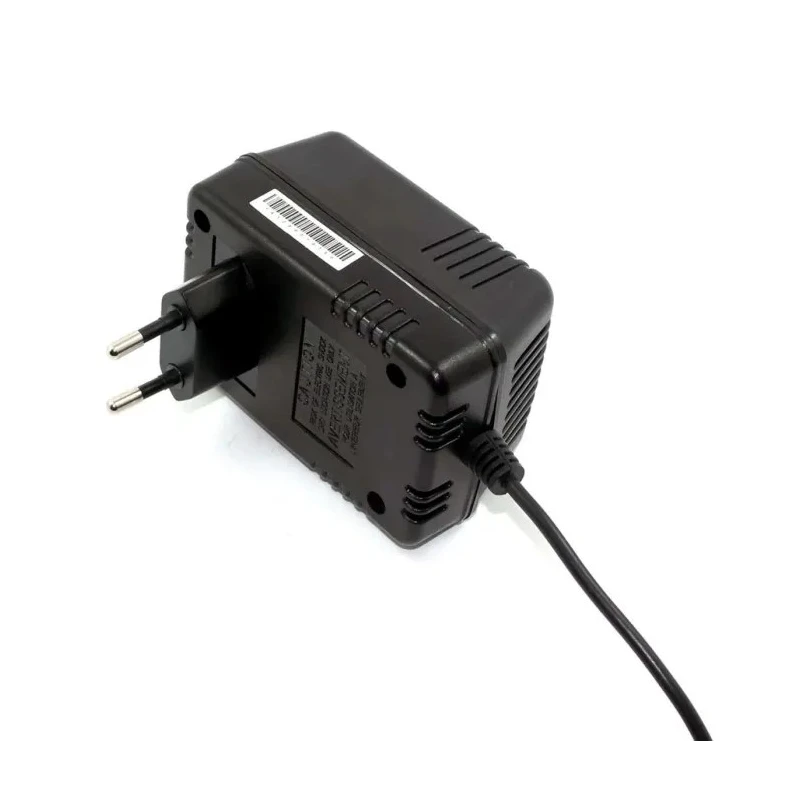

RS PRO 11 W 12V DC Output AC/DC Adapter Type C 2.1 x 5.5 x 12 mm Centre Positive 139-1790

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 11 W 12V DC Output AC/DC Adapter Type C 2.1 x 5.5 x 12 mm Centre Positive 139-1790

Name: RS PRO 11 W 12V DC Output AC/DC Adapter Type C 2.1 x 5.5 x 12 mm Centre Positive 139-1790
Brand: RS PRO
SKU: 94471



Category AC/DC Adapters Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Power	11W
Length	89mm
Model	139-1790
Depth	51mm
Cable Length	1.8m
Width	60mm
Series	KRE
Maximum Operating Temperature	40°C
Sub Type	AC/DC Adapter
Minimum Operating Temperature	-20°C
Plug Type	Type C
Number of outputs	1
Maximum Input Voltage	240V ac
Output Voltage	12V dc
Standards/Approvals	IEC/EN 61558
Minimum Input Voltage	230V ac
Output Connector Type	2.1 x 5.5 x 12 mm Centre Positive
Input Connector Type	EU Plug
Adapter Current	900mA
Energy Efficiency Level	IV
Regulated/Unregulated	Unregulated

Key Features

Features a 2.1 x 5.5 x 12 mm centre positive output connector.
Includes a 1.8 m cable length for flexible placement.
Operates efficiently in temperatures from -20°C to 40°C.
Unregulated output suitable for various electronic applications.
Equipped with an EU Type C plug for wide compatibility.
Rated for input voltages between 230V AC to 240V AC.
Energy Efficiency Level IV rated to minimize power consumption when idle.
Designed with a compact size of 89mm length, 60mm width, and 51mm depth.

Product Description

RS PRO 139-1790 is a high-quality AC/DC adapter delivering 11 W power and 12 V DC output, designed for charging and powering various electronic equipment. It features a Type C EU plug and a 2.1 x 5.5 x 12 mm centre positive connector, making it suitable for many everyday devices such as radios, antennas, and lamps.

This adapter offers an unregulated output current of 900 mA and operates efficiently within a temperature range of -20°C to 40°C. Its cable length of 1.8 meters allows flexible placement near power sources. The compact and lightweight design, measuring 89 mm by 60 mm by 51 mm and weighing approximately 450 g, supports easy installation in tight spaces.

The power supply meets IEC/EN 61558 certification standards, ensuring high safety and durability. Its Energy Efficiency Level IV rating means it uses less than 0.5 W of power when no device is connected, contributing to energy savings. Rated for input voltages from 230 V to 240 V AC with a frequency range of 50 to 60 Hz, it is designed for global compatibility.

This RS PRO adapter is ideal for industrial, commercial, and laboratory use where reliable DC power supply is needed for low to medium power electronics. It supports single output operation, providing stable power without medical approvals for sensitive medical equipment.

Features a 2.1 x 5.5 x 12 mm centre positive output connector. Includes a 1.8 m cable for extended reach. Operates between -20°C and 40°C for versatile environments. Unregulated output suited for general electronics. Complies with IEC/EN 61558 safety standards.

Energy Efficiency Level IV certified for reduced power use. Supports 230 V to 240 V input voltage range. Compact size and light weight enhance portability. Single output with 900 mA maximum current. Explore the RS PRO AC/DC Adapters and power supplies category at EnvMart for more reliable electronic components designed for industrial and commercial applications.
