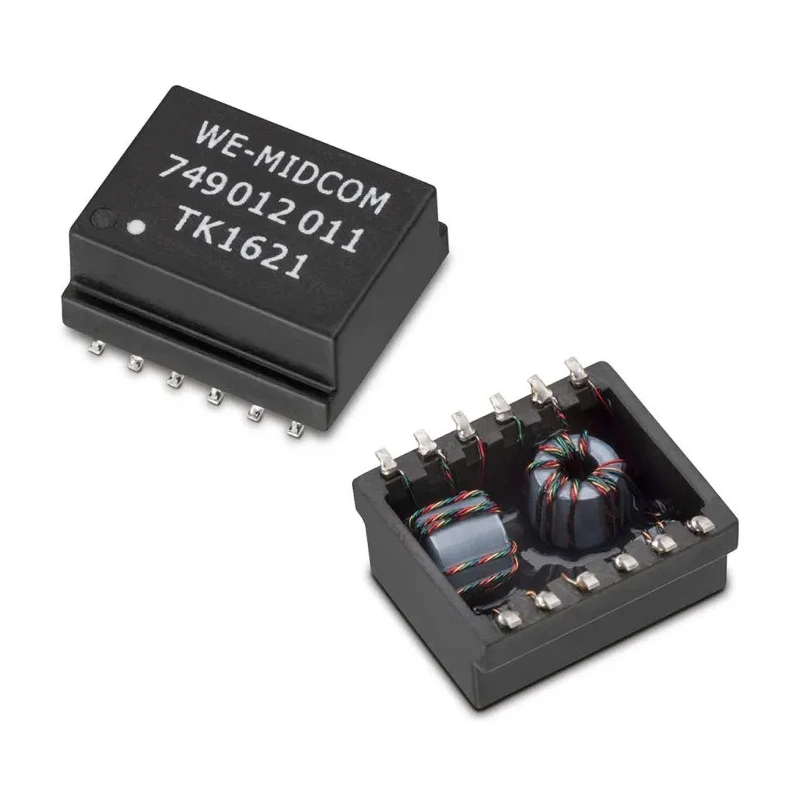

Wurth Elektronik Surface LAN Ethernet Transformer, 1 Output, 350μH Inductance, Surface Mount, 12.7mm Length 9.52mm 749012011
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Length | 12.7mm |
| Depth | 5.8mm |
| Width | 9.52mm |
| Mount Type | Surface |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet |
| Number of outputs | 1 |
| Inductance | 350μH |
| Standards/Approvals | RoHS, UL 94 V-0, IEEE 802.3at |
| Isolation Voltage | 1500V ac |
| Insertion Loss | -1dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
Key Features
- Compliant with IEEE 802.3, IEEE 802.3af, and IEEE 802.3at standards.
- Surface mount design ensures compact assembly with dimensions of 12.7mm length, 9.52mm width, and 5.8mm depth.
- Operates efficiently within a temperature range from -40°C to 85°C.
- Provides isolation voltage up to 1500V AC for enhanced safety.
- Low insertion loss rated at -1dB for signal integrity.
- Termination type is solder to ensure secure connections.
- Compatible with Ethernet ICs from Intel, AMD, Globespan, and Realtek.
- Ideal for 10/100/1000 Mbps LAN, routers, switches, and hubs.
Product Description
Wurth Elektronik 749012011 Surface LAN Ethernet Transformer is a high-performance electronic component designed for Ethernet and Power over Ethernet (PoE) applications. Featuring a compact surface mount design, this transformer supports 10/100/1000 Mbps LAN speeds and complies with key IEEE standards such as IEEE 802.3, 802.3af, and 802.3at.
Equipped with 1 output and a precise 1:1 turns ratio, the transformer ensures minimal insertion loss of -1dB, preserving signal integrity during transmission. Its surface mount footprint with dimensions of 12.7mm length, 9.52mm width, and 5.8mm depth enables compact PCB layouts.
The component operates reliably over a broad temperature range from -40°C to 85°C, making it suitable for diverse industrial, networking, and electronic environments. It provides an isolation voltage rating of 1500V AC, enhancing the safety and performance of Ethernet communication devices.
Constructed to meet RoHS compliance and UL 94 V-0 flammability standards, this transformer is suitable for use in hubs, routers, switches, and other data communication equipment. Compatibility with major Ethernet IC manufacturers including Intel, AMD, Globespan, and Realtek enhances design flexibility.
Compliant with IEEE 802.3, IEEE 802.3af, and IEEE 802.3at standards. Surface mount transformer with 12.7mm x 9.52mm x 5.8mm footprint. Impedance inductance of 350μH supports reliable Ethernet signal transmission. Operating temperature range of -40°C to 85°C for diverse environments.
1500V AC isolation voltage for signal safety. Low insertion loss of -1dB preserves signal quality. Solder termination type for secure installation. Compatible with Intel, AMD, Globespan, and Realtek Ethernet ICs. Ideal for 1 Gigabit Ethernet applications including hubs, routers, and switches.
Manufactured in China with RoHS and UL 94 V-0 certifications.
This LAN Ethernet transformer is essential for industrial, commercial networking infrastructure, and telecommunications systems requiring efficient data transmission and electrical isolation. Engineers and system designers can rely on Wurth Elektronik's quality and compliance for enhanced networking performance. Explore more products in LAN Ethernet Transformers category at EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates efficiently within a temperature range from -40°C to 85°C.
The transformer has a compact surface mount design with dimensions of 12.7mm in length, 9.52mm in width, and 5.8mm in depth.
The inductance value is 350μH, which supports reliable Ethernet signal transmission.
It provides an isolation voltage rating of 1500V AC, enhancing the safety of Ethernet communication devices.
It is compliant with IEEE 802.3, IEEE 802.3af, and IEEE 802.3at standards, as well as RoHS and UL 94 V-0 certifications.
The termination type is solder, ensuring secure connections during installation.
It has a low insertion loss rated at -1dB, which helps preserve signal integrity during transmission.
This model features 1 output, designed for efficient signal transmission.
The transformer has a precise 1:1 turns ratio, which is beneficial for maintaining signal quality.
This transformer is manufactured in China.
