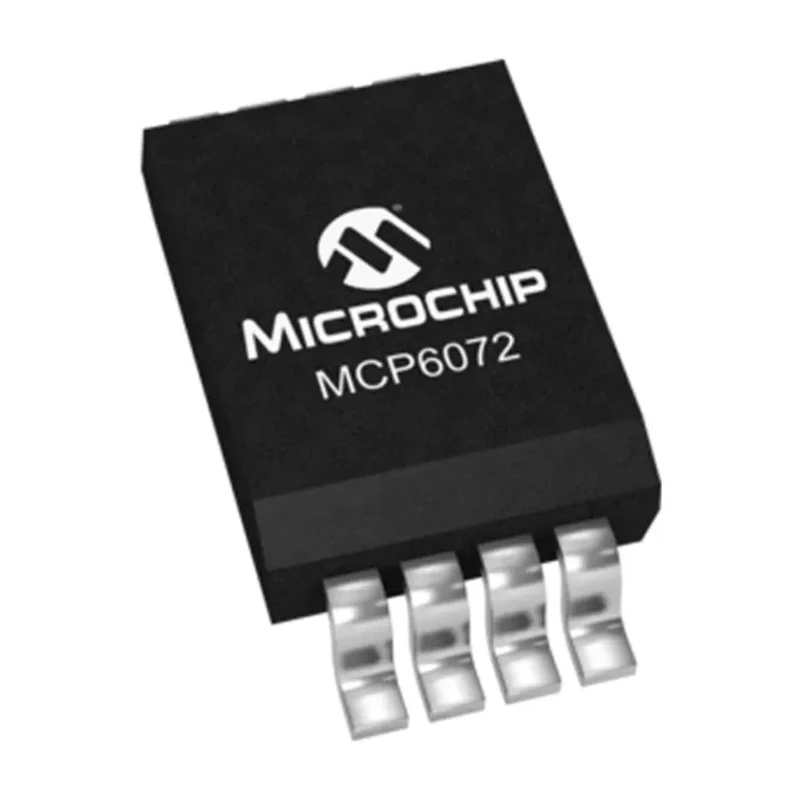

Microchip Operational Amplifier SOIC 8-Pin 6V 1.2 MHz Gain Bandwidth MCP6072-E/SN
Specifications
| Country of Origin | China |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | MCP6072-E/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6071 |
| Output Current | 28mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 100 pA |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 1 pA |
Key Features
- Low input offset voltage of ±150 μV maximum ensures high accuracy.
- Rail-to-rail input and output operation maximizes input and output voltage range.
- Unity gain stable design suitable for precision applications.
- Low quiescent current consumption of 110 μA per amplifier enables battery-powered use.
- Wide operating voltage range from 1.8V to 6V supports flexible system designs.
- Dual-channel configuration with 8-pin surface mount SOIC package.
- Slew rate of 0.5 V/μs for moderate-speed signal amplification.
- Operating temperature range from -40°C to 125°C suitable for automotive and industrial environments.
Product Description
Microchip MCP6072-E/SN is a dual-channel operational amplifier with a gain bandwidth product of 1.2 MHz housed in a compact 8-pin SOIC surface-mount package. Operating at voltages up to 6V, this op amp features low input offset voltage of ±150 μV and rail-to-rail input and output capabilities, making it ideal for high precision, battery-powered, and portable devices.
This device is unity gain stable and offers a low typical quiescent current of 110 μA per amplifier, optimizing power efficiency. The slew rate of 0.5 V/μs allows it to handle moderate-speed signal processing.
Designed for robustness, the MCP6072 operates over a wide ambient temperature range from -40°C to 125°C, and complies with the automotive AEC-Q100 standard, making it suitable for automotive and industrial electronics applications.
The device is available in surface-mount SOIC packaging with small form factor dimensions of 4.9 mm length, 3.9 mm width, and 1.25 mm height. It is well-suited for use in instrumentation, signal conditioning, and battery-operated systems requiring precise amplification with low noise and power consumption.
Low input offset voltage maximizes accuracy in signal amplification. Rail-to-rail inputs and outputs extend usable input and output voltage ranges. Unity gain stable to ensure stable performance in voltage follower configurations.
Low quiescent current supports energy-efficient circuit designs. Wide operating voltage range provides design flexibility. Automotive-grade reliability confirmed by AEC-Q100 standard compliance.
This Operational Amplifier supports multiple applications including industrial instrumentation, consumer electronics, and automotive control systems. Microchip’s MCP6072-E/SN offers a reliable, high-performance solution for precision operational amplification needs.
Explore more semiconductor and amplifier products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.2 MHz.
It operates within a voltage range of 1.8V to 6V.
The maximum output current is 28 mA.
This model operates within a temperature range of -40°C to 125°C.
The dimensions are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
It comes in an 8-pin SOIC surface mount package.
The input offset voltage is ±150 μV maximum, ensuring high accuracy.
Yes, it complies with the automotive AEC-Q100 standard, making it suitable for automotive applications.
The typical quiescent current consumption is 110 μA per amplifier.
The slew rate is 0.5 V/μs, suitable for moderate-speed signal amplification.
This operational amplifier features a dual-channel configuration.
It complies with RoHS standards and the automotive AEC-Q100 standard.
